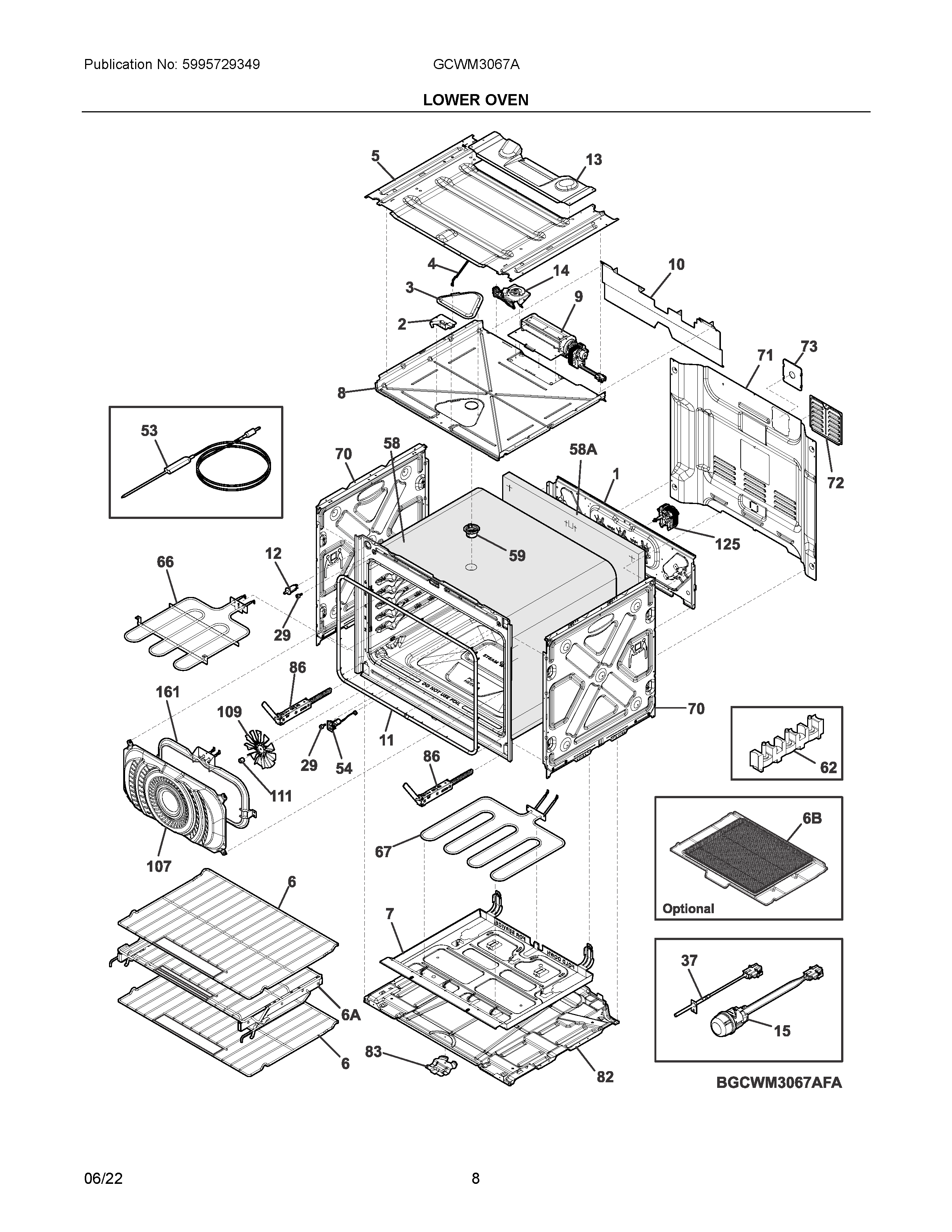

GCWM3067AFA 04 – LOWER OVEN

GCWM3067AFA 04 – LOWER OVEN

Written by

in

GCWM3067AFA 04 – LOWER OVEN

Products

PositionProduct
NIC316205500 Frigidaire Oven Nut
NIA5304526532 Frigidaire Screw
NIA5304526234 Frigidaire Screw
NI5304530449 Frigidaire Harness
NI5304535368 Frigidaire Harness
NI387856311 Frigidaire Screw
NIA139022101 Frigidaire Insulation
NIAWCI 387872717
NIAWCI 5304528293
NIB316001017 Frigidaire Screw
NI5304530450 Frigidaire Anti Tip
NIWCI 5304530389
NI5304526514 Frigidaire Harness
NI5304526500 Frigidaire Harness
1PANEL
25304526367 Frigidaire Latch Door
3COVER, VENT
45304526368 Frigidaire Rod Assembly
55304526313 Frigidaire Panel
65304536394 Frigidaire Rack-Flat Peregrine
6A5304526506 Frigidaire Range Assembly Rack
6BFRIG AIR FRY TRAY PEREGRINE
7TRAY, HIDDEN BAKE
8SHIELD, BOTTOM DUCT
95304530369 Frigidaire Blower Assembly
10SHIELD, INSULATION, LOWER OVEN, DWO
115304526242 Frigidaire Seal
12808136601 Frigidaire Oven Switch
13SHIELD, BAFFLE, LOWER DWO, COOLING
145304526552 Frigidaire Motor Assembly
155304530343 Frigidaire Lamp Assembly
29316517600 Frigidaire Oven Spacer
375304526310 Frigidaire Probe
53807822611 Frigidaire Probe
54RECEPTACLE, MEAT PROBE
58INSULATION, OVEN, WRAPPER
58AINSULATION, OVEN, REAR
59TUBE, VENT CATALYST
625304409888 Frigidaire Oven Terminal Block with Hardware
665304536847 Frigidaire Element-Broil 6Pass
675304535239 Frigidaire Element-Hidden Bk 2
70PANEL
715304526330 Frigidaire Shield Assembly
725304526588 Frigidaire Cover
73COVER, ANTI VIBRATION
82PLATE-EXT BOTTOM SC
83BRACKET, BASE PANEL, MOUNT
865304526280 Frigidaire Hinge
1075304526365 Frigidaire Cover
1095304525455 Frigidaire Blade
111561231207 Frigidaire Nut
1255304526375 Frigidaire Motor
1615304526565 Frigidaire Element
