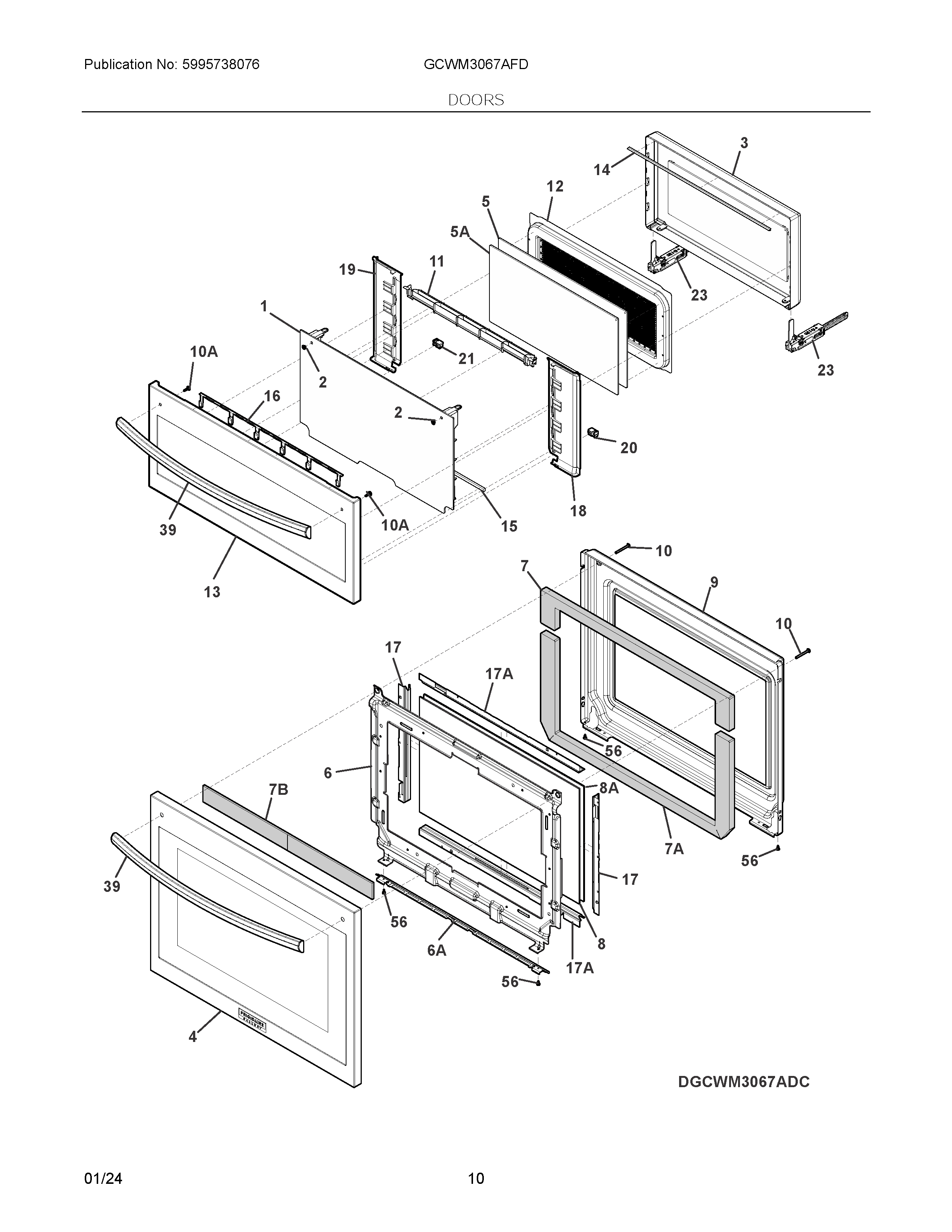

GCWM3067AFD 05 – DOORS

GCWM3067AFD 05 – DOORS

Written by

in

GCWM3067AFD 05 – DOORS

Products

PositionProduct
NI387856311 Frigidaire Screw
NISCREW, PT T20, 4 X 10, (8)
1555118433 Frigidaire Range Door Glass
2SPACER, DOOR HANDLE
3561626486 Frigidaire Door Frame
45304526649 Frigidaire Door Assembly
5A555033602 Frigidaire Glass
5807625502 Frigidaire Glass
65304526282 Frigidaire Shield
6A5304530443 Frigidaire Bracket
7A5304526655 Frigidaire Insulation Assembly
75304526656 Frigidaire Insulation
7B5304526530 Frigidaire Insulation
8A5304536639 Frigidaire Glass
85304526387 Frigidaire Microwave Glass
95304530464 Frigidaire Liner Assembly
10A5303310510 Frigidaire Oven Screw
10SCREW, TRUS T20, 10-44 X 1.870, BLACK, HANDLE MTG.
11A06645500 Frigidaire Cover Assembly
12555040920 Frigidaire Inner Door Assembly
135304530413 Frigidaire Door Assembly
14808082001 Frigidaire Gasket
15808140001 Frigidaire Tape
165304525161 Frigidaire Cover
17A5304526285 Frigidaire Bracket
175304526284 Frigidaire Bracket
18COVER
19COVER
205304525159 Frigidaire Stopper
215304525160 Frigidaire Stopper
23A06683602 Frigidaire Hinge
39HANDLE,DOOR,STAINLESS
565304526234 Frigidaire Screw
