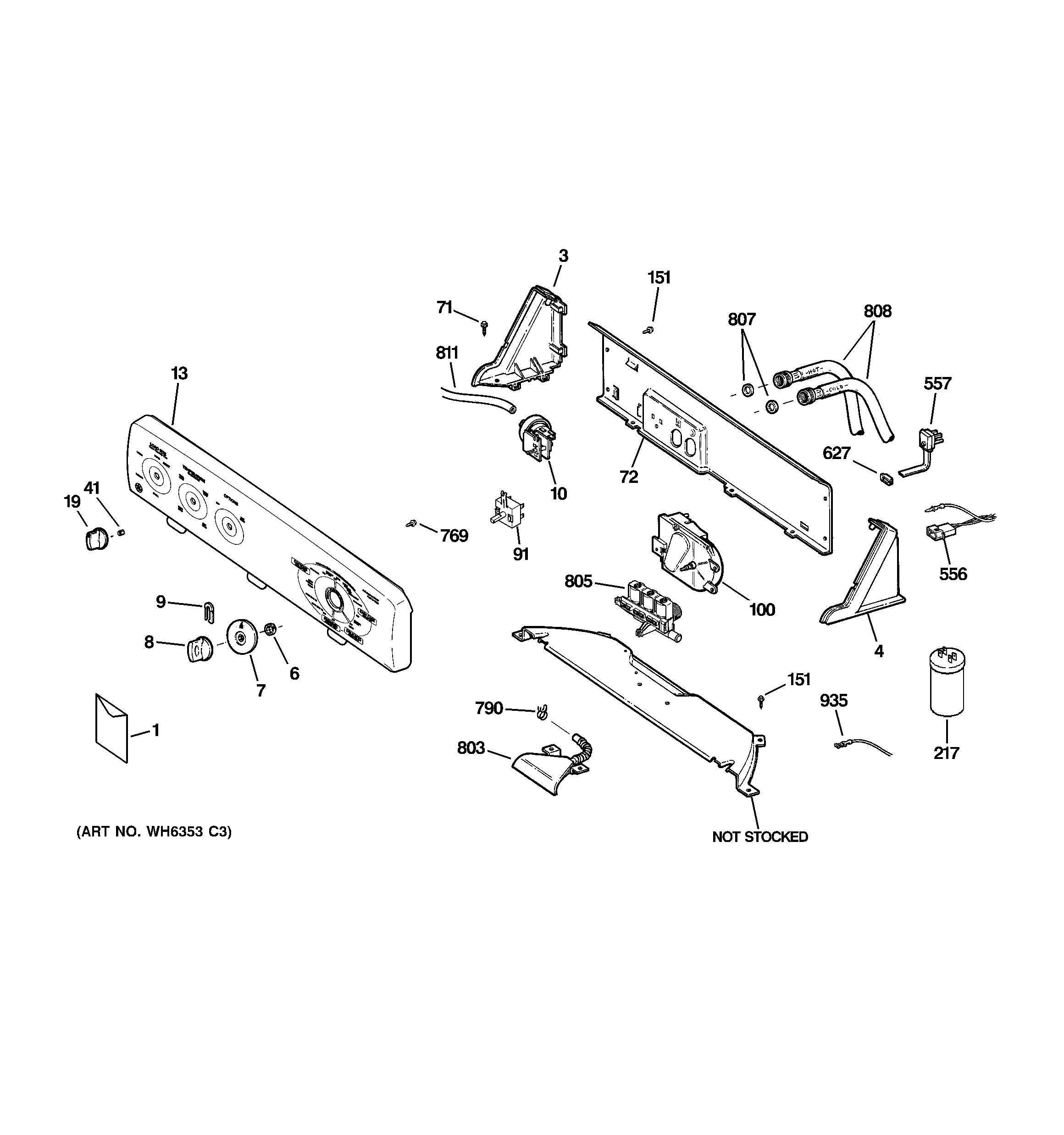

GCWP1005M1CC CONTROLS & BACKSPLASH

GCWP1005M1CC CONTROLS & BACKSPLASH

Written by

in

GCWP1005M1CC CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 31-15441
1GEN 31-16642
1GEN 49-90399-1
3GEN WH42X10700
4GEN WH42X10699
6WH02X10093 GE Washer Compression Ring
7WH11X10048 GE Dial Assembly
8WH01X10311 GE Control Knob Assembly Bisque
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10476 GE Washer Water Level Pressure Switch
13GEN WH42X10912
19WE01X20379 GE Washing Machine Bisque Control Knob Assembly
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10146
91WH12X10498 GE Washer Rotary Switch
100WH12X10536 GE Washer Timer
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
217WH12X10462 GE Washer Capacitor
556GEN WH12X0497
557GEN WH19X10068
627GEN WH12X10208
769WR01X10196 GE Refrigerator Screw 8-18 HID02
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WH13X23974 GE Washer Water Inlet Valve
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
