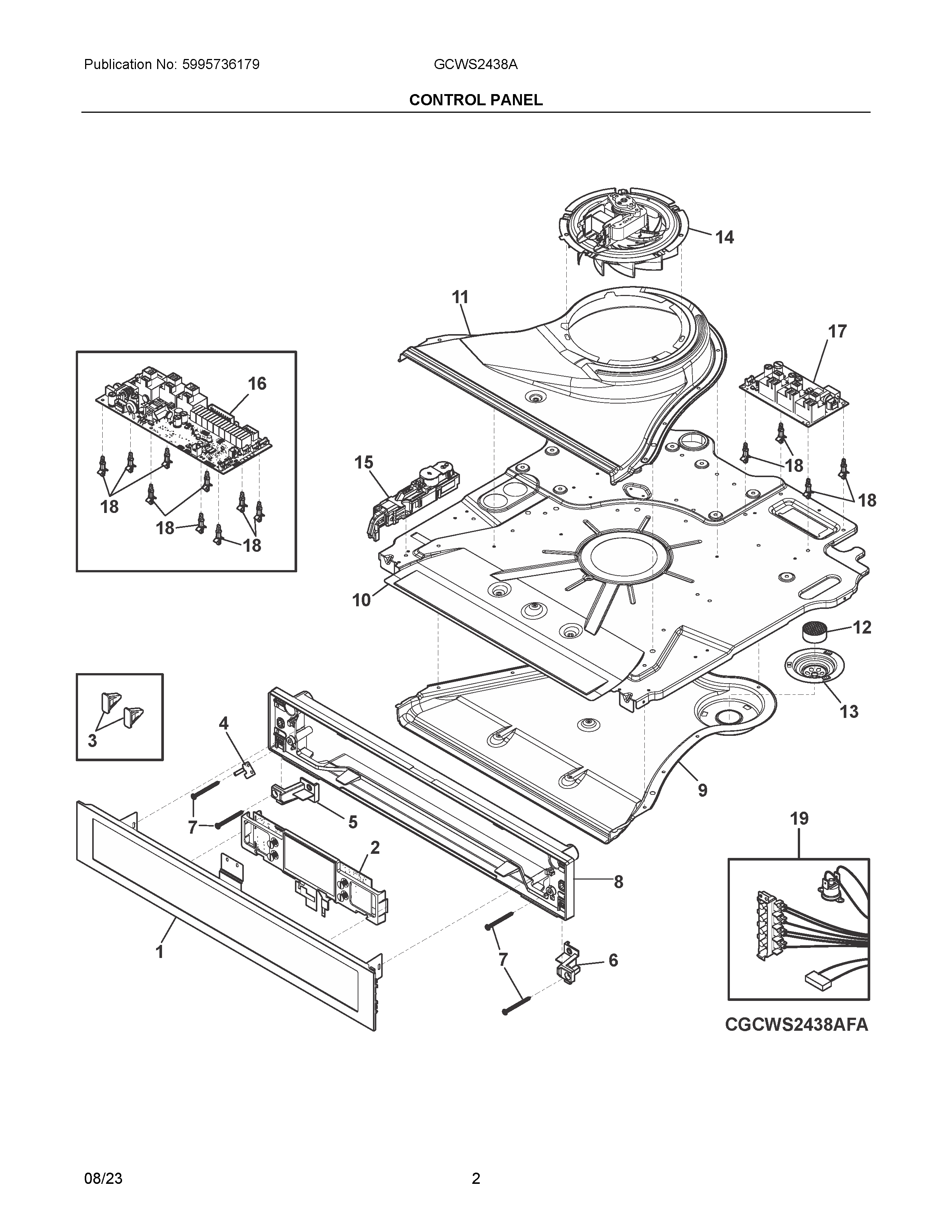

GCWS2438ABA 02 – CONTROL PANEL

Products

Position	Product
NI	Screw, #2 PH AB MUSH, #8 x 1/2, black
NI	Screw, PAN PHIL, #6 x 9.5, zinc
NI	SCREW, PAN #2PH, #8 X 50
NI	HARNESS, WIRING, USER INTERFACE, PUX
NI	SCREW, HEX PH2 T/CUT, 6-20 X 9.3
NIA	HARNESS, WIRING, DOOR LOCK
NI	Screw, HEX/Multi, #8 x 8mm
1	CONTROL PANEL, ASSEMBLY, BLACK TRIM
2	CONTROLLER, ELECTRONIC, PUX, OVEN
3	SPACER, CONTROLLER
4	BRACKET, GROUNDING
5	CAP, MOUNT, LH FRAME
6	CAP, MOUNT, RH FRAME
7	SCREW, W/HD PH NIB, #8 X 12, SILVER
8	TRIM, SURROUND, CONTROL
9	PANEL, AIR DUCT, LOWER, & FLUE COVER
10	PANEL, AIR DUCT, MIDDLE
11	PANEL, AIR DUCT, UPPER
12	CATALYST, OVEN VENT
13	RETAINER, OVEN CATALYST
14	5304533760 Frigidaire Blower Assembly
15	5304533761 Frigidaire Door Lock
16	5304533762 Frigidaire PC Board
17	5304533763 Frigidaire PC Board
18	CLIP, STANDOFF, PC BOARD
19	5304533764 Frigidaire Wiring Harness Asse
