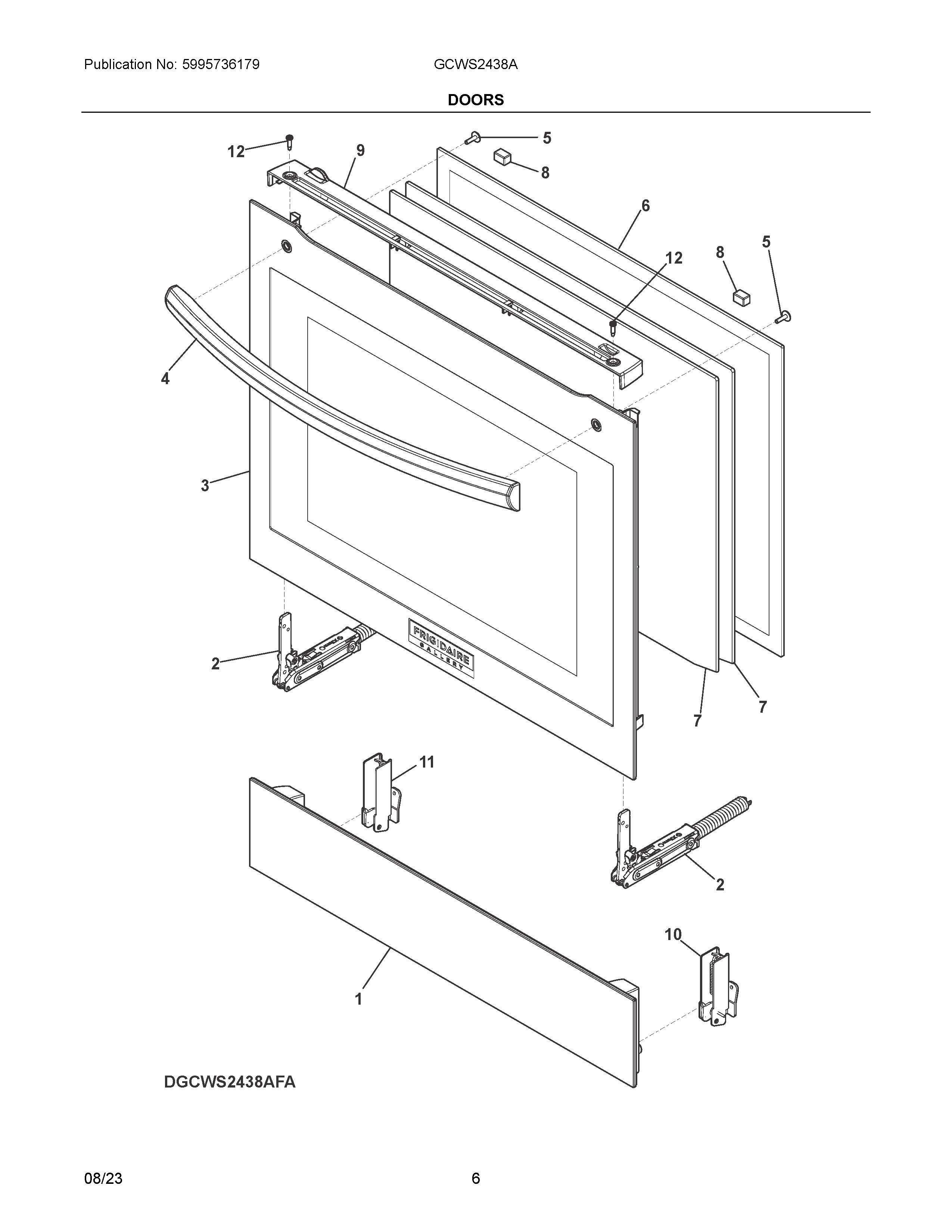

GCWS2438AFA 04 – DOORS

Products

Position	Product
NIA	Screw, PH2 HEX 1/4, M4 x 5, black, door hinge
NI	Screw, #2 PH AB MUSH, #8 x 1/2, black
NI	Screw, PH2 nylon washr, #8 x 1/2
1	DOOR ASSEMBLY, OUTER, STAINLESS, GRILL BOX
2	5304533780 Frigidaire Hinge
3	5304533790 Frigidaire Door Assembly
4	HANDLE, DOOR, STAINLESS
5	Screw, T20 PAN, m4 x 16, handle
6	4055549747 Frigidaire Glass
7	4055549739 Frigidaire Glass
8	SPACER, RUBBER, DOOR GLASS
9	5304533783 Frigidaire Trim
10	HINGE, DOOR, RH-W/SPRING, GRILL
11	HINGE, DOOR, LH-NO SPRING, GRILL
12	SCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
