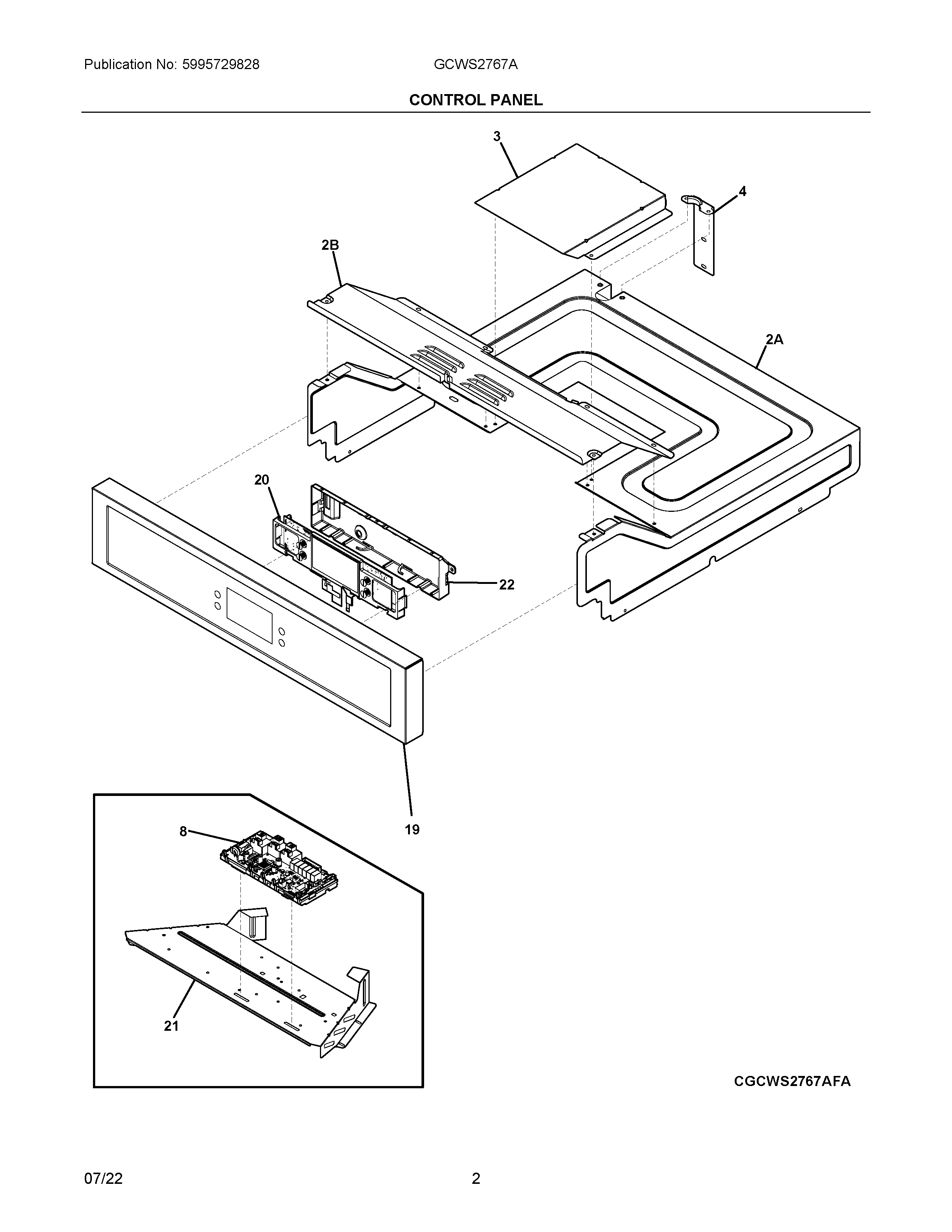

GCWS2767ADA 02 – CONTROL PANEL

GCWS2767ADA 02 – CONTROL PANEL

Written by

in

GCWS2767ADA 02 – CONTROL PANEL

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIB316001017 Frigidaire Screw
NIA318165800 Frigidaire Oven Door Glass Spacer with Screw
NIAWCI 387872717
NIHARNESS, WIRING, LOW VOLTAGE
2B139003702 Frigidaire Cover
2A139003603 Frigidaire Cover
3318577801 Frigidaire Oven Box
4BRACKET, CONDUIT
85304536397 Frigidaire Ovc M Wo Board
195304525828 Frigidaire Control Panel
20CONTROL-EOC PUX E S
21BRACKET, MOUNTING
225304523582 Frigidaire Housing
