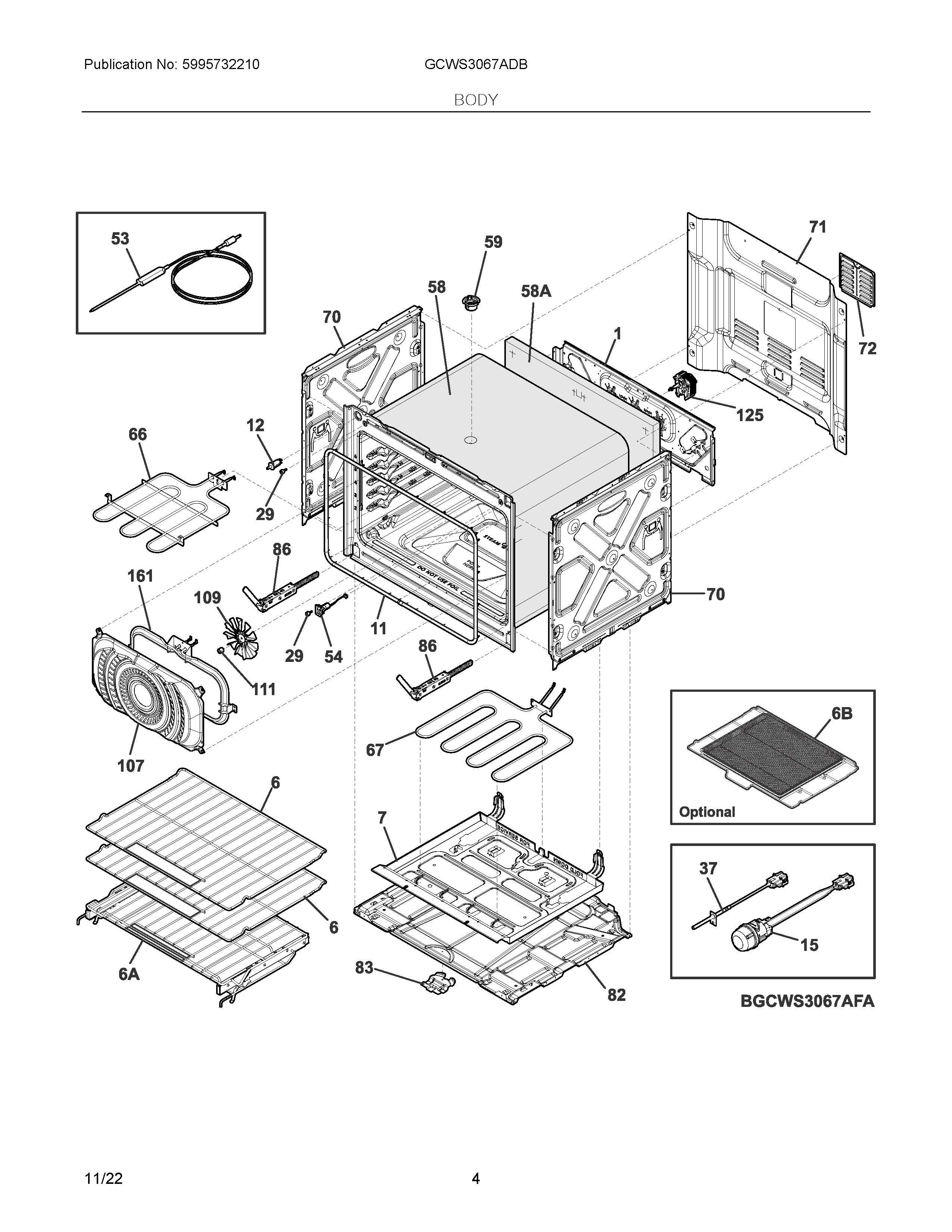

GCWS3067ADB 03 – BODY

Products

Position	Product
NI	5304533451 Frigidaire Harness
NI	5304530450 Frigidaire Anti Tip
NIA	5304526532 Frigidaire Screw
NIA	WCI 387872717
NI	5304526516 Frigidaire Harness
NI	5304532099 Frigidaire Harness
NI	387856311 Frigidaire Screw
NI	5304535368 Frigidaire Harness
NIA	5304526234 Frigidaire Screw
1	PANEL
6	5304536394 Frigidaire Rack-Flat Peregrine
6A	5304526506 Frigidaire Range Assembly Rack
6B	FRIG AIR FRY TRAY PEREGRINE
7	TRAY, HIDDEN BAKE
11	5304526242 Frigidaire Seal
12	808136601 Frigidaire Oven Switch
15	5304530343 Frigidaire Lamp Assembly
29	316517600 Frigidaire Oven Spacer
37	5304526310 Frigidaire Probe
53	807822611 Frigidaire Probe
54	RECEPTACLE, MEAT PROBE
58A	INSULATION, OVEN, REAR
58	INSULATION, OVEN, WRAPPER
59	TUBE, VENT CATALYST
66	5304536847 Frigidaire Element-Broil 6Pass
67	5304535239 Frigidaire Element-Hidden Bk 2
70	PANEL
71	5304526329 Frigidaire Shield
72	5304526588 Frigidaire Cover
82	PLATE-EXT BOTTOM SC
83	BRACKET, BASE PANEL, MOUNT
86	5304526280 Frigidaire Hinge
107	5304526365 Frigidaire Cover
109	5304525455 Frigidaire Blade
111	561231207 Frigidaire Nut
125	5304526375 Frigidaire Motor
161	5304526565 Frigidaire Element
