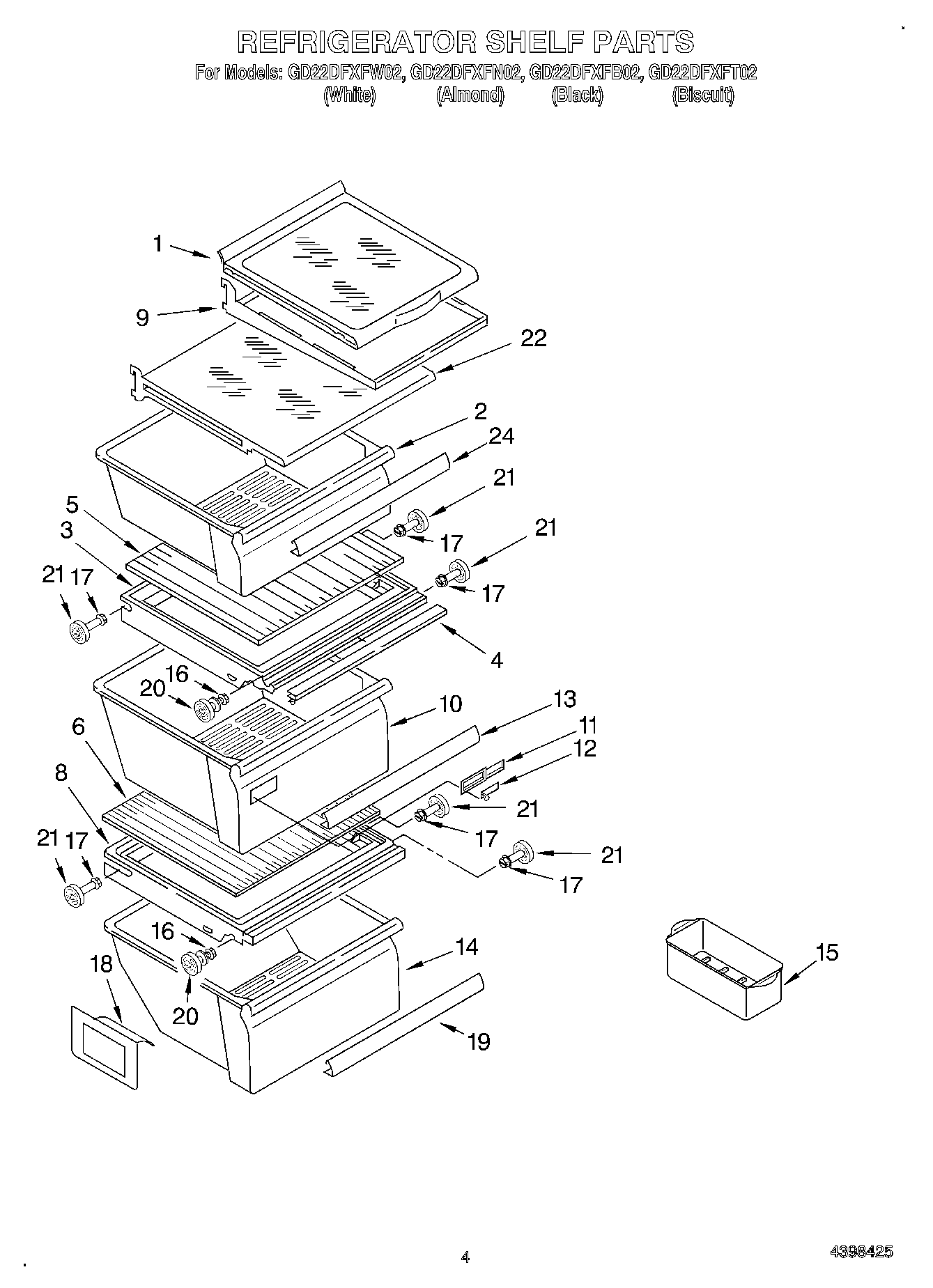

GD22DFXFW02 03 – REFRIGERATOR SHELF

GD22DFXFW02 03 – REFRIGERATOR SHELF

Written by

in

GD22DFXFW02 03 – REFRIGERATOR SHELF

Products

PositionProduct
1WPW10141748 Whirlpool Refrigerator Glass Shelf
2W11497323 Whirlpool Snack Pan
4Gasket, Front
5W10864399 Whirlpool Glass Shelf
8W10508993 Whirlpool Refrigerator Cover Pan
9Frame, Shelf
10PAN-CRISPR
11WP2179343 Whirlpool Refrigerator Control Body
12WP2179342 Whirlpool Refrigerator Slide
14WP2188664 Whirlpool Dishwasher Meat Crisper Pan
15W10136387A Whirlpool Refrigerator Egg Container
16WP3-24004-109 Whirlpool Refrigerator Screw
17WP3400806 Whirlpool Screw
182179350 Whirlpool Refrigerator Deflector
19WP2179234 Whirlpool Refrigerator Pan Trim
20W11223328 Whirlpool Refrigerator Shelf Stud
21WP2196483 Whirlpool Refrigerator Shelf Stud
22Shelf, Snack Bin
24WP2179243 Whirlpool Refrigerator Pan Trim
