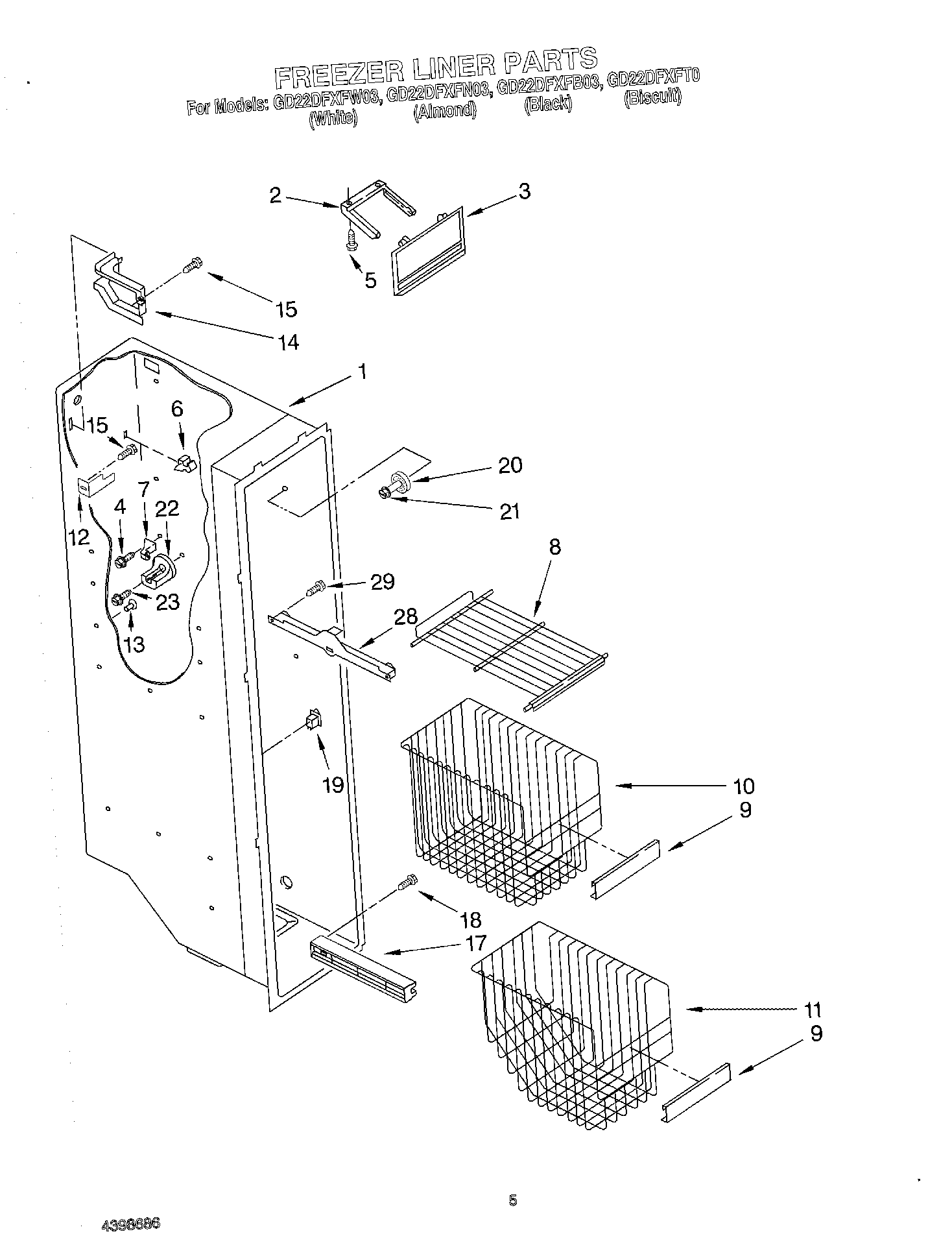

GD22DFXFW03 04 – FREEZER LINER

GD22DFXFW03 04 – FREEZER LINER

Written by

in

GD22DFXFW03 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8WP2174249K Whirlpool Refrigerator Wire Shelf
92195904K Whirlpool Refrigerator Basket Trim
10Basket, Tall
11Freezer Bin
12Bracket, Fill Tube
13Grommet
14Cover, Wiring
15SCREW
17Slide, Basket (Left Side (2))
17Slide, Basket (Right Side (2))
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP2196483 Whirlpool Refrigerator Shelf Stud
21WP3400806 Whirlpool Screw
22Stud, Rear
23W10142289 Whirlpool Air Conditioner Screw
28W10845585 Whirlpool Refrigerator Track
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
