GD22DFXFW03 12 – CONTROL

GD22DFXFW03 12 – CONTROL

Written by

in

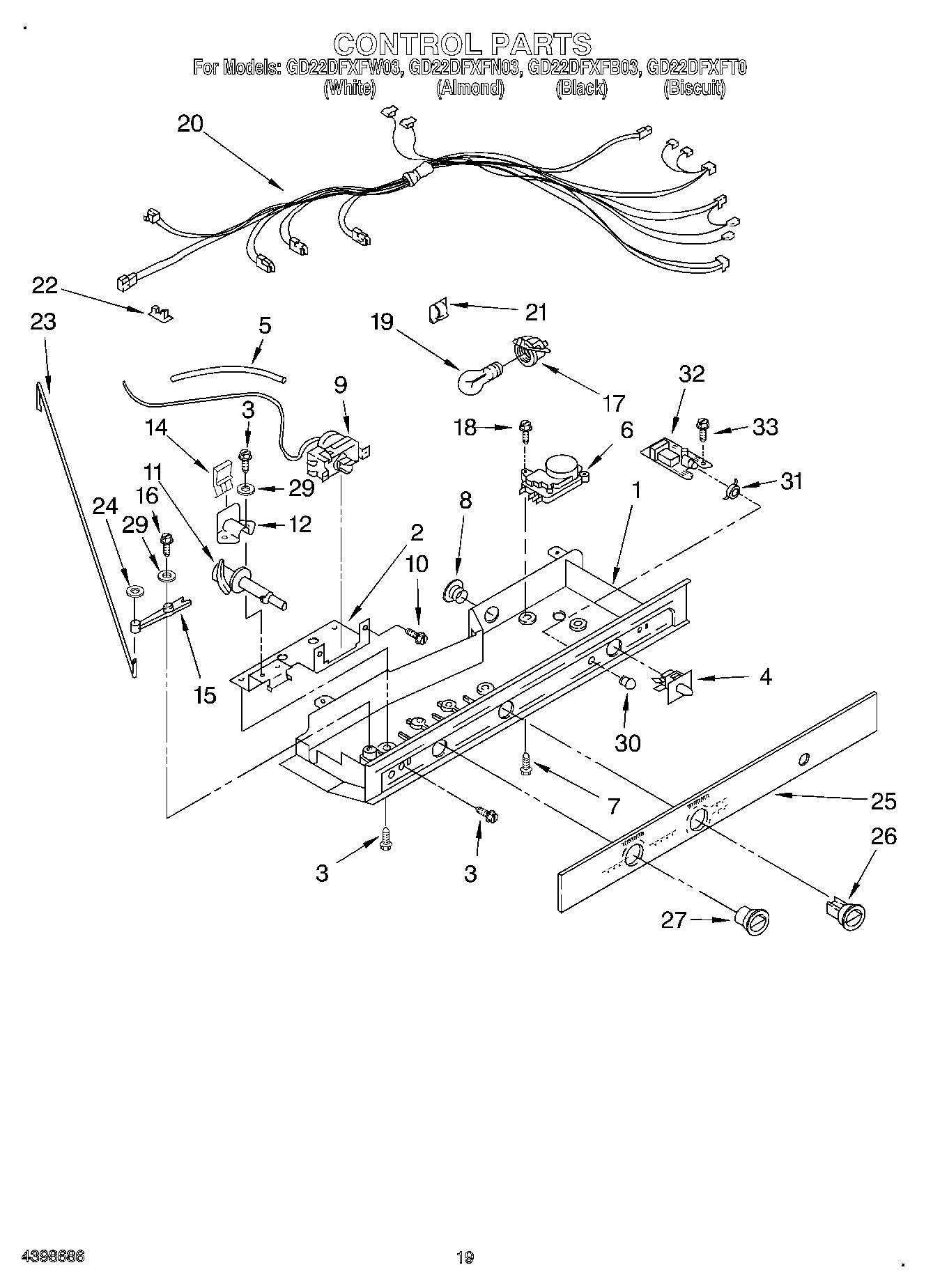

GD22DFXFW03 12 – CONTROL

Products

Position	Product
1	Control Box
2	Mounting Bracket
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	Defrost Timer (10 Hr.)
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	489392 Whirlpool Refrigerator Screw
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	2182111 Whirlpool Refrigerator Thermal Knob
27	Knob, Air Control
29	489203 Whirlpool Refrigerator Washer
30	COVER, LIGHT LENS
31	Retainer, Light Lens
32	P.C. Board Filter Indicator
33	4392899 Whirlpool Biscuit Touch-Up Paint
33	350942 Whirlpool Spray Paint
33	212643 Whirlpool Refrigerator Permagum Sealer
33	WP965173 Whirlpool Dishwasher Screw
33	Almond (Uncut)
33	WP72107 Whirlpool Touchup
33	CEMENT, ALUMILASTIC (1 1/4 OZ.)
33	350930 Whirlpool White Spray Paint
33	799344 Whirlpool Refrigerator Paint
33	72017 Whirlpool Appliance Touch-Up Paint White
33	WPW10312301 Whirlpool Refrigerator Ice Container
33	4392901 Whirlpool Biscuit Spray Paint
33	511873 Whirlpool Refrigerator Paint
33	Enamel, Black (1 Qt. Uncut)
33	WPL 799833
33	WPL 876029
33	TAPE, VINYL (3/4 X 108“)
33	Torx Key
33	285006 Whirlpool Spray
33	72032 Whirlpool Touch Up Paint Black
33	WP542638 Whirlpool Refrigerator Grease
33	WP505587 Whirlpool Refrigerator Sealer
33	WP503695 Whirlpool Refrigerator Sealer
33	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
33	876370 Whirlpool Refrigerator Insulation
33	833938 Whirlpool Refrigerator Terminal
33	606755 Whirlpool Refrigerator Bag
33	350956 Whirlpool Spray Assembly
