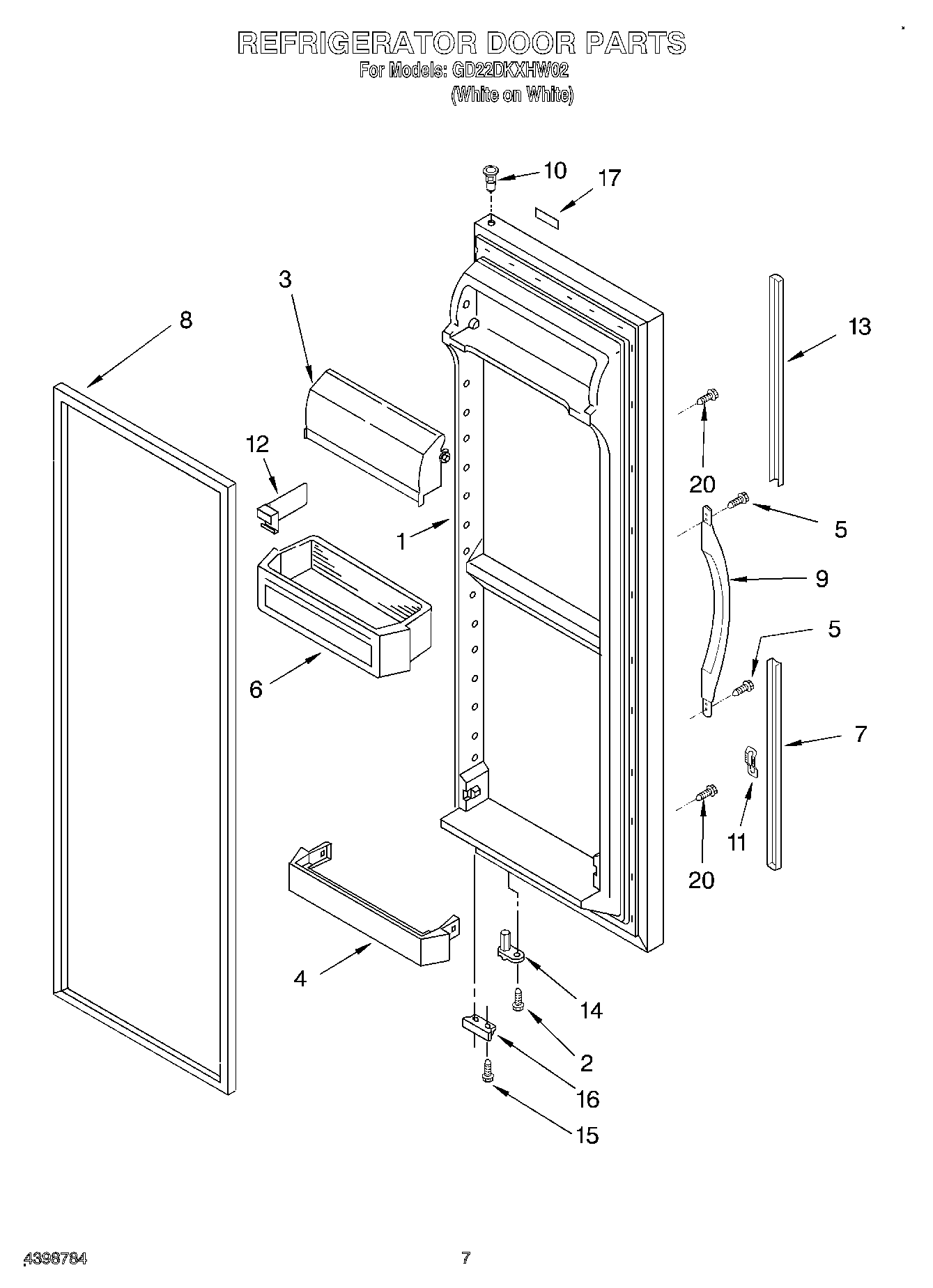

GD22DKXHW02 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
2	WP3400012 Whirlpool Refrigerator Screw
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489491 Whirlpool Refrigerator Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Extension, Bottom (White)
8	2159073 Whirlpool Refrigerator Door Gasket
9	Handle, Center (White)
10	WP2182181 Whirlpool Refrigerator Thimble
11	WP2195327 Whirlpool Refrigerator Clip
12	Divider, Bin
13	Extension, Top (White)
14	WP2182179 Whirlpool Cam Closer
15	WP999367 Whirlpool Refrigerator Screw
16	Bracket, Door Stop (Chrome)
17	Nameplate (White)
20	WP3400852 Whirlpool Refrigerator Screw
