GD22DQXFN00 12 – CONTROL

GD22DQXFN00 12 – CONTROL

Written by

in

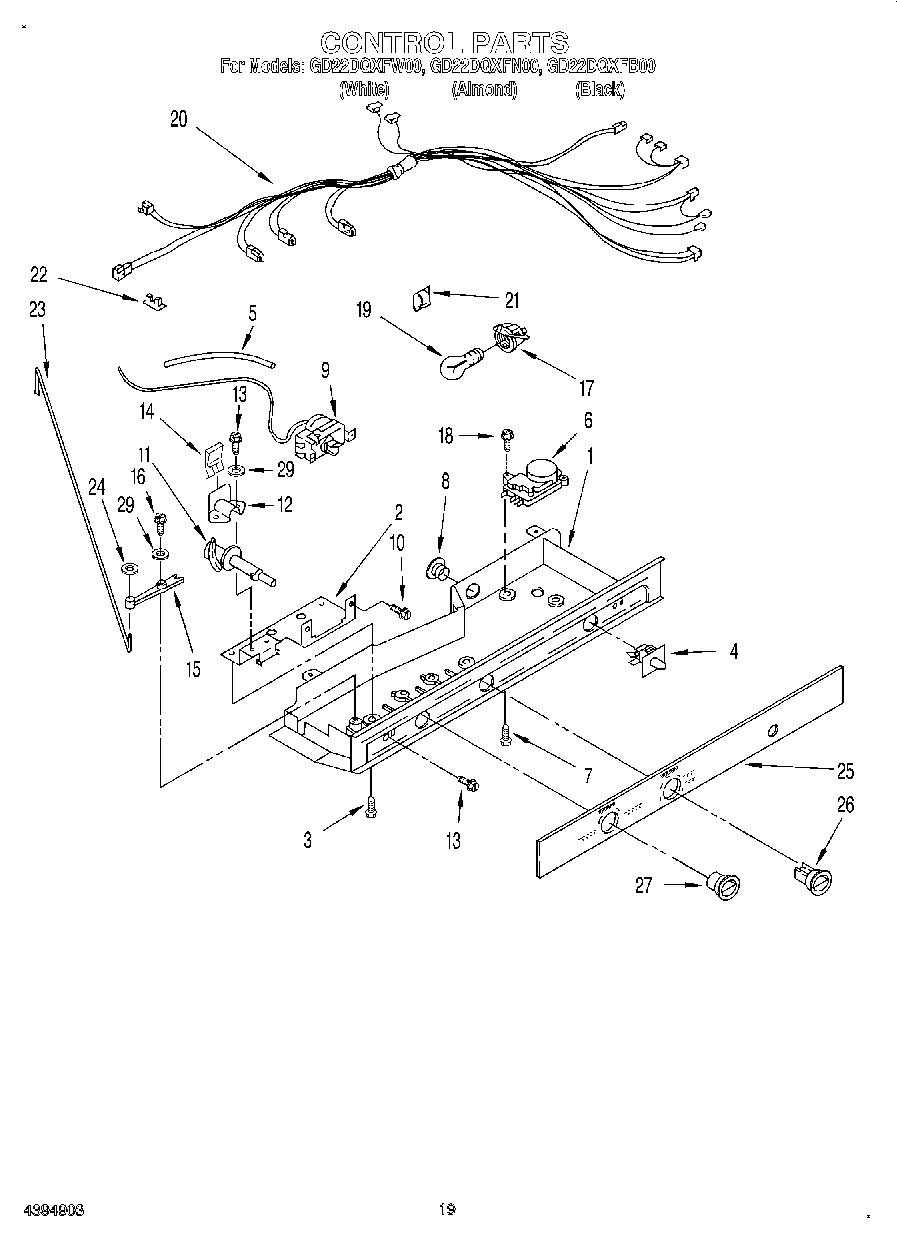

GD22DQXFN00 12 – CONTROL

Products

Position	Product
	Torx Key
	Modular Icemaker Service Sheet
	WPL LIT2186434
	WPL LIT2194921
	WPL LIT2198384
1	Control Box
2	Mounting Bracket
3	Screw (2)
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	Defrost Timer (10 Hr.)
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
13	WP489478 Whirlpool Refrigerator Screw
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	489392 Whirlpool Refrigerator Screw
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	2182111 Whirlpool Refrigerator Thermal Knob
27	Knob, Air Control
29	WPW10312301 Whirlpool Refrigerator Ice Container
29	350956 Whirlpool Spray Assembly
29	Almond (Uncut)
29	WP72107 Whirlpool Touchup
29	72017 Whirlpool Appliance Touch-Up Paint White
29	799344 Whirlpool Refrigerator Paint
29	350930 Whirlpool White Spray Paint
29	WP542638 Whirlpool Refrigerator Grease
29	212643 Whirlpool Refrigerator Permagum Sealer
29	WP505587 Whirlpool Refrigerator Sealer
29	WP503695 Whirlpool Refrigerator Sealer
29	876370 Whirlpool Refrigerator Insulation
29	CEMENT, ALUMILASTIC (1 1/4 OZ.)
29	Enamel, Black (1 Qt. Uncut)
29	WPL 799833
29	WPL 876029
29	833938 Whirlpool Refrigerator Terminal
29	285006 Whirlpool Spray
29	72032 Whirlpool Touch Up Paint Black
29	606755 Whirlpool Refrigerator Bag
29	511873 Whirlpool Refrigerator Paint
29	TAPE, VINYL (3/4 X 108“)
29	350942 Whirlpool Spray Paint
29	489203 Whirlpool Refrigerator Washer
