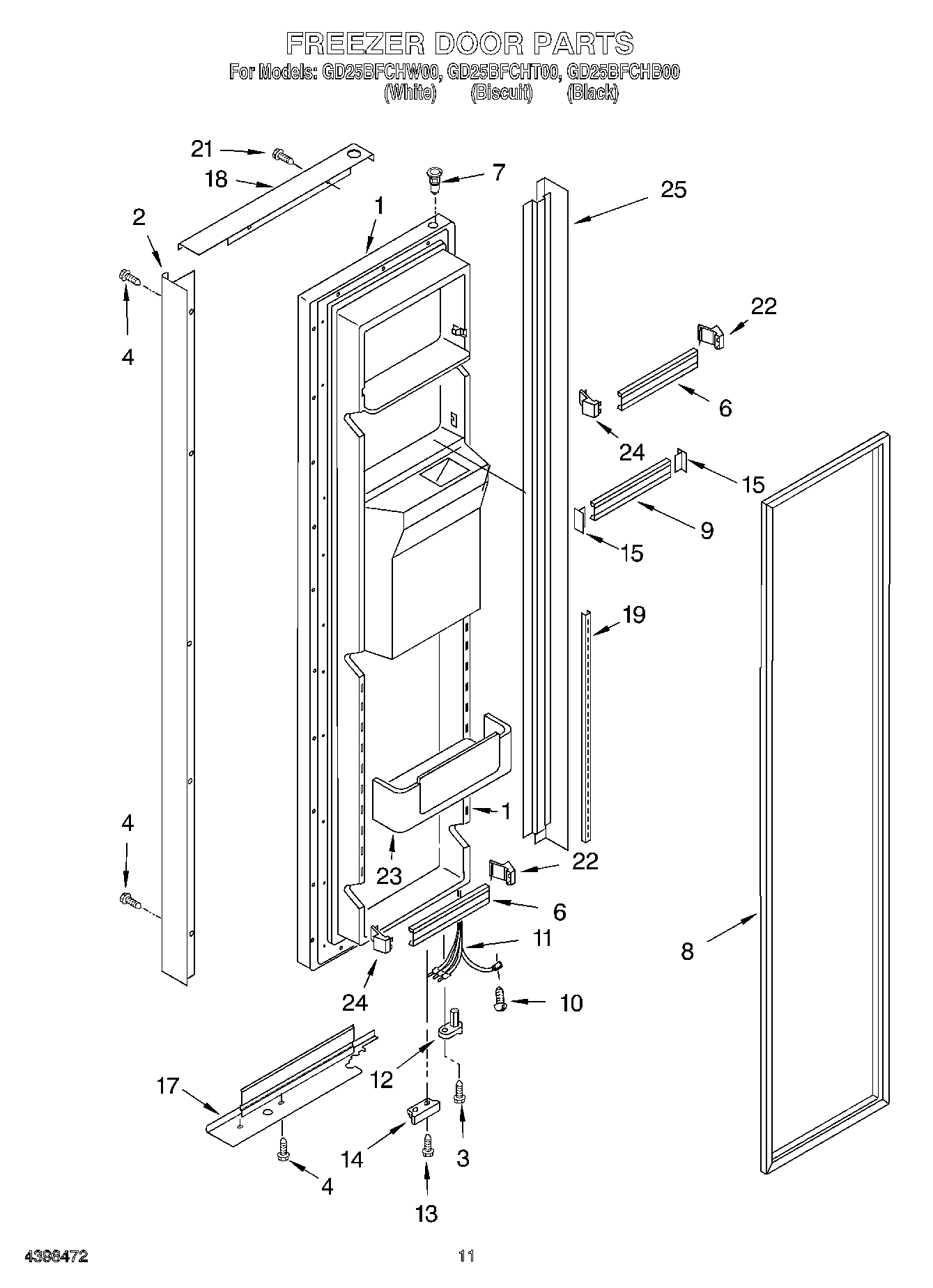

GD25BFCHT00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
2Handle (White)
2Handle (Black)
2Handle (Biscuit)
3WP3400012 Whirlpool Refrigerator Screw
4WP3196557 Whirlpool Screw
6Trim, Door Shelf
7WP2182181 Whirlpool Refrigerator Thimble
8Door Gasket, Magnetic (Mist Beige)
8Door Gasket, Magnetic (Black)
9Trim, Door Shelf
10WP489128 Whirlpool Refrigerator Screw
11Wiring Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Chrome)
14Bracket, Door Stop (Black)
15WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
17Trim, Door (Bottom) (Biscuit)
17Trim, Door (Bottom) (White)
17Trim, Door (Bottom) (Black)
18Trim, Door (Top) (White)
18Trim, Door (Top) (Biscuit)
18Trim, Door (Top) (Black)
19Ladder, Shelf Assembly (2)
21Screw
22ENDCAP
23Bin, Door (2)
24WP2195917K Whirlpool Refrigerator Endcap
25Trim, Door (Hinge Side) (White)
25Trim, Door (Hinge Side) (Biscuit)
25Trim, Door (Hinge Side) (Black)
