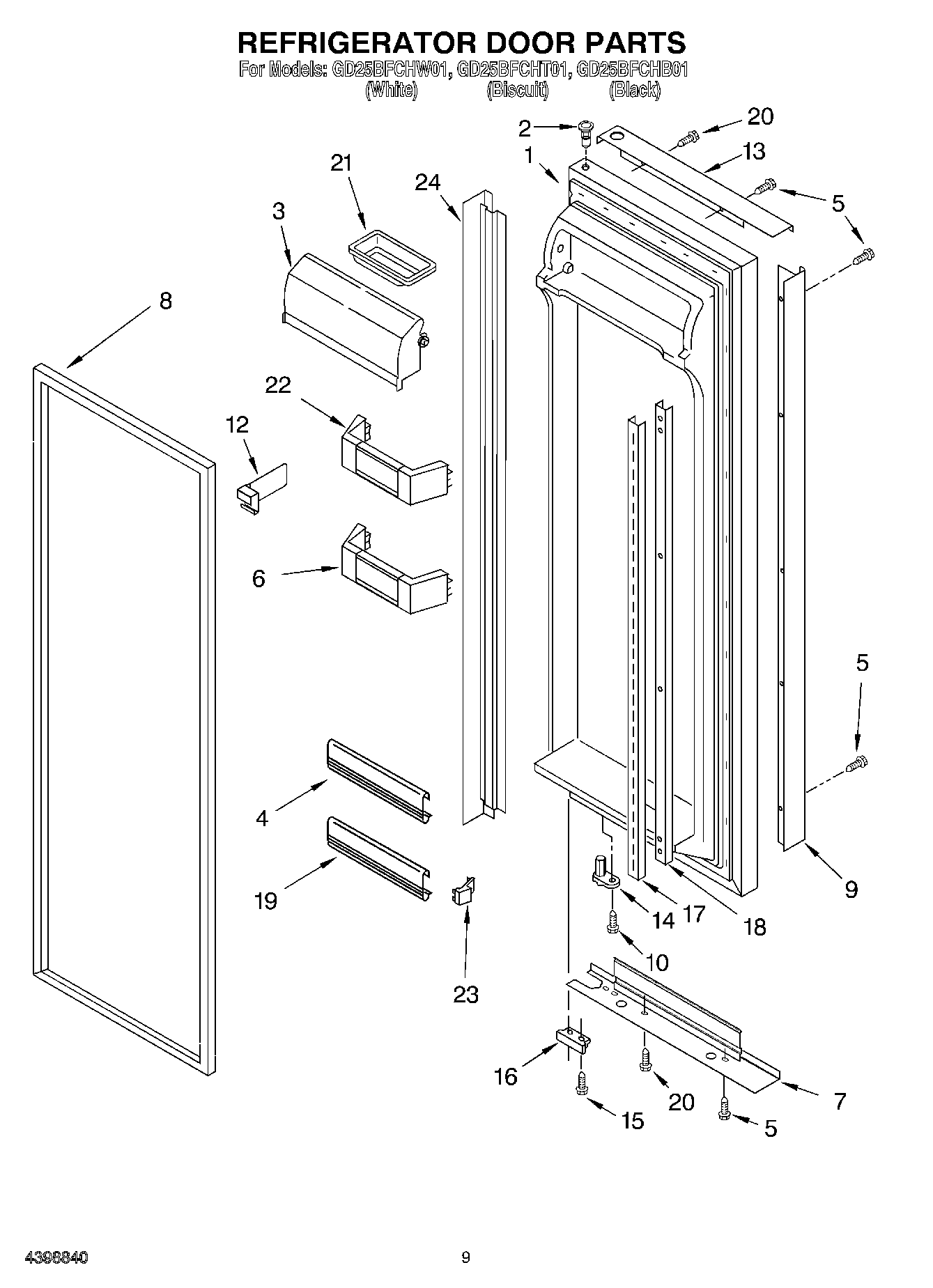

GD25BFCHT01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8) (Black)
1	Refrigerator Door (Includes Item No.8) (Biscuit)
1	Refrigerator Door (Includes Item No.8) (White)
2	WP2182181 Whirlpool Refrigerator Thimble
3	WP2256101 Whirlpool Dairy Door
4	WP2256010 Whirlpool Door Shelf Trim
5	WP3196557 Whirlpool Screw
6	WP2257017 Whirlpool Refrigerator Cantilever Bin
7	Trim, Door (Bottom) (Black)
7	Trim, Door (Bottom) (Biscuit)
7	Trim, Door (Bottom) (White)
8	Door Gasket, Magnetic (Service) (Black)
8	Door Gasket, Magnetic (Service) (Mist Beige)
9	Handle (Black)
9	Handle (Biscuit)
9	Handle (White)
10	WP3400012 Whirlpool Refrigerator Screw
12	Divider, Bin
13	Trim, Door (Top) (Biscuit)
13	Trim, Door (Top) (White)
13	Trim, Door (Top) (Black)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Black)
16	Bracket, Door Stop (Chrome)
17	Retainer, Shelf Ladder (2)
18	Ladder, Shelf (2)
19	Trim, Door Shelf
20	Screw
21	Butter Tray
22	Bin, Door (3)
23	ENDCAP
24	Trim, Door (Hinge Side) (Black)
24	Trim, Door (Hinge Side) (Biscuit)
24	Trim, Door (Hinge Side) (White)
