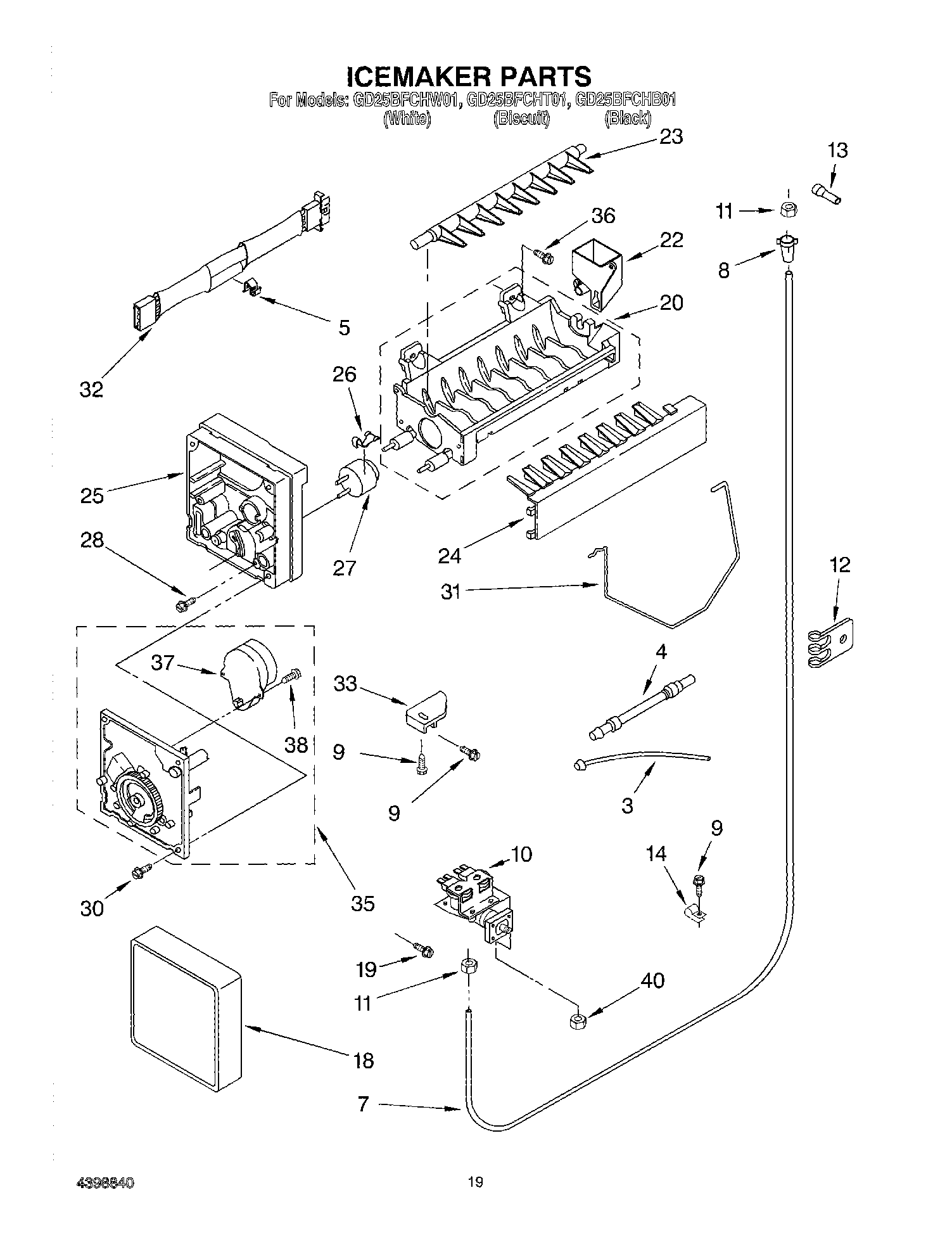

GD25BFCHT01 12 – ICE MAKER

GD25BFCHT01 12 – ICE MAKER

Written by

in

GD25BFCHT01 12 – ICE MAKER

Products

Position	Product
NI	350930 Whirlpool White Spray Paint
NI	350942 Whirlpool Spray Paint
NI	4392899 Whirlpool Biscuit Touch-Up Paint
NI	4392901 Whirlpool Biscuit Spray Paint
NI	511873 Whirlpool Refrigerator Paint
NI	606755 Whirlpool Refrigerator Bag
NI	833938 Whirlpool Refrigerator Terminal
NI	876370 Whirlpool Refrigerator Insulation
NI	WP503695 Whirlpool Refrigerator Sealer
NI	WP542638 Whirlpool Refrigerator Grease
NI	Torx Key
NI	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
NI	TAPE, VINYL (3/4 X 108“)
NI	CEMENT, ALUMILASTIC (1 1/4 OZ.)
NI	Enamel, Black (1 Qt. Uncut)
NI	WPL 799833
NI	WPL 876029
NI	212643 Whirlpool Refrigerator Permagum Sealer
NI	4317943 Whirlpool Refrigerator Ice Maker Assembly
NI	Ice Crusher Mechanism Assembly
NI	72032 Whirlpool Touch Up Paint Black
NI	285006 Whirlpool Spray
NI	Ice Contianer Assembly
NI	799344 Whirlpool Refrigerator Paint
NI	72017 Whirlpool Appliance Touch-Up Paint White
NI	WP505587 Whirlpool Refrigerator Sealer
3	W11496481 Whirlpool Refrigerator Water Tube
4	Tube, Filter Inlet
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
8	4387491 Whirlpool Refrigerator Insert
9	WP489478 Whirlpool Refrigerator Screw
10	Valve, Solenoid
11	WP627018 Whirlpool Refrigerator Nut
12	WP488366 Whirlpool Refrigerator Clamp
13	Tube, Water Inlet
14	WP488878 Whirlpool Refrigerator Tube Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	Cement Alumilastic)
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
36	WP488163 Whirlpool Refrigerator Screw
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
40	Nut, Compression
