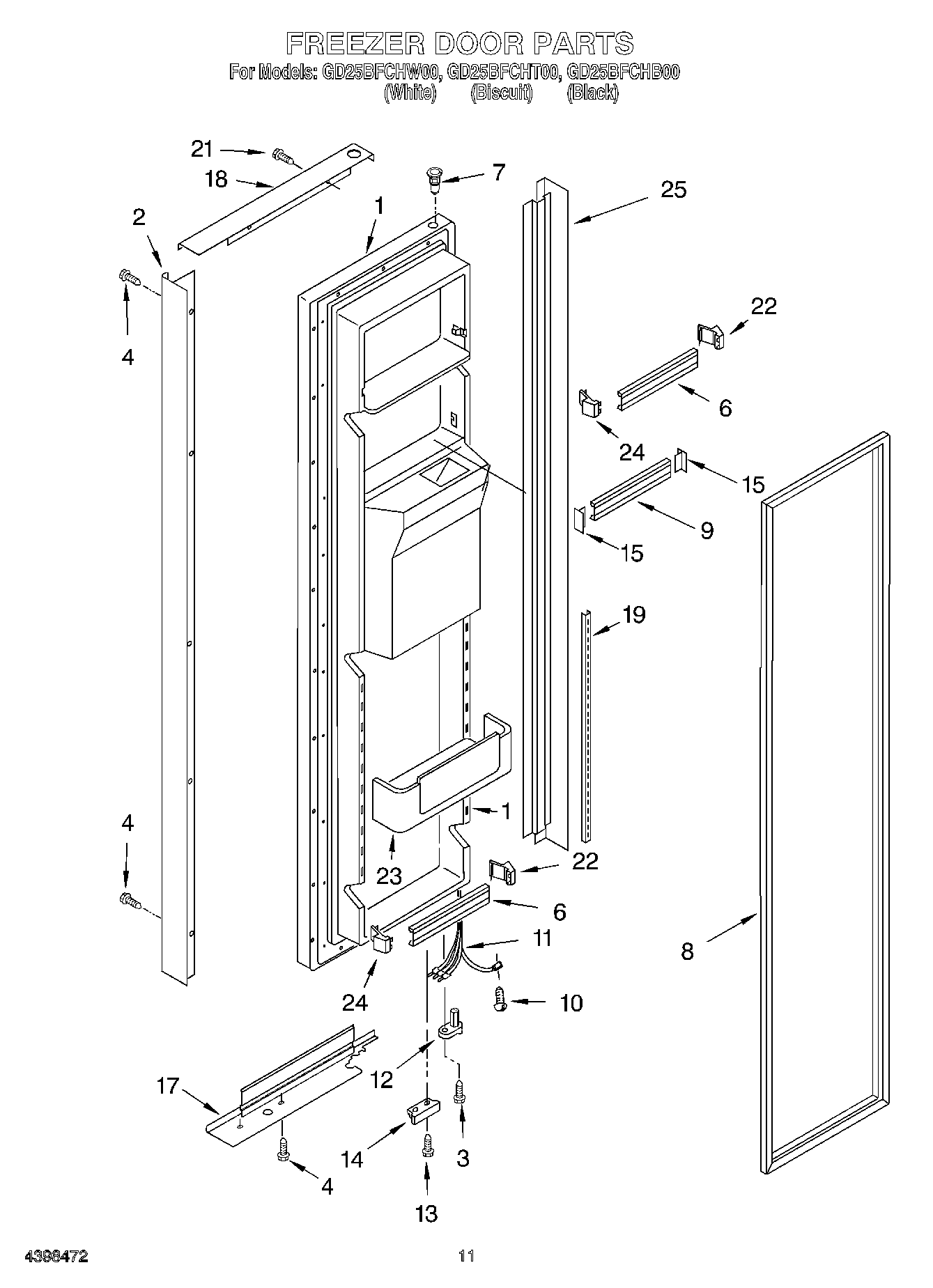

GD25BFCHW00 07 – FREEZER DOORadmin2025-04-26T10:59:28+00:00GD25BFCHW00 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black) |
| 1 | Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Biscuit) |
| 1 | Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White) |
| 2 | Handle (White) |
| 2 | Handle (Black) |
| 2 | Handle (Biscuit) |
| 3 | WP3400012 Whirlpool Refrigerator Screw |
| 4 | WP3196557 Whirlpool Screw |
| 6 | Trim, Door Shelf |
| 7 | WP2182181 Whirlpool Refrigerator Thimble |
| 8 | Door Gasket, Magnetic (Mist Beige) |
| 8 | Door Gasket, Magnetic (Black) |
| 9 | Trim, Door Shelf |
| 10 | WP489128 Whirlpool Refrigerator Screw |
| 11 | Wiring Harness |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | WP489483 Whirlpool Screw |
| 14 | Bracket, Door Stop (Chrome) |
| 14 | Bracket, Door Stop (Black) |
| 15 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 17 | Trim, Door (Bottom) (Biscuit) |
| 17 | Trim, Door (Bottom) (White) |
| 17 | Trim, Door (Bottom) (Black) |
| 18 | Trim, Door (Top) (White) |
| 18 | Trim, Door (Top) (Biscuit) |
| 18 | Trim, Door (Top) (Black) |
| 19 | Ladder, Shelf Assembly (2) |
| 21 | Screw |
| 22 | ENDCAP |
| 23 | Bin, Door (2) |
| 24 | WP2195917K Whirlpool Refrigerator Endcap |
| 25 | Trim, Door (Hinge Side) (White) |
| 25 | Trim, Door (Hinge Side) (Biscuit) |
| 25 | Trim, Door (Hinge Side) (Black) |
