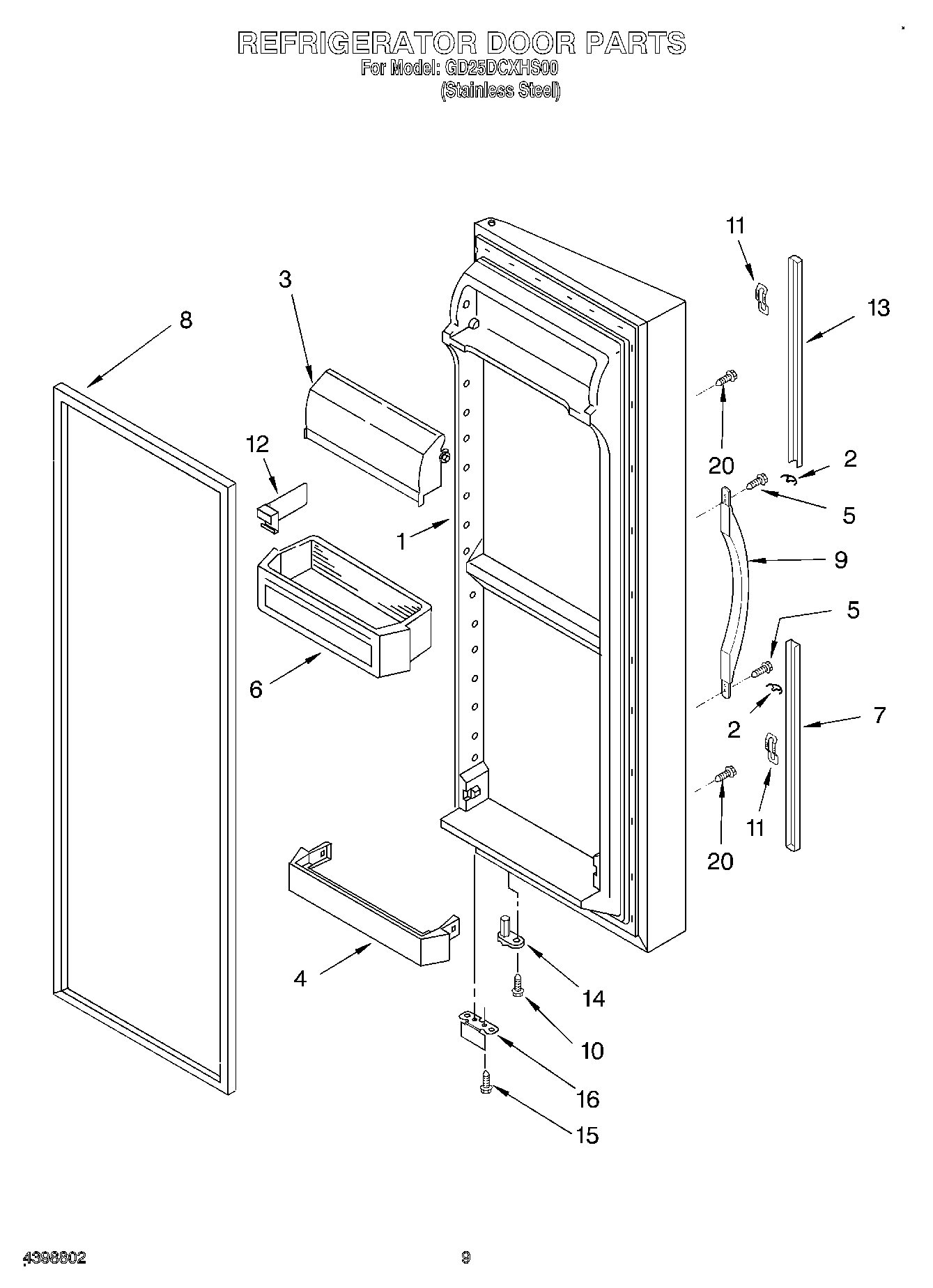

GD25DCXHS00 07 – REFRIGERATOR DOOR

GD25DCXHS00 07 – REFRIGERATOR DOOR

Written by

in

GD25DCXHS00 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.8) (Stainless)
2Jewelry, Handle
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WP489491 Whirlpool Refrigerator Screw
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7Trim, Door-Bottom (Black)
82159083 Whirlpool Gasket Door
9Handle (Black)
10WP3400012 Whirlpool Refrigerator Screw
11WP2195327 Whirlpool Refrigerator Clip
12Divider, Bin
13Trim, Door-Top (Black)
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16Bracket, Door Stop
20WP3400852 Whirlpool Refrigerator Screw
