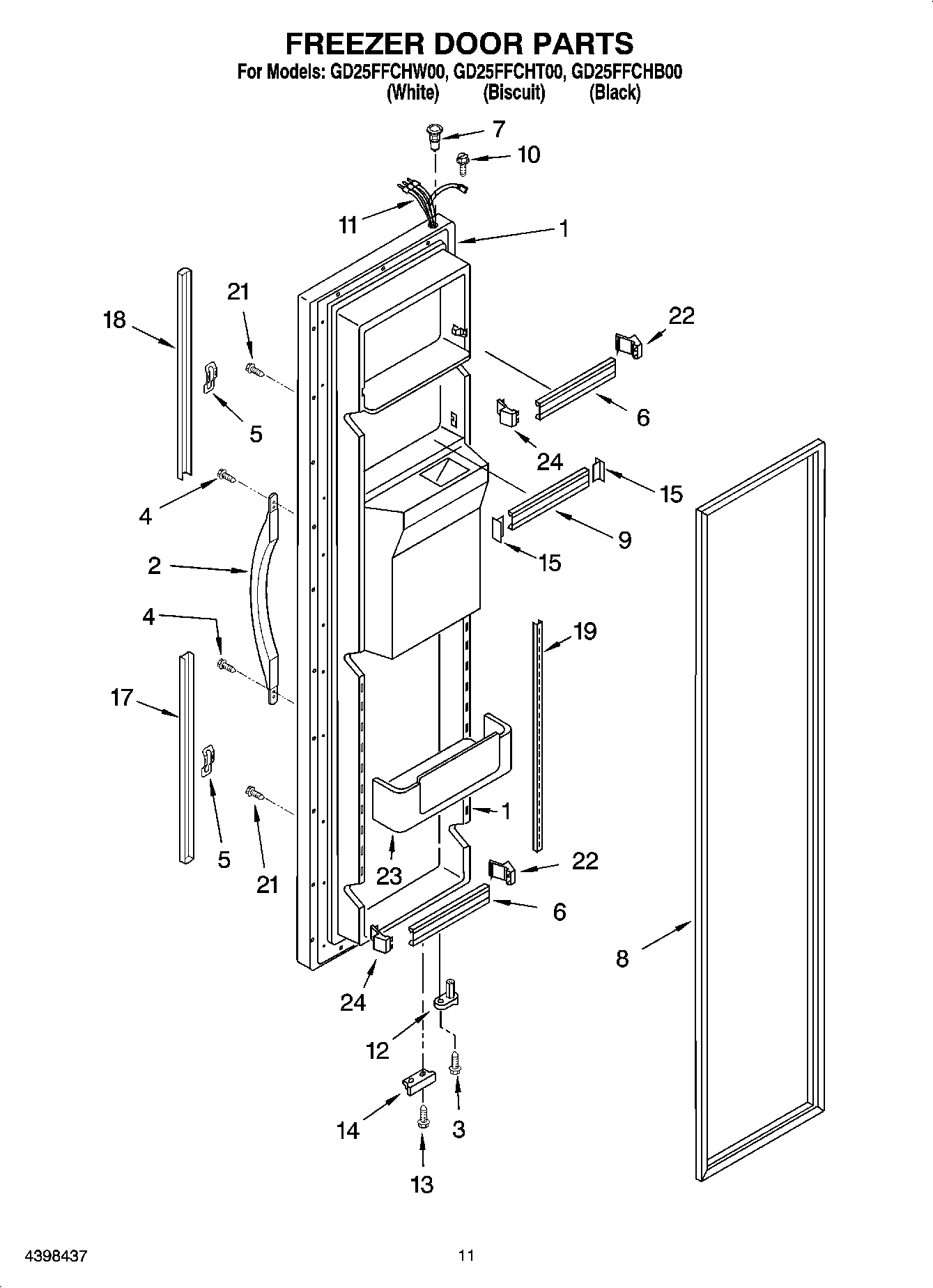

GD25FFCHB00 07 – FREEZER DOOR PARTSadmin2025-04-26T11:00:50+00:00GD25FFCHB00 07 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White) |
| 1 | Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Biscuit) |
| 1 | Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black) |
| 2 | Handle, Center (Biscuit) |
| 2 | Handle, Center (White) |
| 2 | WP2186649B Whirlpool Refrigerator Handle |
| 3 | WP3400012 Whirlpool Refrigerator Screw |
| 4 | WP489491 Whirlpool Refrigerator Screw |
| 5 | WP2195327 Whirlpool Refrigerator Clip |
| 6 | Trim, Door Shelf |
| 7 | WP2182181 Whirlpool Refrigerator Thimble |
| 8 | Door Gasket, Magnetic (Service) (Black) |
| 8 | Door Gasket, Magnetic (Service) (Mist Beige) |
| 9 | Trim, Door Shelf |
| 10 | WP489128 Whirlpool Refrigerator Screw |
| 11 | Wiring Harness |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | WP489483 Whirlpool Screw |
| 14 | Bracket, Door Stop (Black) |
| 14 | Bracket, Door Stop (Chrome) |
| 15 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 17 | Extension, Bottom (Biscuit) |
| 17 | Extension, Bottom (Black) |
| 17 | Extension, Bottom (White) |
| 18 | Extension, Top (Black) |
| 18 | Extension, Top (Biscuit) |
| 18 | Extension, Top (White) |
| 19 | Ladder, Shelf Assembly (2) |
| 21 | WP3400852 Whirlpool Refrigerator Screw |
| 22 | ENDCAP |
| 23 | Bin, Door (2) |
| 24 | WP2195917K Whirlpool Refrigerator Endcap |
