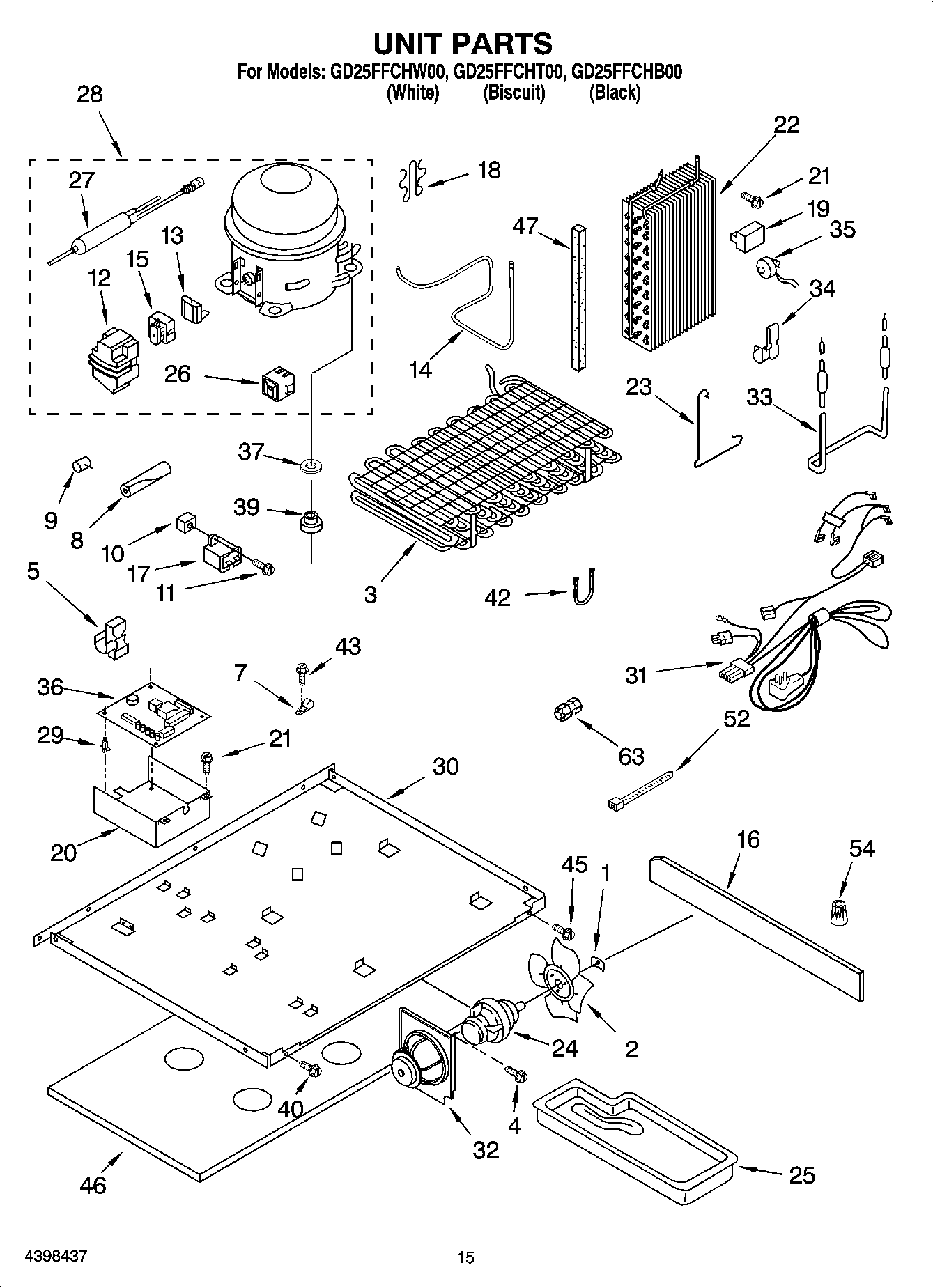

GD25FFCHB00 09 – UNIT PARTS

GD25FFCHB00 09 – UNIT PARTS

Written by

in

GD25FFCHB00 09 – UNIT PARTS

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP8281196 Whirlpool Screw
5Clip, Wire
7W11456069 Whirlpool Refrigerator Clamp
8SLEEVE
9WP2158826 Whirlpool Refrigerator Dampener
10Screw Grommet
11W11693756 Whirlpool Screw Assembly
12WP2162358 Whirlpool Refrigerator Terminal Cover
13W11239930 Whirlpool Refrigerator Overload Relay
13WP61006295 Whirlpool Refrigerator Overload
142313230 Whirlpool Tube
15W10920279 Whirlpool Refrigerator Start Relay
16Extension, Air Baffle
17WP4387764 Whirlpool Run Capacitor
18Clip, Compressor (4)
19Block, Evaporator
20Housing, Control Board
21WP489478 Whirlpool Refrigerator Screw
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24833697 Whirlpool Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
268201802 Whirlpool Refrigerator Start Device
27W10843121 Whirlpool Refrigerator Tube
28W10309995 Whirlpool Refrigerator Compressor
29WP2203075 Whirlpool Refrigerator Spacer
30Unit Mounting Plate
31Unit, Harness
32Fan, Motor Bracket
33WP2323198 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36Circuit Board, Dual Temp.
37Washer
39WP2163786 Whirlpool Refrigerator Grommet
40Screw
42Tube, Heat Loop
43WP489491 Whirlpool Refrigerator Screw
45Screw
46Insulation, Mounting Plate
47Side Support
52WPW10339879 Whirlpool Wire Tie
54Wire Connector
63FOLLOWING PARTS NOT ILLUSTRATED
63and Optional Parts Not In
63978030 Whirlpool Refrigerator Valve
63WP4318044 Whirlpool Refrigerator Connector
63VALVE, ACCESS (1/2“)
63VALVE, ACCESS (5/8“)
63WP978025 Whirlpool Refrigerator Valve
63876764 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63WPL ARI61958A1
