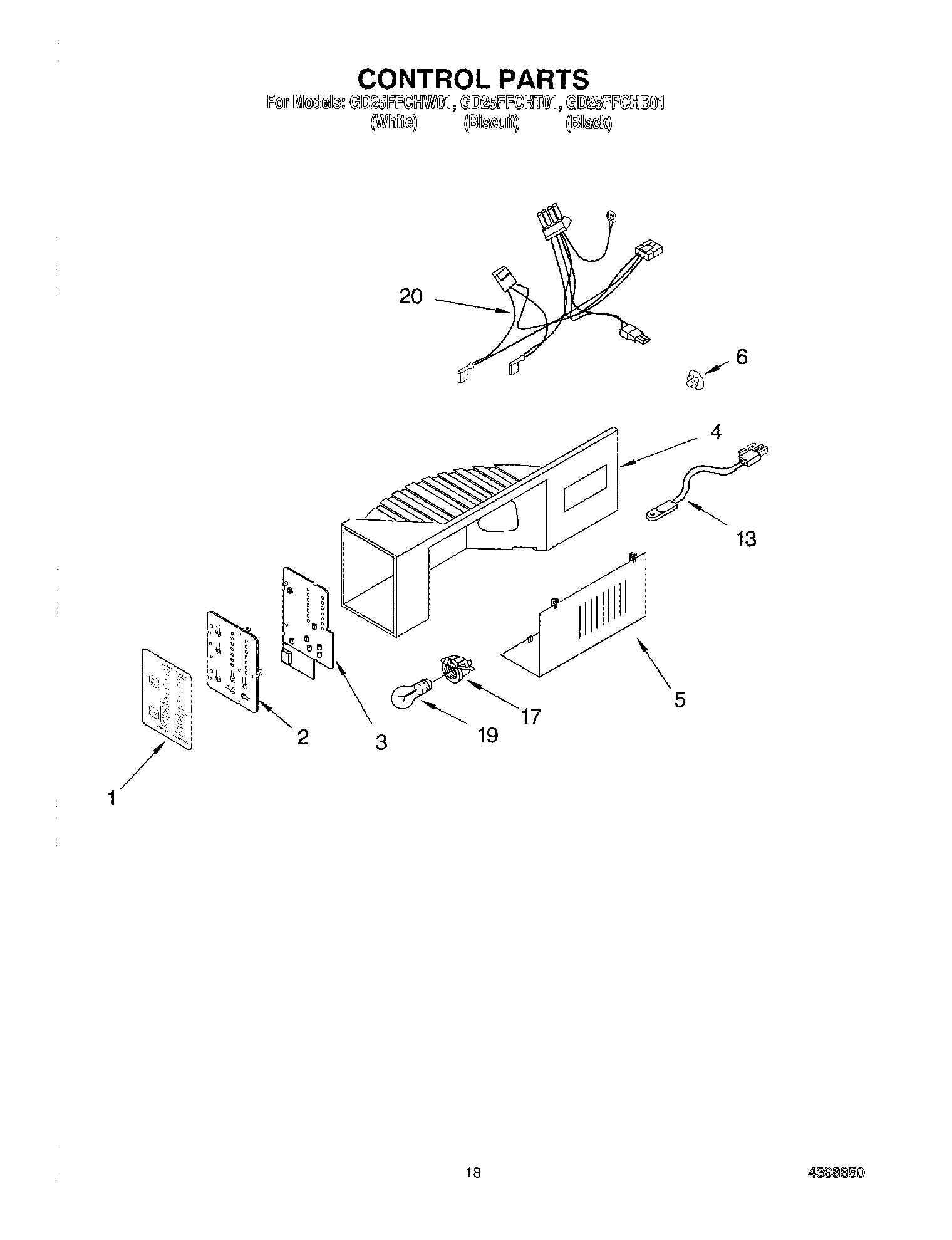

GD25FFCHB01 11 – CONTROL

GD25FFCHB01 11 – CONTROL

Written by

in

GD25FFCHB01 11 – CONTROL

Products

PositionProduct
1Overlay
2Retainer, Circuit Board
3Circuit Board, Interface
4Control Box
5Light Lens
6940014 Whirlpool Refrigerator Primary Button Plug
13Thermistor
174387478 Whirlpool Refrigerator Light Socket
194396822 Whirlpool Refrigerator Light Bulb
20Control Box Harness
