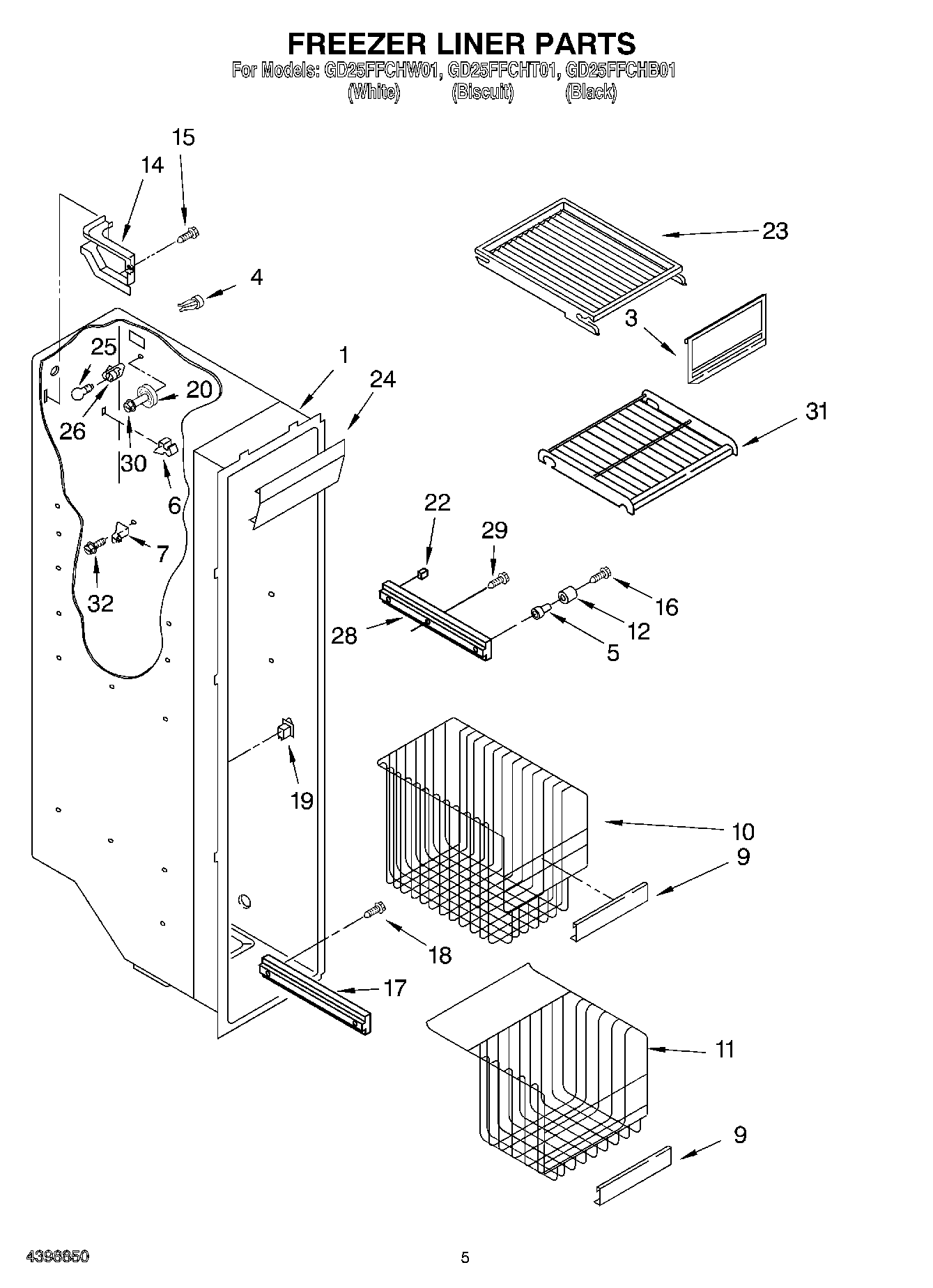

GD25FFCHW01 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
3	Door, Ice Compartment
4	Grommet (2)
5	Eyelet, Roller
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
9	Trim, Basket
10	Basket (2)
11	Basket, Shallow
12	Roller
14	Wiring Cover
15	WP489464 Whirlpool Refrigerator Screw
17	Slide, Basket (Left Side (2))
17	Slide, Basket (Right Side (2))
18	SCREW
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	WP2196483 Whirlpool Refrigerator Shelf Stud
22	Roller Stop
23	Shelf, Top Compartment
24	Light Lens
25	RANGE ONLY 40W 120V APPL BULB
26	4387478 Whirlpool Refrigerator Light Socket
28	2006518 Whirlpool Refrigerator Track
28	Slide, Container (Right Side)
29	WPW10272364 Whirlpool Refrigerator Screw
30	WP3400806 Whirlpool Screw
31	Shelf
32	W10142289 Whirlpool Air Conditioner Screw
