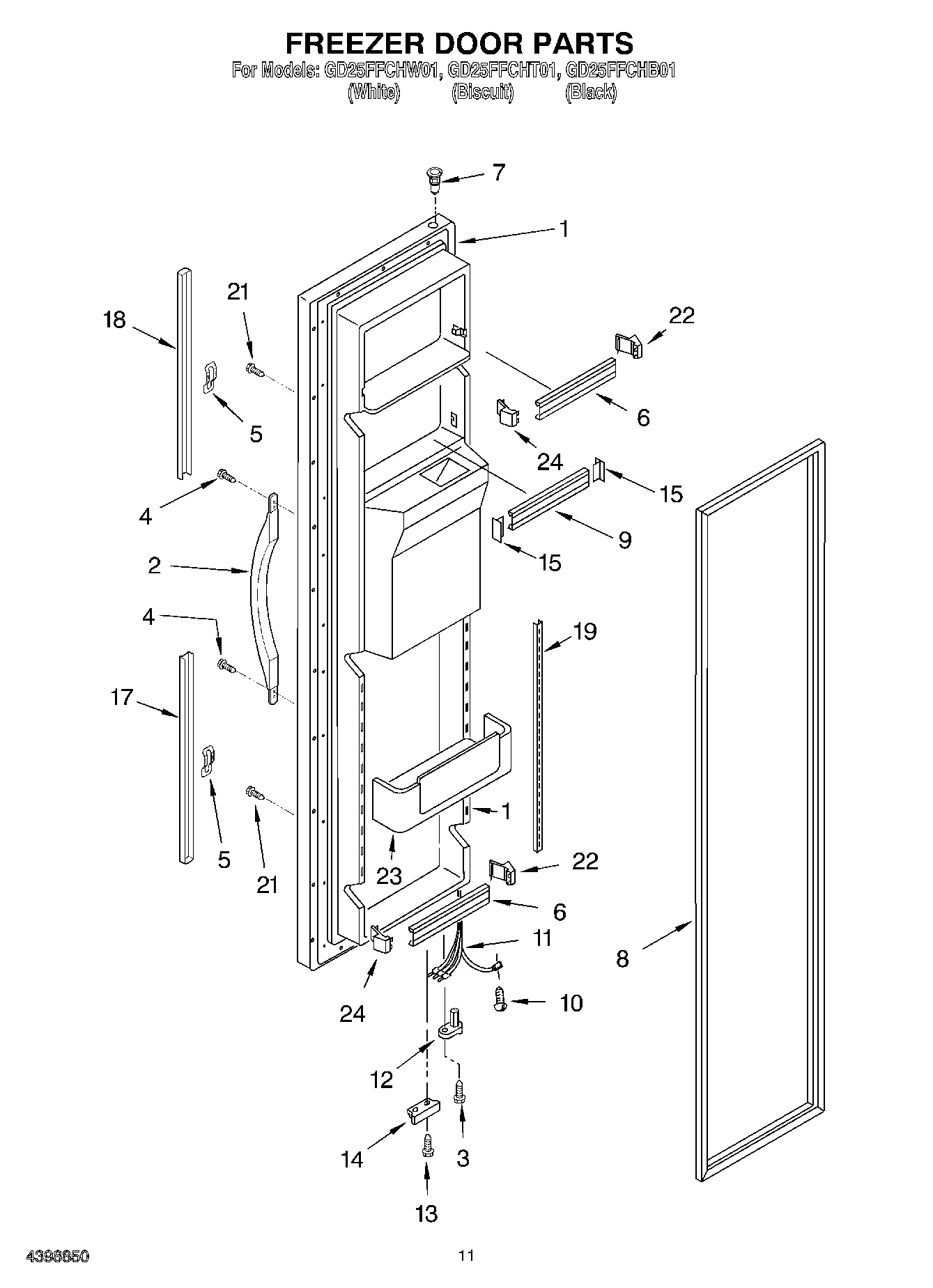

GD25FFCHW01 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
2	Handle, Center (Biscuit)
2	Handle, Center (White)
2	WP2186649B Whirlpool Refrigerator Handle
3	WP3400012 Whirlpool Refrigerator Screw
4	WP489491 Whirlpool Refrigerator Screw
5	WP2195327 Whirlpool Refrigerator Clip
6	Trim, Door Shelf
7	WP2182181 Whirlpool Refrigerator Thimble
8	Door Gasket, Magnetic (Service) (Mist Beige)
8	Door Gasket, Magnetic (Service) (Black)
9	Trim, Door Shelf
10	WP489128 Whirlpool Refrigerator Screw
11	Wiring Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
14	Bracket, Door Stop (Chrome)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
17	Extension, Bottom (White)
17	Extension, Bottom (Biscuit)
17	Extension, Bottom (Black)
18	Extension, Top (Black)
18	Extension, Top (Biscuit)
18	Extension, Top (White)
19	Ladder, Shelf Assembly (2)
21	WP3400852 Whirlpool Refrigerator Screw
22	ENDCAP
23	Bin, Door (2)
24	WP2195917K Whirlpool Refrigerator Endcap
