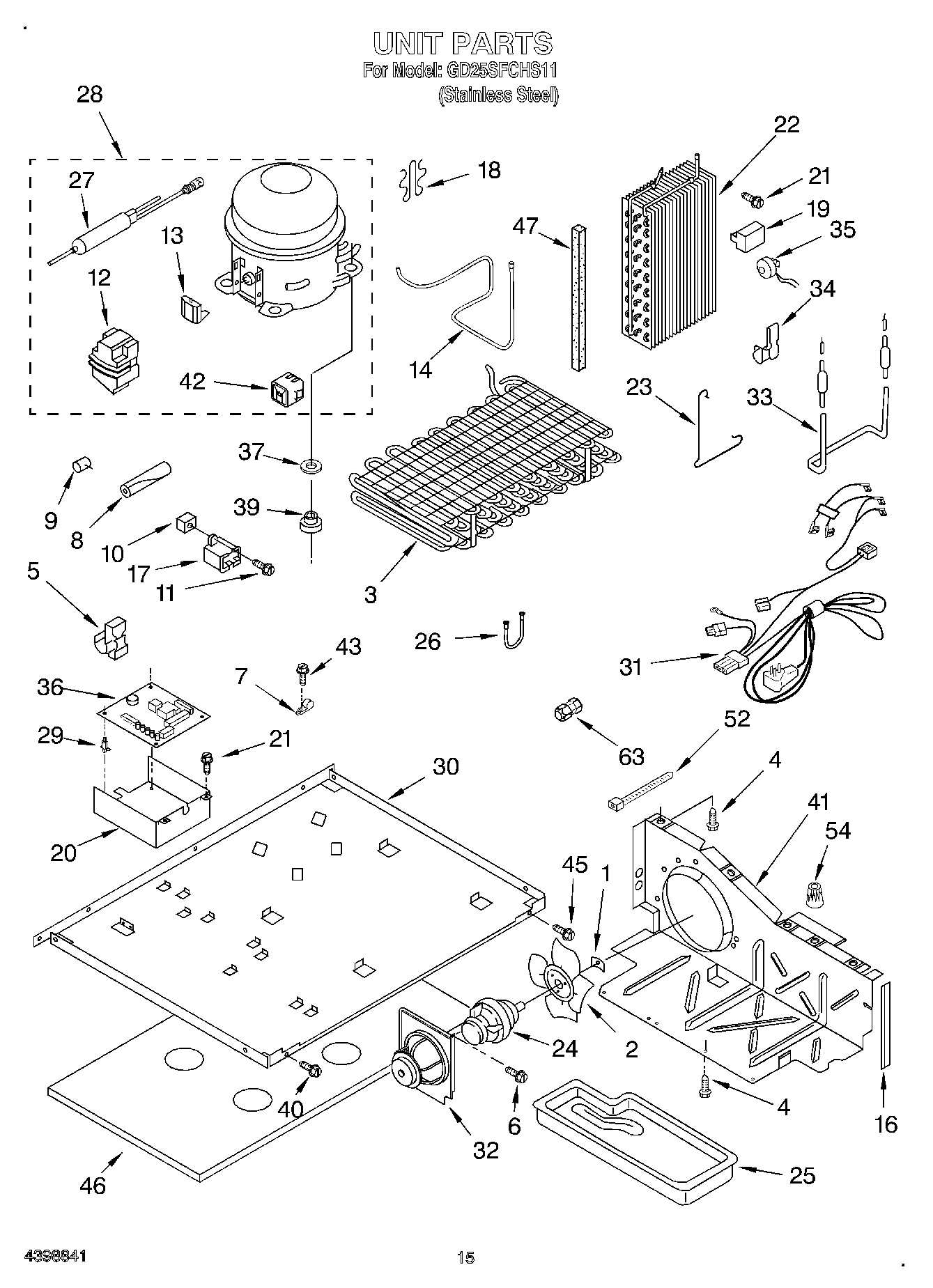

GD25SFCHS11 09 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire
6	WP8281196 Whirlpool Screw
7	W11456069 Whirlpool Refrigerator Clamp
8	SLEEVE
9	WP2158826 Whirlpool Refrigerator Dampener
10	Screw Grommet
11	W11693756 Whirlpool Screw Assembly
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	W11239930 Whirlpool Refrigerator Overload Relay
14	2313230 Whirlpool Tube
16	Extension, Air Baffle
17	WP4387764 Whirlpool Run Capacitor
18	Clip, Compressor (4)
19	Block, Evaporator
20	Housing, Control Board
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Tube, Heat Loop
27	W10843121 Whirlpool Refrigerator Tube
28	W10309995 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	WP2203075 Whirlpool Refrigerator Spacer
30	Unit Mounting Plate
31	Unit, Harness
32	Fan, Motor Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36	Circuit Board, Dual Temp.
37	Washer
39	WP2163786 Whirlpool Refrigerator Grommet
40	Screw
41	WP2216112 Whirlpool Damper Control Assembly
42	8201802 Whirlpool Refrigerator Start Device
43	WP489491 Whirlpool Refrigerator Screw
45	Screw
46	Insulation, Mounting Plate
47	Side Support
52	WPW10339879 Whirlpool Wire Tie
54	Wire Connector
63	VALVE, ACCESS (5/8“)
63	876764 Whirlpool Refrigerator Primary Valve
63	978026 Whirlpool Refrigerator Primary Valve
63	978027 Whirlpool Refrigerator Primary Valve
63	978030 Whirlpool Refrigerator Valve
63	WP978025 Whirlpool Refrigerator Valve
63	VALVE, ACCESS (1/2“)
63	WP4318044 Whirlpool Refrigerator Connector
