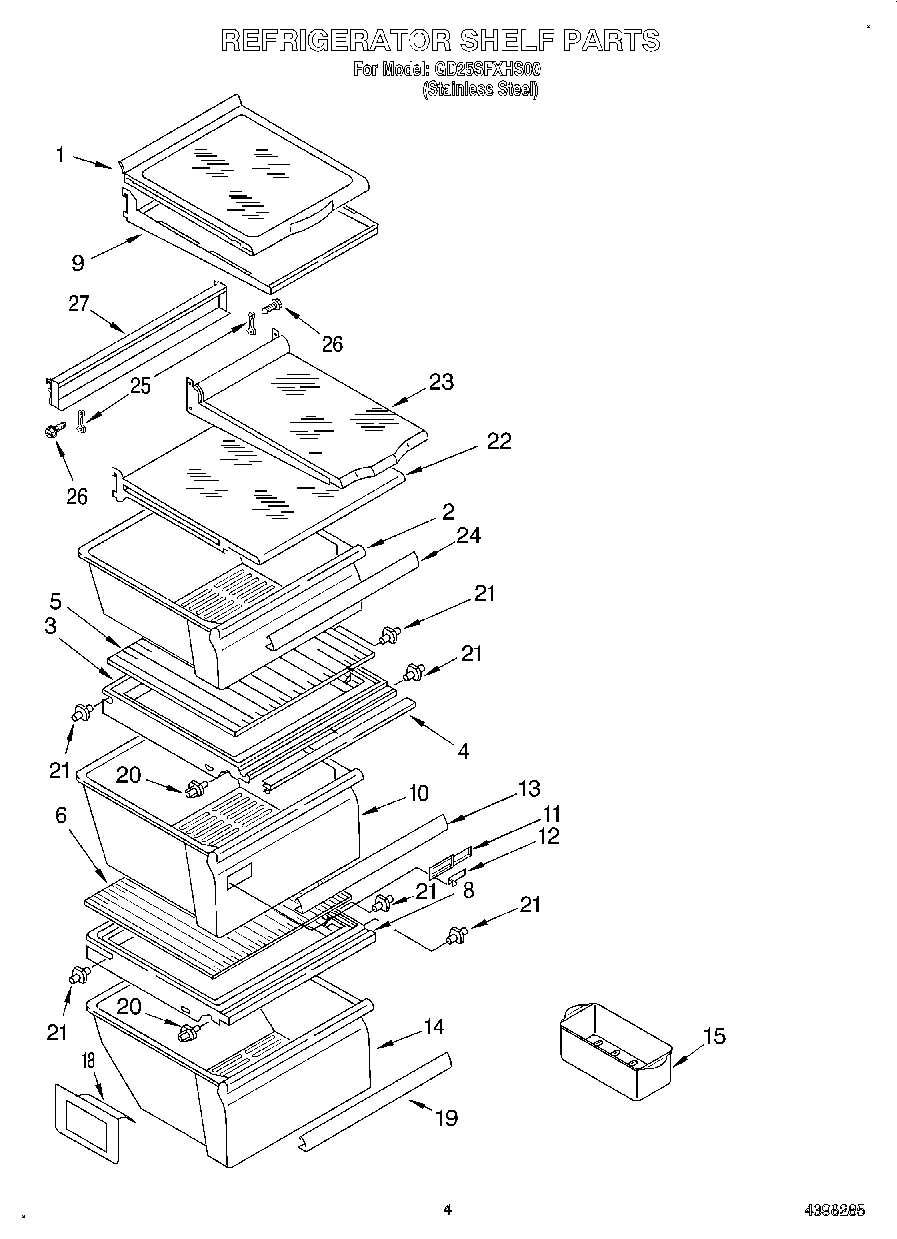

GD25SFXHS00 03 – REFRIGERATOR SHELF

Products

PositionProduct
1WPW10141748 Whirlpool Refrigerator Glass Shelf
2W11497323 Whirlpool Snack Pan
4Gasket, Front
5W10864399 Whirlpool Glass Shelf
8W10508993 Whirlpool Refrigerator Cover Pan
9Frame, Shelf
10PAN-CRISPR
11WP2179343 Whirlpool Refrigerator Control Body
12WP2179342 Whirlpool Refrigerator Slide
14Meat Pan
15W10136387A Whirlpool Refrigerator Egg Container
182179350 Whirlpool Refrigerator Deflector
19WP2179234 Whirlpool Refrigerator Pan Trim
204388539 Whirlpool Refrigerator Shelf Stud
214388538 Whirlpool Refrigerator Stud Shelf Kit (White)
22Shelf, Cantilever (Snack Bin)
23Shelf, Slide (Side To Side)
24WP2179243 Whirlpool Refrigerator Pan Trim
25Hook, Shelf
26Screw
27Track, Shelf
