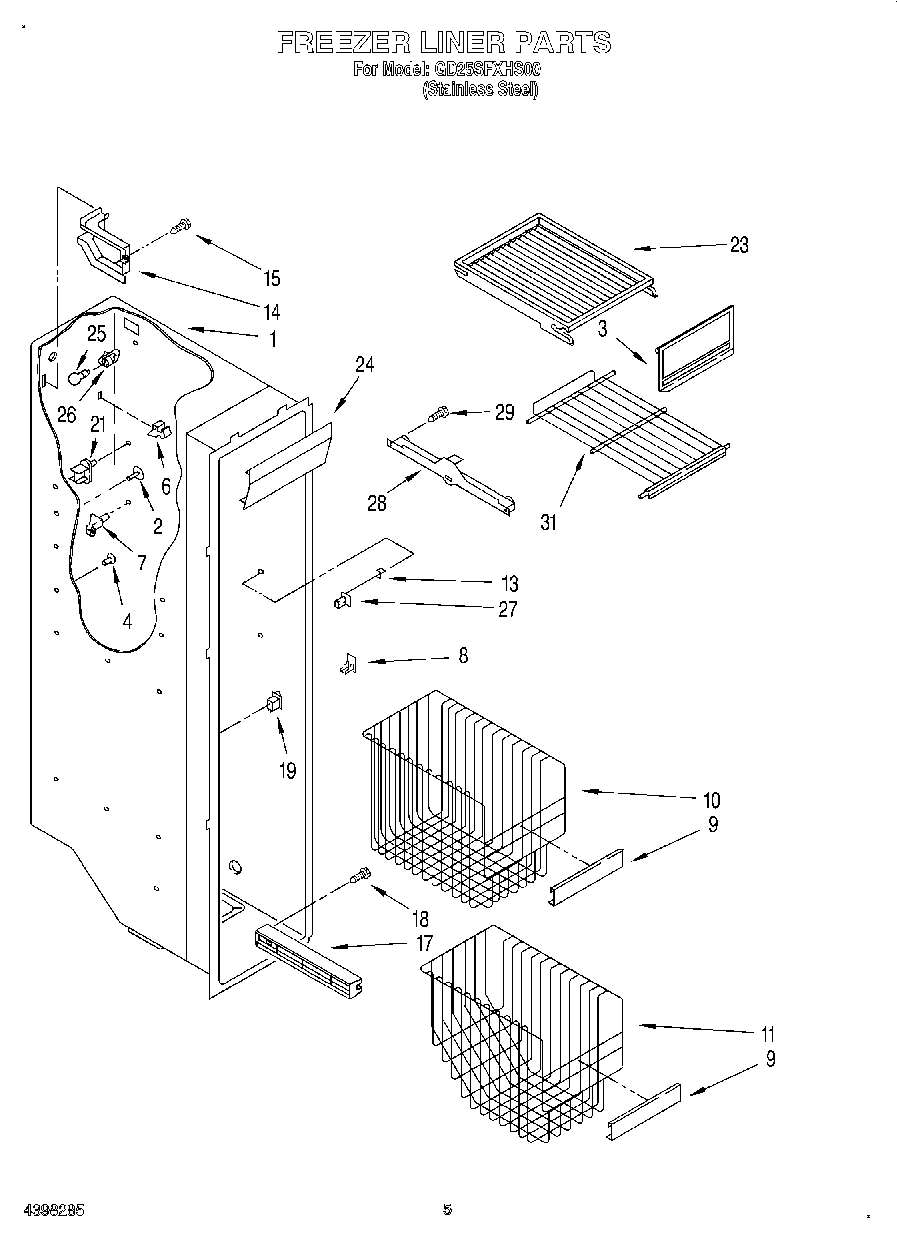

GD25SFXHS00 04 – FREEZER LINER

GD25SFXHS00 04 – FREEZER LINER

Written by

in

GD25SFXHS00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP941839 Whirlpool Refrigerator Button Plug
3WP2171713 Whirlpool Refrigerator Ice Door
4Grommet
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
9Trim, Basket
10Basket, Tall
11Basket, Slope
13Stud, Support
14Cover, Wiring
15SCREW
17Slide, Basket (Left Side (2))
17Slide, Basket (Right Side (2))
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
21Stud, Shelf (4)
23Shelf, Top Compartment
242171705 Whirlpool Refrigerator Light Lens
25RANGE ONLY 40W 120V APPL BULB
264387478 Whirlpool Refrigerator Light Socket
27Stud, Front R.S.
27Stud, Rear R.S.
28W10845583 Whirlpool Refrigerator Track
28W10845585 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
31WP2174267 Whirlpool Refrigerator Wire Shelf
