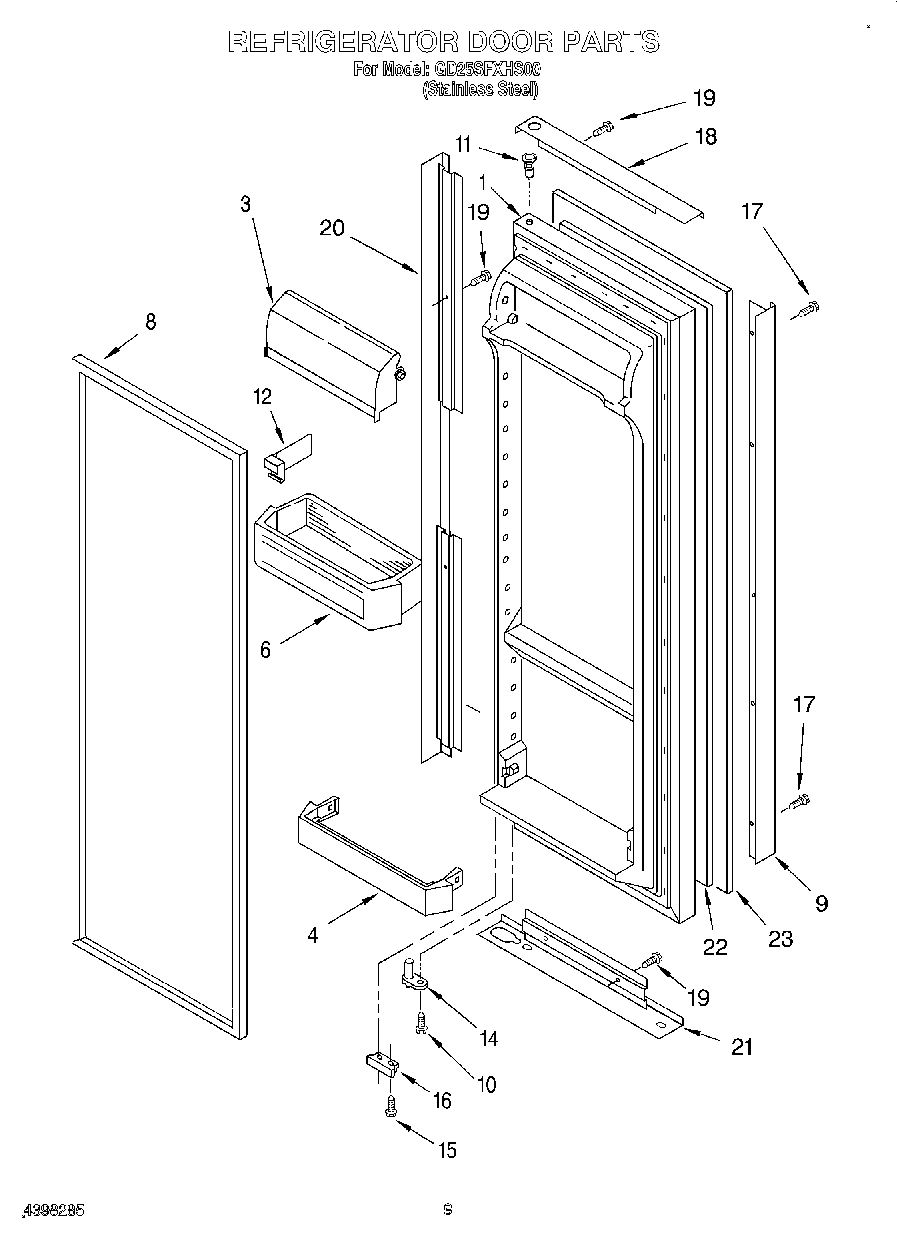

GD25SFXHS00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8)
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
8	2159083 Whirlpool Gasket Door
9	Handle, Center
10	WP3400012 Whirlpool Refrigerator Screw
11	WP2182181 Whirlpool Refrigerator Thimble
12	Divider, Bin
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Black)
16	Bracket, Door Stop (Chrome)
17	Screw
18	Trim, Door (Top)
19	WP3196557 Whirlpool Screw
20	Trim, Door (Side)
21	Trim, Door (Bottom)
22	Filler, Panel
23	Panel
