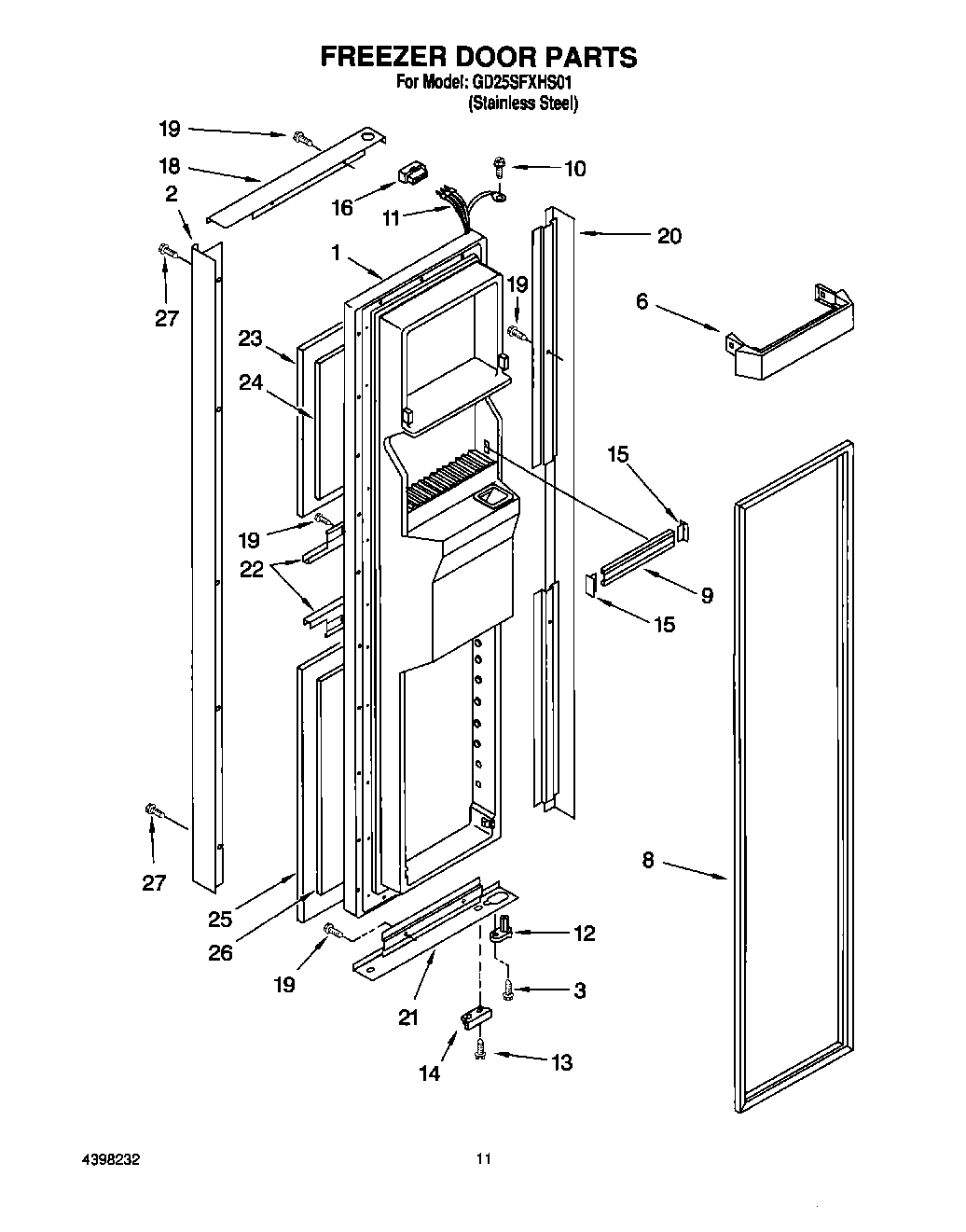

GD25SFXHS01 07 – FREEZER DOOR

GD25SFXHS01 07 – FREEZER DOOR

Written by

in

GD25SFXHS01 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item No.8 And Dispenser Front Parts)
2Handle, Center
3WP3400012 Whirlpool Refrigerator Screw
6WP2171157 Whirlpool Shelf Trim
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
11Wiring Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Black)
14Bracket, Door Stop (Chrome)
15WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
16WP2154473 Whirlpool Refrigerator Connector
18Trim, Door (Top)
19WP3196557 Whirlpool Screw
20Trim, Door (Side)
21Trim, Door (Bottom)
22Trim, Door (Dispenser, Top & Bottom)
23Panel, Upper
24Filler, Panel (Upper)
25Panel, Lower
26Filler, Panel (Lower)
27WP489478 Whirlpool Refrigerator Screw
