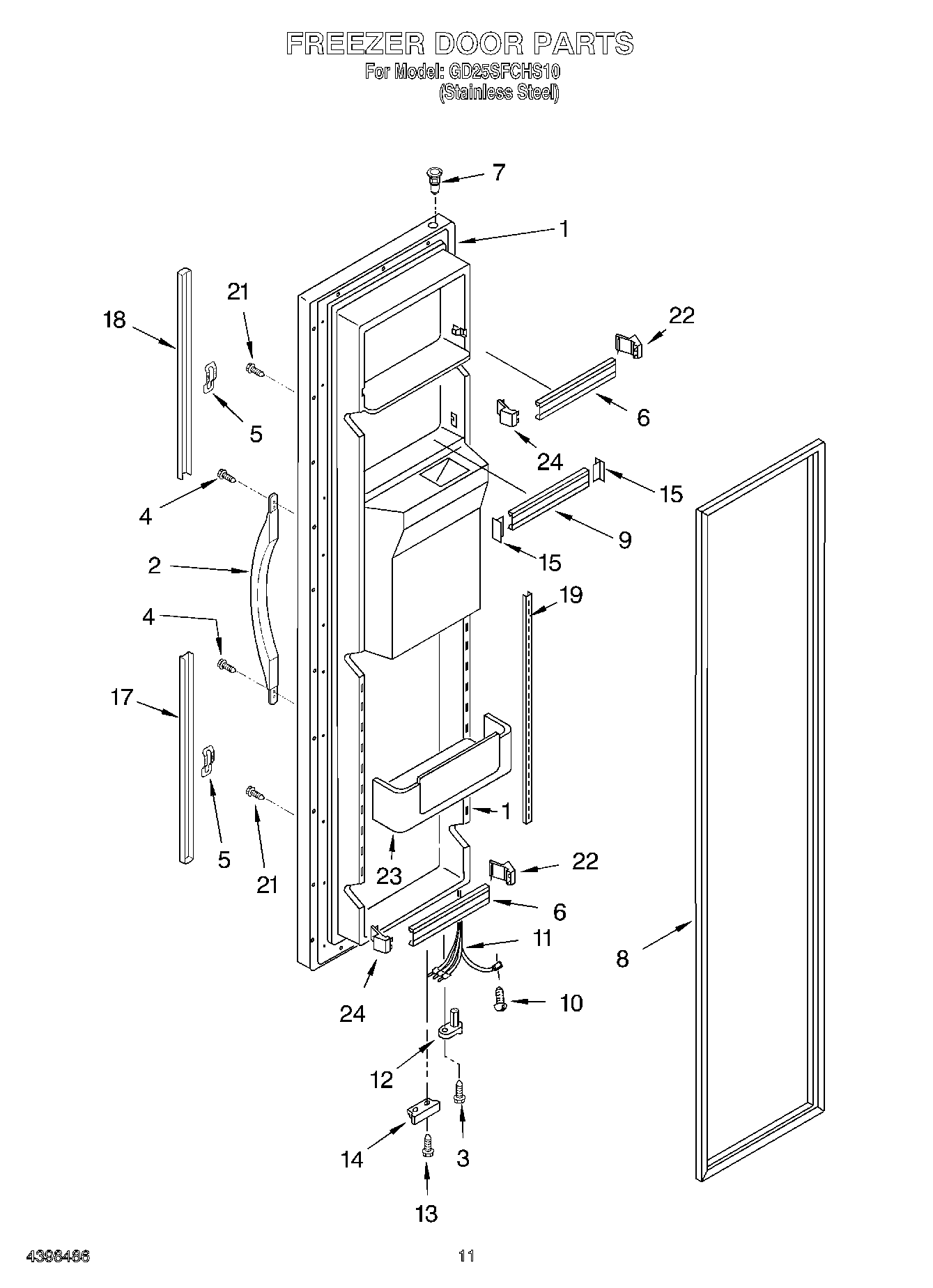

GD25SSFCHS10 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts)
2	WP2186649B Whirlpool Refrigerator Handle
3	WP3400012 Whirlpool Refrigerator Screw
4	WP489491 Whirlpool Refrigerator Screw
5	WP2195327 Whirlpool Refrigerator Clip
6	Trim, Door Shelf
7	WP2182181 Whirlpool Refrigerator Thimble
8	Door Gasket, Magnetic (Service) (Black)
9	Trim, Door Shelf
10	Screw
11	Wiring Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
17	Extension, Bottom (Black)
18	Extension, Top (Black)
19	Ladder, Shelf Assembly (2)
21	Screw
22	ENDCAP
23	Bin, Door (2)
24	WP2195917K Whirlpool Refrigerator Endcap
