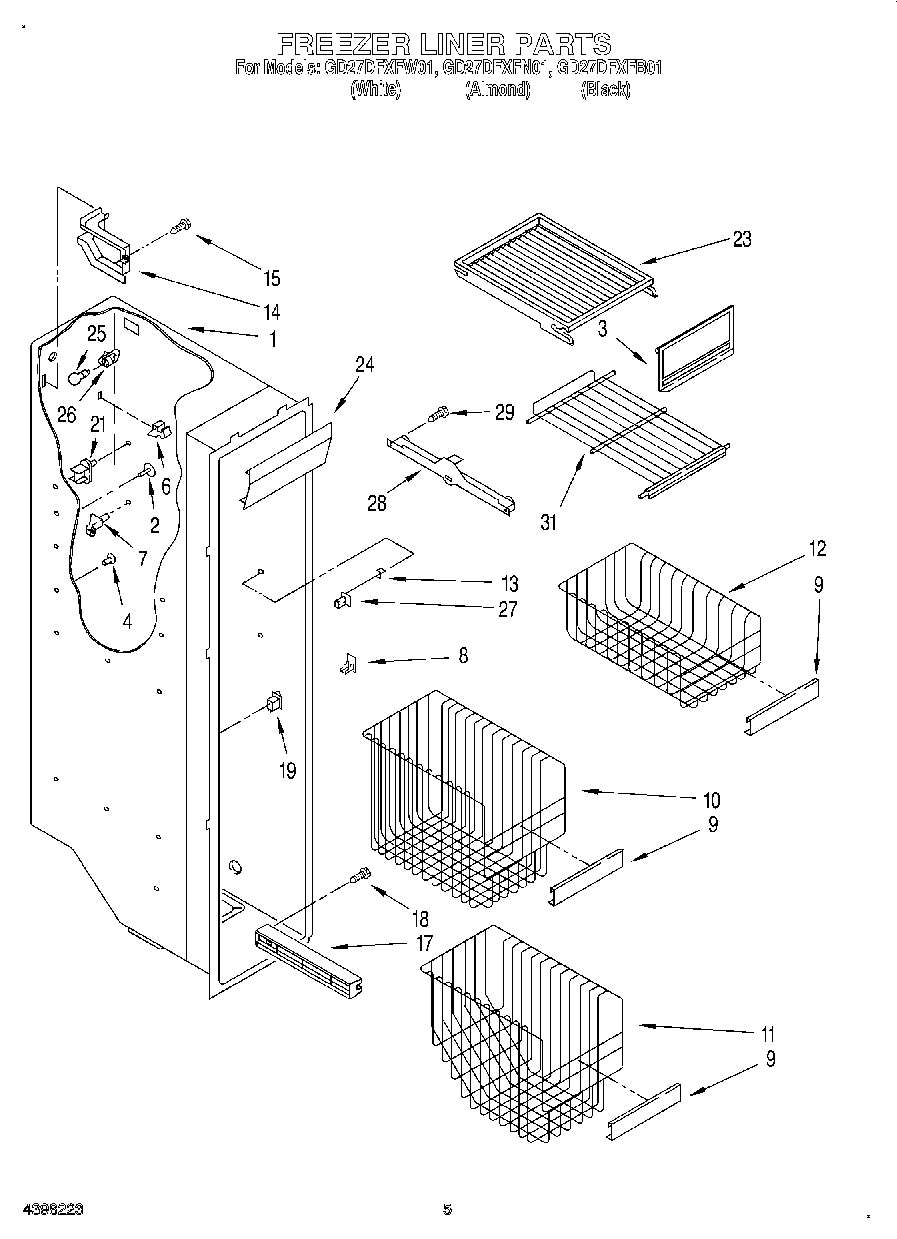

GD27DFXFN01 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP941839 Whirlpool Refrigerator Button Plug
3	WP2171713 Whirlpool Refrigerator Ice Door
4	Grommet
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
9	Trim, Basket
10	Basket, Tall
11	Basket, Slope
12	Basket
13	Stud, Support
14	Cover, Wiring
15	SCREW
17	Slide, Basket (Right Side (2))
17	Slide, Basket (Left Side (2))
18	W10759522 Whirlpool Screw
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
21	Stud, Shelf (4)
23	Shelf, Top Compartment
24	2171705 Whirlpool Refrigerator Light Lens
25	RANGE ONLY 40W 120V APPL BULB
26	4387478 Whirlpool Refrigerator Light Socket
27	Stud, Front R.S.
27	Stud, Rear R.S.
28	W10845583 Whirlpool Refrigerator Track
28	W10845585 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
31	WP2174267 Whirlpool Refrigerator Wire Shelf
