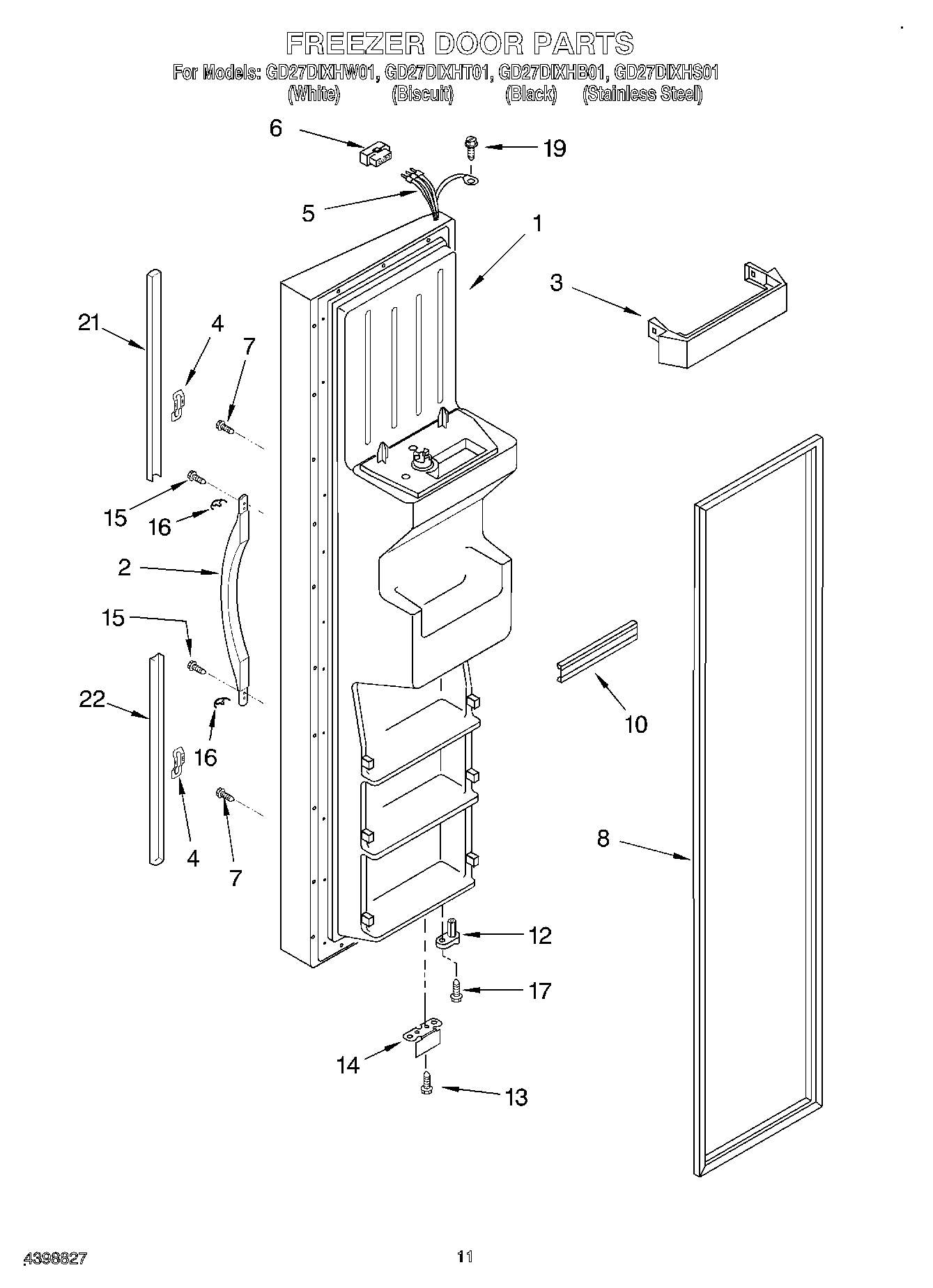

GD27DIXHB01 07 – FREEZER DOORadmin2025-04-26T11:02:53+00:00GD27DIXHB01 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (White) |
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (Black) |
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (Stainless) |
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (Biscuit) |
| 2 | Handle (Tempest Gray) |
| 2 | Handle (White) |
| 2 | Handle (Black) |
| 2 | Handle (Biscuit) |
| 3 | WP2171157 Whirlpool Shelf Trim |
| 4 | WP2195327 Whirlpool Refrigerator Clip |
| 5 | 2198619 Whirlpool Refrigerator Wire Harness |
| 6 | WP2154473 Whirlpool Refrigerator Connector |
| 7 | WP3400852 Whirlpool Refrigerator Screw |
| 8 | 2159074 Whirlpool Door Gasket Seal |
| 8 | 2159082 Whirlpool Freezer Door Gasket Black |
| 10 | WPW10307490 Whirlpool Door Trim Assembly |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | WP489483 Whirlpool Screw |
| 14 | Bracket, Door Stop |
| 15 | WP489491 Whirlpool Refrigerator Screw |
| 16 | Jewelry, Handle (Satin Nickel) |
| 16 | Jewelry, Handle |
| 17 | WP3400012 Whirlpool Refrigerator Screw |
| 19 | WP489128 Whirlpool Refrigerator Screw |
| 21 | Trim, Door-Top (White) |
| 21 | Trim, Door-Top (Tempest Gray) |
| 21 | Trim, Door-Top (Biscuit) |
| 21 | Trim, Door-Top (Black) |
| 22 | Trim, Door-Bottom (White) |
| 22 | Trim, Door-Bottom (Tempest Gray) |
| 22 | Trim, Door-Bottom (Biscuit) |
| 22 | Trim, Door-Bottom (Black) |
