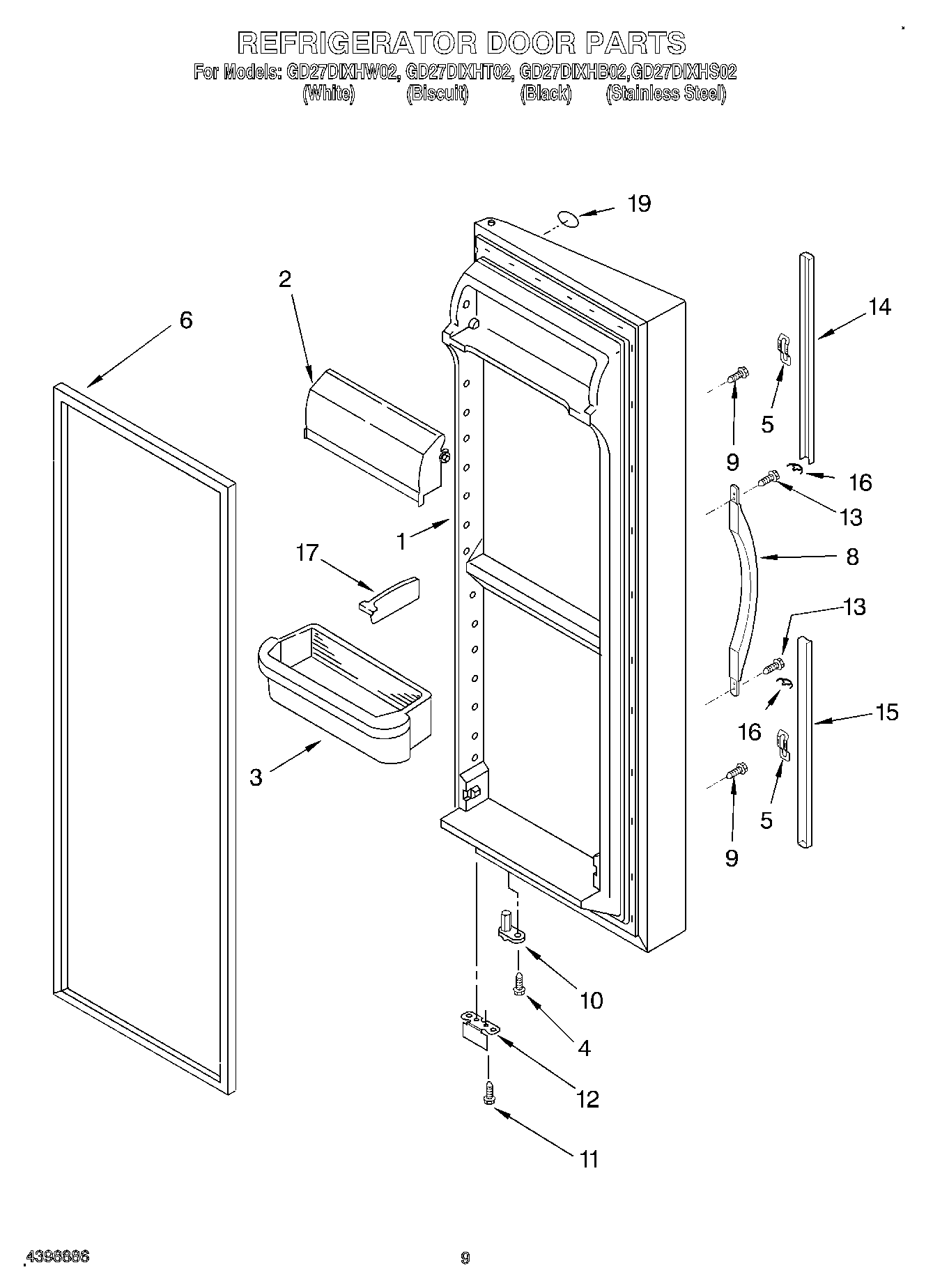

GD27DIXHT02 06 – REFRIGERATOR DOORadmin2025-04-26T11:01:30+00:00GD27DIXHT02 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Item No.6) (White) |
| 1 | Refrigerator Door (Includes Item No.6) (Biscuit) |
| 1 | Refrigerator Door (Includes Item No.6) (Stainless) |
| 1 | Refrigerator Door (Includes Item No.6) (Black) |
| 2 | WP2256101 Whirlpool Dairy Door |
| 3 | WP2203872 Whirlpool Refrigerator Cantilever Bin |
| 4 | WP3400012 Whirlpool Refrigerator Screw |
| 5 | WP2195327 Whirlpool Refrigerator Clip |
| 6 | 2159083 Whirlpool Gasket Door |
| 6 | 2159075 Whirlpool Door Gasket Seal |
| 8 | Handle (White) |
| 8 | Handle (Tempest Gray) |
| 8 | Handle (Black) |
| 8 | Handle (Biscuit) |
| 9 | WP3400852 Whirlpool Refrigerator Screw |
| 10 | WP2182179 Whirlpool Cam Closer |
| 11 | WP489483 Whirlpool Screw |
| 12 | Bracket, Door Stop |
| 13 | WP489491 Whirlpool Refrigerator Screw |
| 14 | Trim, Door-Top (White) |
| 14 | Trim, Door-Top (Tempest Gray) |
| 14 | Trim, Door-Top (Biscuit) |
| 14 | Trim, Door-Top (Black) |
| 15 | Trim, Door-Bottom (Biscuit) |
| 15 | Trim, Door-Bottom (Tempest Gray) |
| 15 | Trim, Door-Bottom (White) |
| 15 | Trim, Door-Bottom (Black) |
| 16 | Jewelry, Handle |
| 16 | Jewelry, Handle (Satin Nickel) |
| 17 | Divider, Bin |
| 19 | WP2213265 Whirlpool Refrigerator Nameplate |
