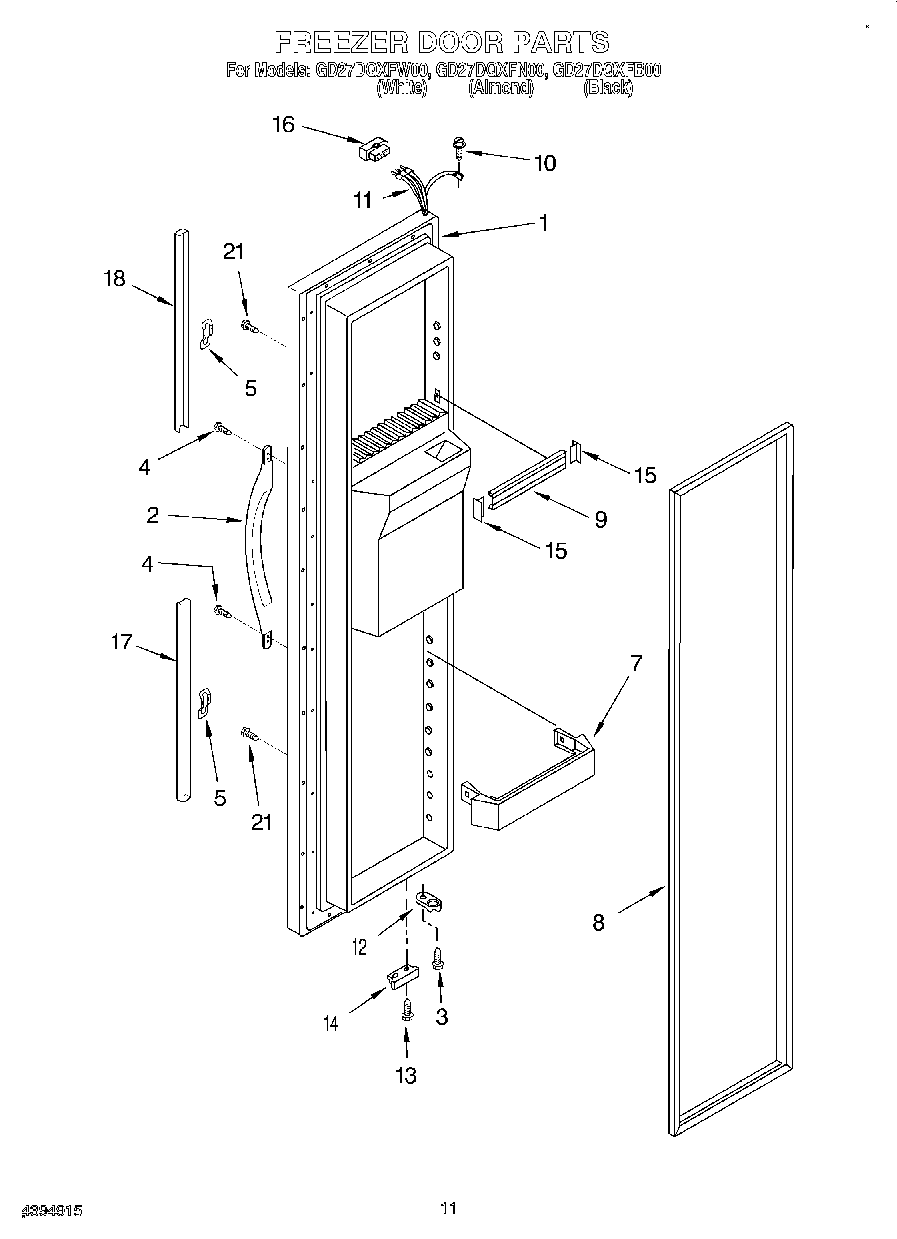

GD27DQXFB00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Almond)
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
2	Handle, Center (White)
2	Handle, Center (Almond)
2	WP2186649B Whirlpool Refrigerator Handle
3	WP3400012 Whirlpool Refrigerator Screw
4	WP489491 Whirlpool Refrigerator Screw
5	WP2195327 Whirlpool Refrigerator Clip
7	WP2171157 Whirlpool Shelf Trim
8	2159082 Whirlpool Freezer Door Gasket Black
8	2159074 Whirlpool Door Gasket Seal
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP488234 Whirlpool Air Conditioner Screw
11	Wiring Harness
12	4318165 Whirlpool Refrigerator Door Closure Cam Kit
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
14	Bracket, Door Stop (Chrome)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
16	WP2154473 Whirlpool Refrigerator Connector
17	Extension, Bottom (Almond)
17	WP2194969B Whirlpool Refrigerator Handle Trim
17	Extension, Bottom (White)
18	WP2194973W Whirlpool Door Trim
18	Extension, Top (Almond)
18	Extension, Top (Black)
21	WP3400852 Whirlpool Refrigerator Screw
