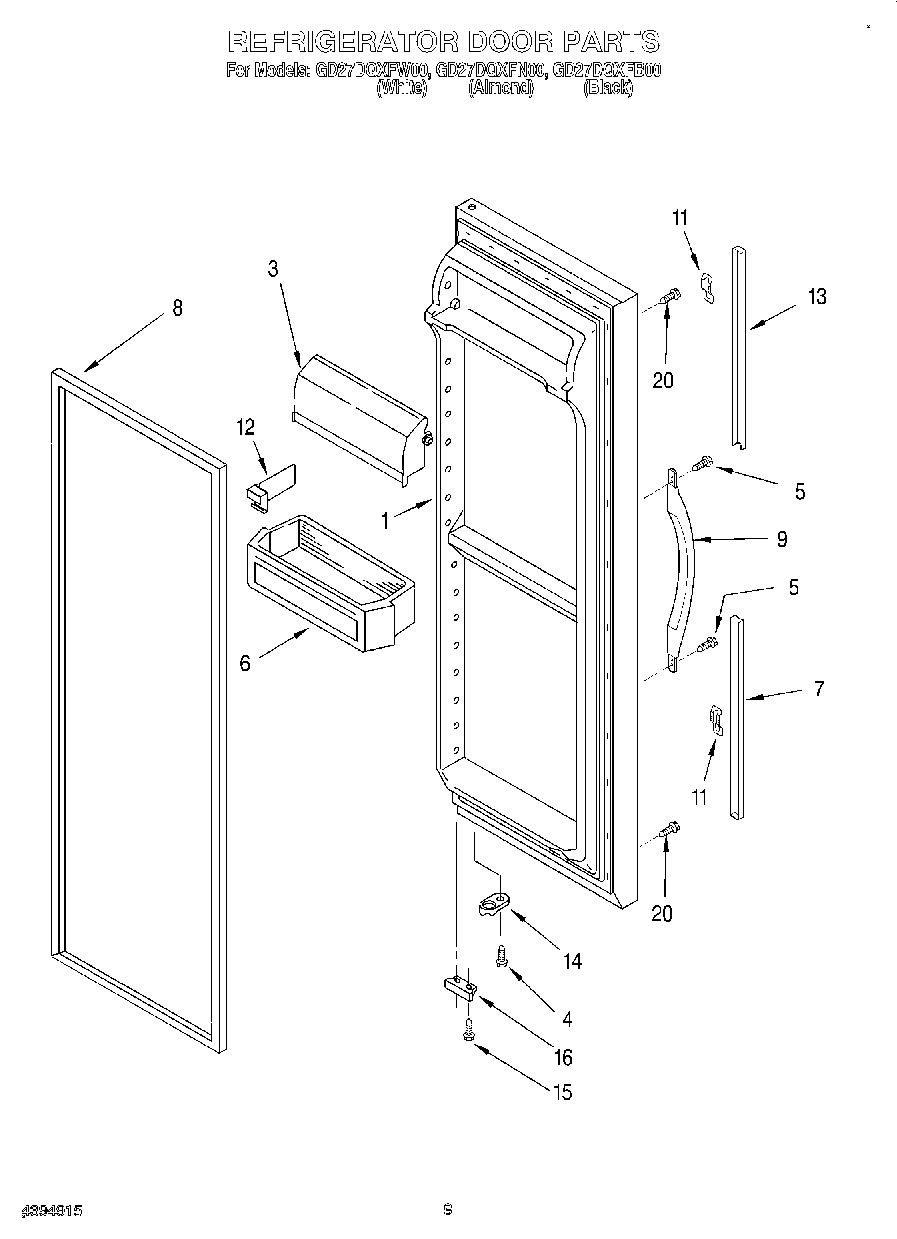

GD27DQXFW00 06 – REFRIGERATOR DOOR

GD27DQXFW00 06 – REFRIGERATOR DOOR

Written by

in

GD27DQXFW00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.8) (Almond)
1Refrigerator Door (Includes Item No.8) (Black)
1Refrigerator Door (Includes Item No.8) (White)
3WP2256101 Whirlpool Dairy Door
4WP3400012 Whirlpool Refrigerator Screw
5WP489491 Whirlpool Refrigerator Screw
6WP2203872 Whirlpool Refrigerator Cantilever Bin
7WP2194969B Whirlpool Refrigerator Handle Trim
7Extension, Bottom (White)
7Extension, Bottom (Almond)
82159075 Whirlpool Door Gasket Seal
82159083 Whirlpool Gasket Door
9Handle, Center (Almond)
9Handle, Center (White)
9WP2186649B Whirlpool Refrigerator Handle
11WP2195327 Whirlpool Refrigerator Clip
12Divider, Bin
13Extension, Top (Almond)
13Extension, Top (Black)
13WP2194973W Whirlpool Door Trim
144318165 Whirlpool Refrigerator Door Closure Cam Kit
15WP489483 Whirlpool Screw
16Bracket, Door Stop (Chrome)
16Bracket, Door Stop (Black)
20WP3400852 Whirlpool Refrigerator Screw
