GD2NHGXKB02 12 – CONTROL

GD2NHGXKB02 12 – CONTROL

Written by

in

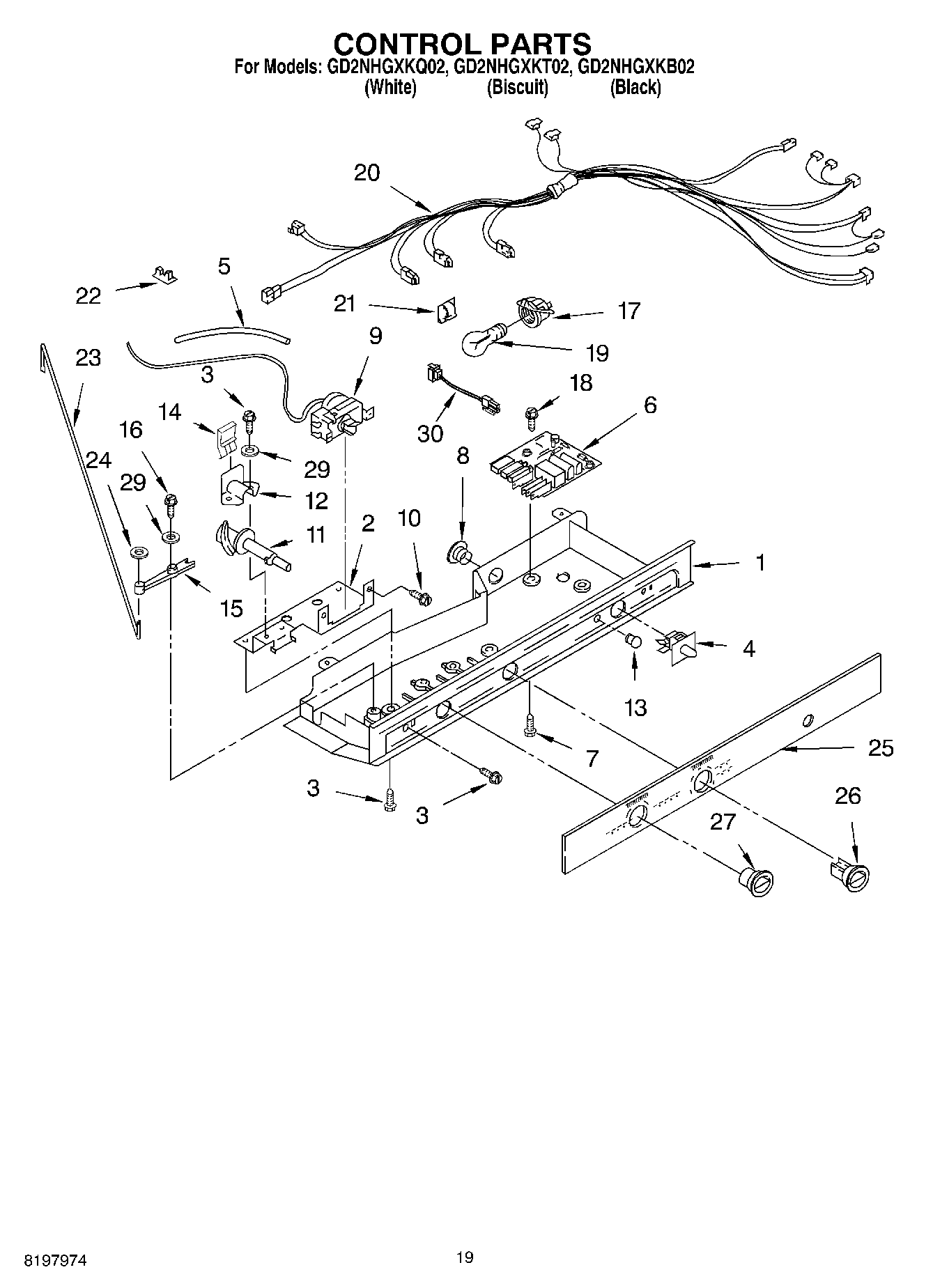

GD2NHGXKB02 12 – CONTROL

Products

Position	Product
1	Control Box
2	Mounting Bracket
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
13	COVER, LIGHT LENS
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	489392 Whirlpool Refrigerator Screw
19	RANGE ONLY 40W 120V APPL BULB
20	2311632 Whirlpool Refrigerator Wire Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	2182111 Whirlpool Refrigerator Thermal Knob
27	Knob, Air Control
29	489203 Whirlpool Refrigerator Washer
30	350930 Whirlpool White Spray Paint
30	WPW10312301 Whirlpool Refrigerator Ice Container
30	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
30	72032 Whirlpool Touch Up Paint Black
30	285006 Whirlpool Spray
30	W10853646 Whirlpool Indicator Light
30	511873 Whirlpool Refrigerator Paint
30	4392901 Whirlpool Biscuit Spray Paint
30	4392899 Whirlpool Biscuit Touch-Up Paint
30	350942 Whirlpool Spray Paint
30	212643 Whirlpool Refrigerator Permagum Sealer
30	Almond (Uncut)
30	WP72107 Whirlpool Touchup
30	799344 Whirlpool Refrigerator Paint
30	72017 Whirlpool Appliance Touch-Up Paint White
30	606755 Whirlpool Refrigerator Bag
30	833938 Whirlpool Refrigerator Terminal
30	876370 Whirlpool Refrigerator Insulation
30	WPL 876029
30	WPL 799833
30	Enamel, Black (1 Qt. Uncut)
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	TAPE, VINYL (3/4 X 108“)
30	Torx Key
30	WP542638 Whirlpool Refrigerator Grease
30	WP505587 Whirlpool Refrigerator Sealer
30	WP503695 Whirlpool Refrigerator Sealer
30	350956 Whirlpool Spray Assembly
