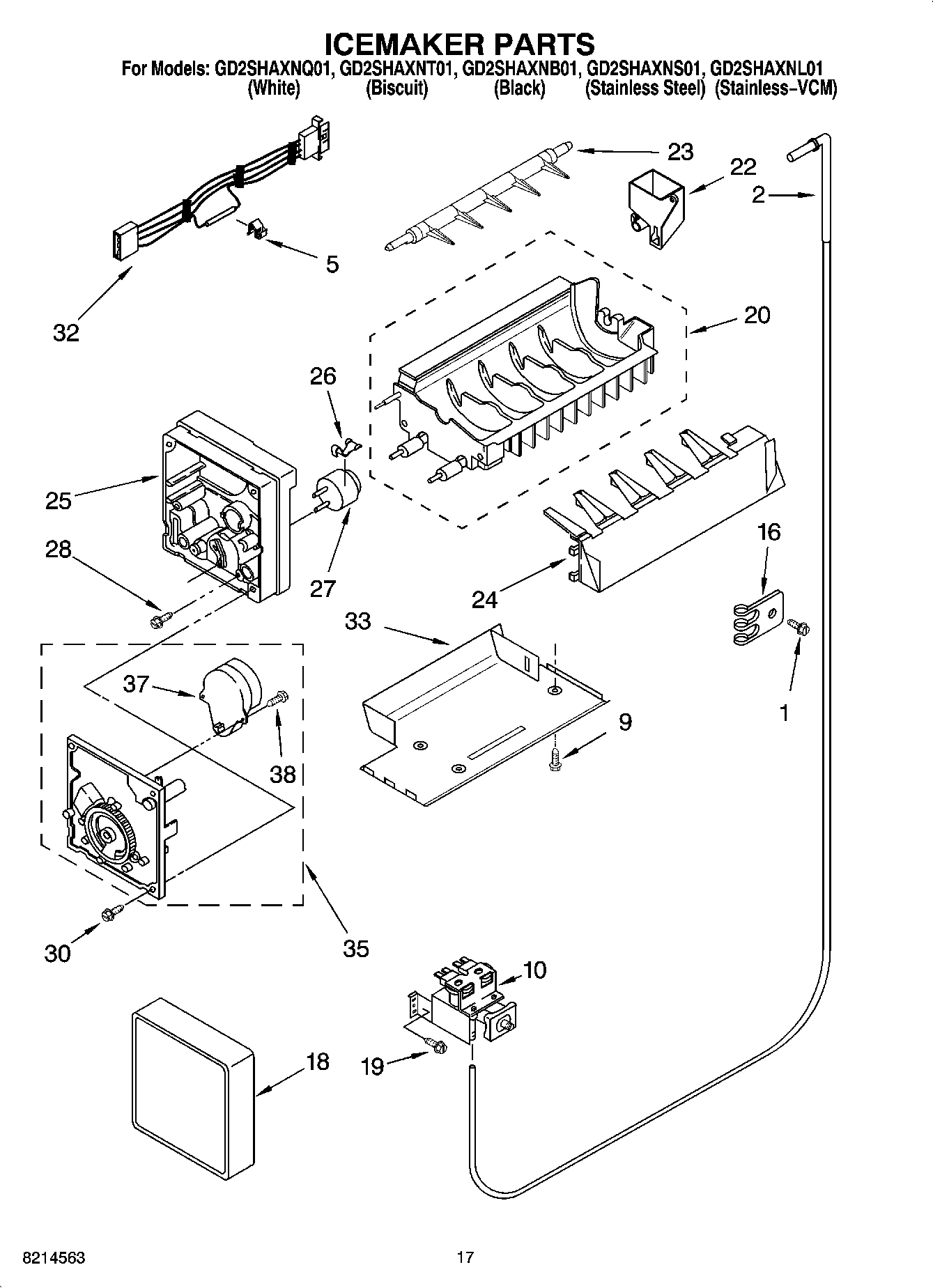

GD2SHAXNT01 10 – ICEMAKER PARTS

Products

Position	Product
2	WP2256096 Whirlpool Refrigerator Fitting
5	WP628379 Whirlpool Refrigerator Clip
9	WP489478 Whirlpool Refrigerator Screw
10	W10822681 Whirlpool Refrigerator Water Inlet Valve
16	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10122550 Whirlpool Refrigerator Ice Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	626753 Whirlpool Refrigerator Ejector Arm
24	W10297245 Whirlpool Refrigerator Arm Stripper
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
32	WPW10309401 Whirlpool Refrigerator Wire Harness
33	Bracket, Icemaker Mounting
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
37	Motor (Not Serviced, Order Item 35)
38	489136 Whirlpool Refrigerator Screw
100	WPW10190961 Whirlpool Ice Maker
