GD2SHGXKB01 12 – CONTROL

GD2SHGXKB01 12 – CONTROL

Written by

in

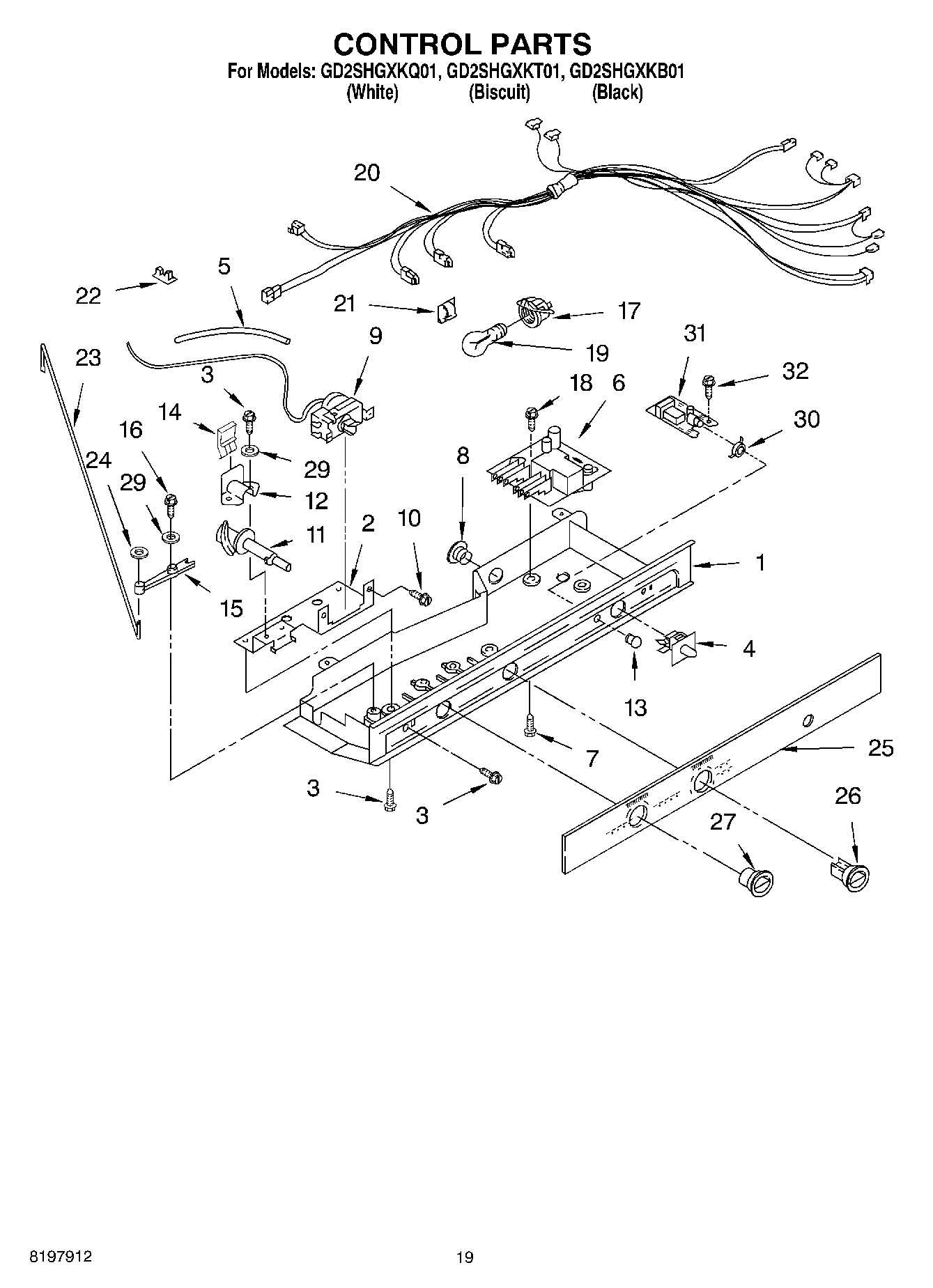

GD2SHGXKB01 12 – CONTROL

Products

Position	Product
1	Control Box
2	Mounting Bracket
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
13	COVER, LIGHT LENS
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	489392 Whirlpool Refrigerator Screw
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	2182111 Whirlpool Refrigerator Thermal Knob
27	Knob, Air Control
29	489203 Whirlpool Refrigerator Washer
30	Retainer, Light Lens
31	P.C. Board Filter Indicator
32	WPL 799833
32	4392899 Whirlpool Biscuit Touch-Up Paint
32	350942 Whirlpool Spray Paint
32	212643 Whirlpool Refrigerator Permagum Sealer
32	Almond (Uncut)
32	2006254 Whirlpool Refrigerator Screw
32	350930 Whirlpool White Spray Paint
32	WPW10312301 Whirlpool Refrigerator Ice Container
32	WP72107 Whirlpool Touchup
32	799344 Whirlpool Refrigerator Paint
32	72017 Whirlpool Appliance Touch-Up Paint White
32	4392901 Whirlpool Biscuit Spray Paint
32	511873 Whirlpool Refrigerator Paint
32	606755 Whirlpool Refrigerator Bag
32	WPL 876029
32	Enamel, Black (1 Qt. Uncut)
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	285006 Whirlpool Spray
32	72032 Whirlpool Touch Up Paint Black
32	TAPE, VINYL (3/4 X 108“)
32	Torx Key
32	WP542638 Whirlpool Refrigerator Grease
32	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
32	WP505587 Whirlpool Refrigerator Sealer
32	WP503695 Whirlpool Refrigerator Sealer
32	876370 Whirlpool Refrigerator Insulation
32	833938 Whirlpool Refrigerator Terminal
32	350956 Whirlpool Spray Assembly
