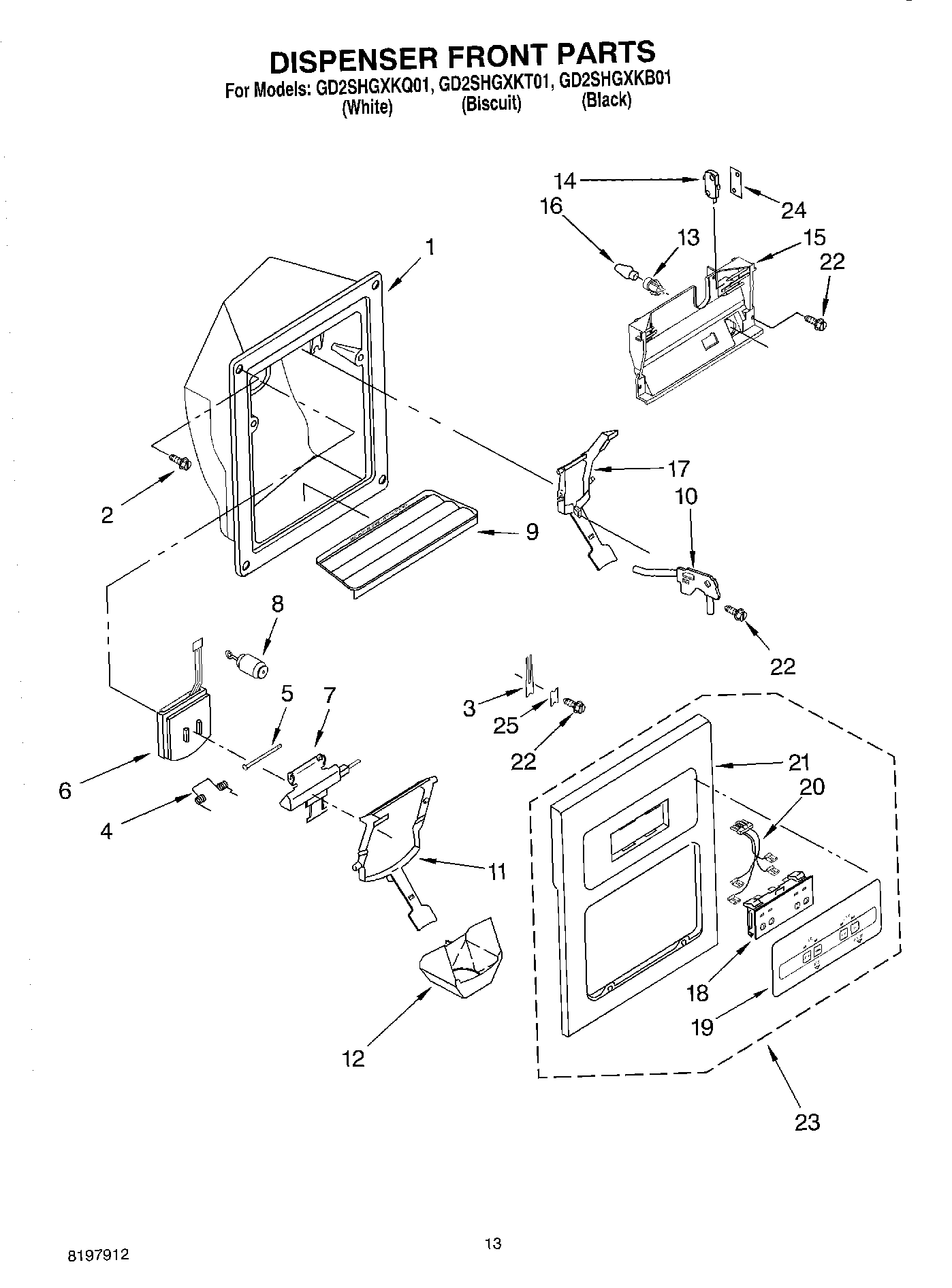

GD2SHGXKT01 09 – DISPENSER FRONT

Products

Position	Product
1	Housing, Dispenser (Not a Serviceable Part)
2	WP3196175 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206671W Whirlpool Refrigerator Grille
9	Grille, Overflow (Biscuit)
9	WP2206671B Whirlpool Refrigerator Grille
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (White)
11	Lever, Ice Dispenser (Black)
11	Lever, Ice Dispenser (Biscuit)
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2180200 Whirlpool Refrigerator Socket
14	WP2162361 Whirlpool Switch
15	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16	WP22002263 Whirlpool Dryer 10W Light Bulb
17	WPW10152858 Whirlpool Refrigerator Dispenser Arm
17	Lever, Water Dispenser (Biscuit)
18	Switch Assembly (Not Available, Order No.23)
19	Overlay, Front Cover (Not Available, Order No.23)
20	Wire Assembly
21	Front Cover, Housing (Not Available, Order No.23)
22	WP3400906 Whirlpool Refrigerator Screw
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Biscuit)
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
24	Spacer, Switch (2)
25	WP2195051 Whirlpool Refrigerator Clip
