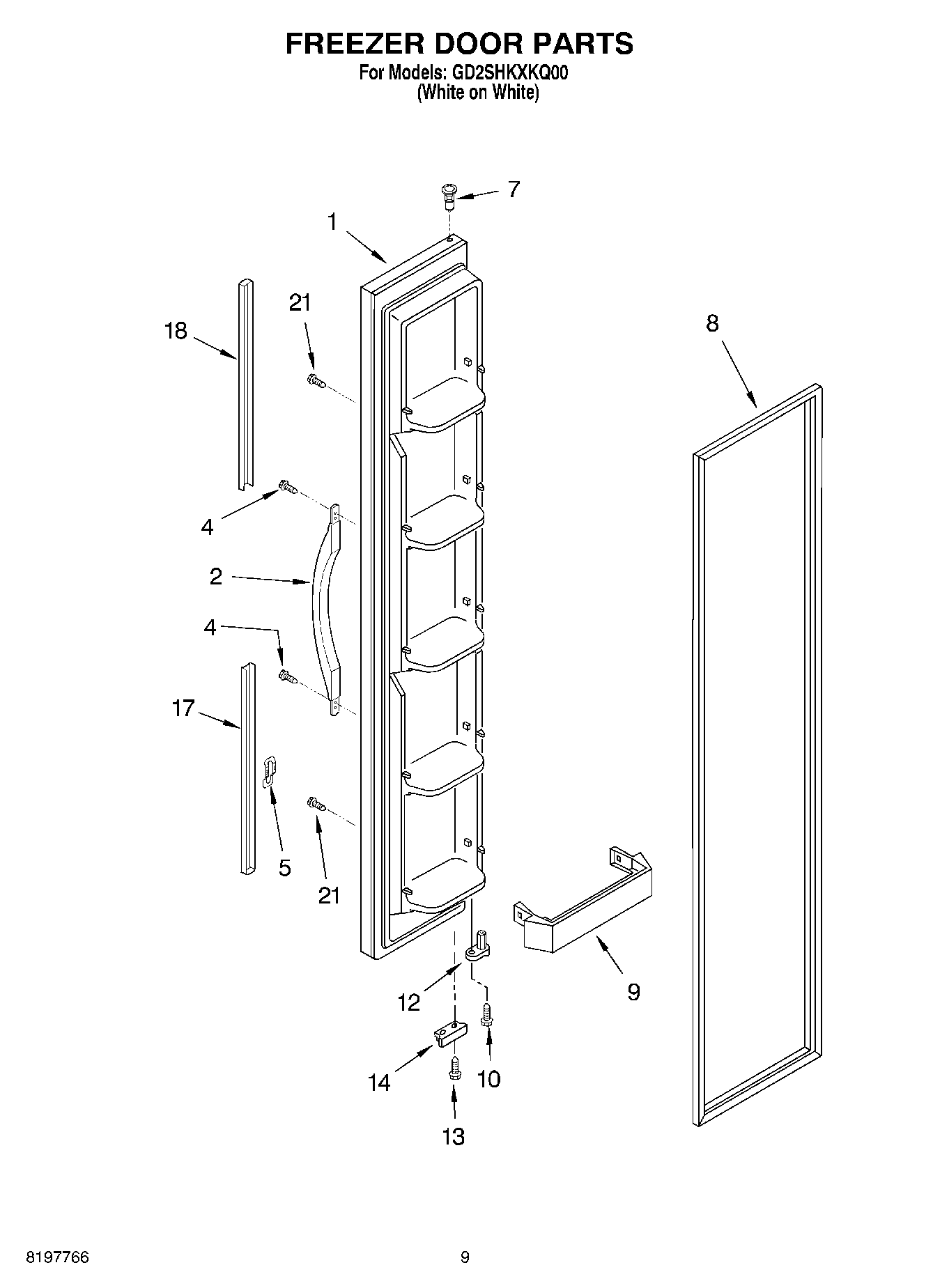

GD2SHKXKQ00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item No.8)
2Handle, Center (White)
4WP489491 Whirlpool Refrigerator Screw
5WP2195327 Whirlpool Refrigerator Clip
7WP2182181 Whirlpool Refrigerator Thimble
82159072 Whirlpool Refrigerator FIP Gasket
9WP2156021 Whirlpool Refrigerator Door Trim
10WP3400012 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
17Extension, Bottom (White)
18Extension, Top (White)
21WP3400852 Whirlpool Refrigerator Screw
