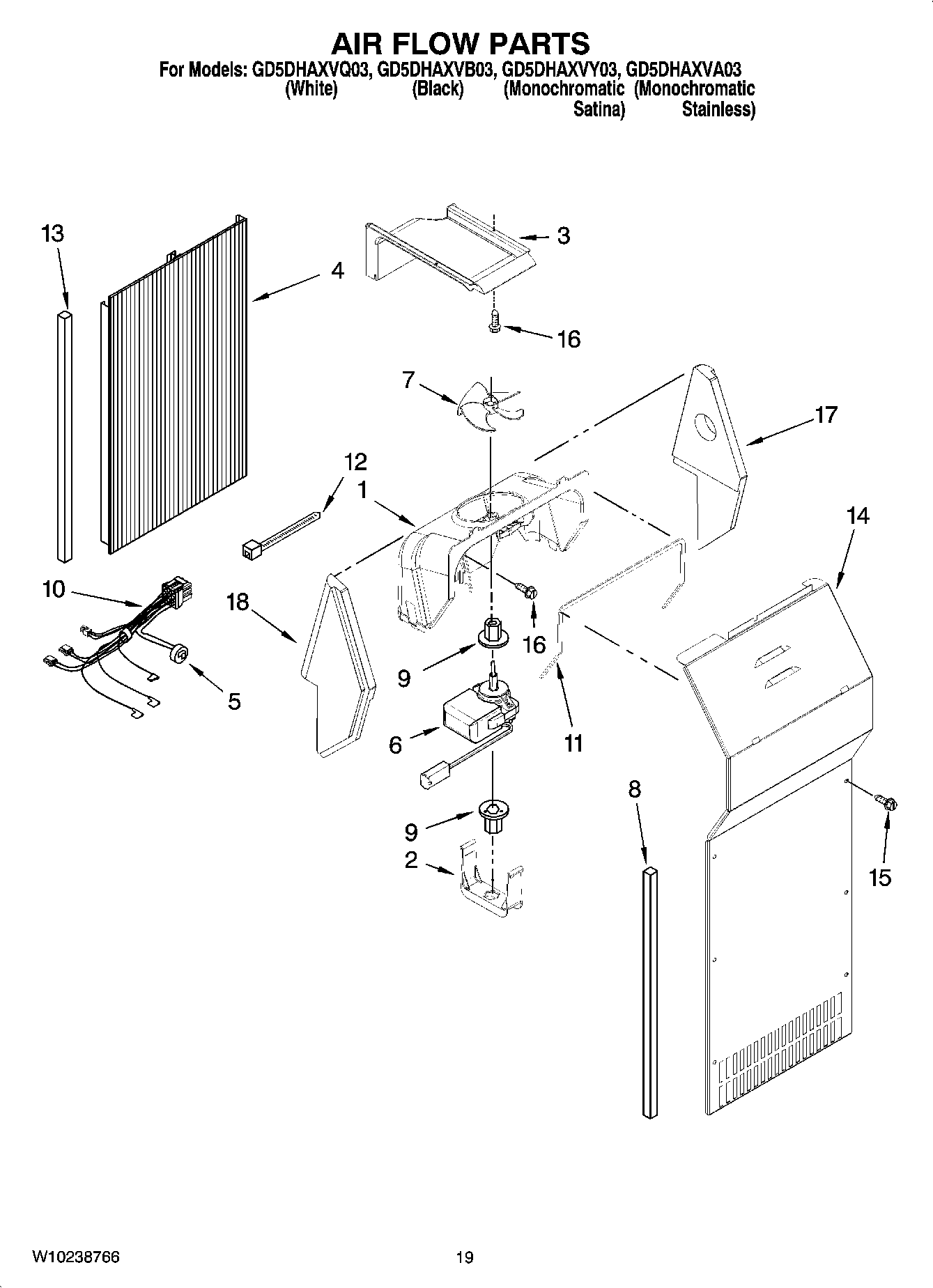

GD5DHAXVA03 11 – AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
PAINT, BULK (1 QT. GRAPHITE)
WPL ARI62739A1
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI62738A2
I
CLEANER, (STAINLESS STEEL)
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI62740A5
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
WP542638 Whirlpool Refrigerator Grease
4210463RW Whirlpool Refrigerator Coil Brush
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
32313359 Whirlpool Refrigerator Air Duct
4Air Duct Freezer
5WPW10225581 Whirlpool Refrigerator Defrost Thermostat
64389144 Whirlpool Refrigerator Evaporator Fan Motor
7WP2169142 Whirlpool Fan Blade
8WP2304241 Whirlpool Refrigerator Gasket
9WP2176759 Whirlpool Refrigerator Grommet
10Harness, Fan Evaporator (Includes 5)
11WP2155789 Whirlpool Refrigerator Gasket
12WPW10339879 Whirlpool Wire Tie
134388500 Whirlpool Refrigerator Gasket
14Cover, Evaporator (Includes 9)
154389654 Whirlpool Screw
16WP489478 Whirlpool Refrigerator Screw
174388358 Whirlpool Refrigerator Support Bracket
