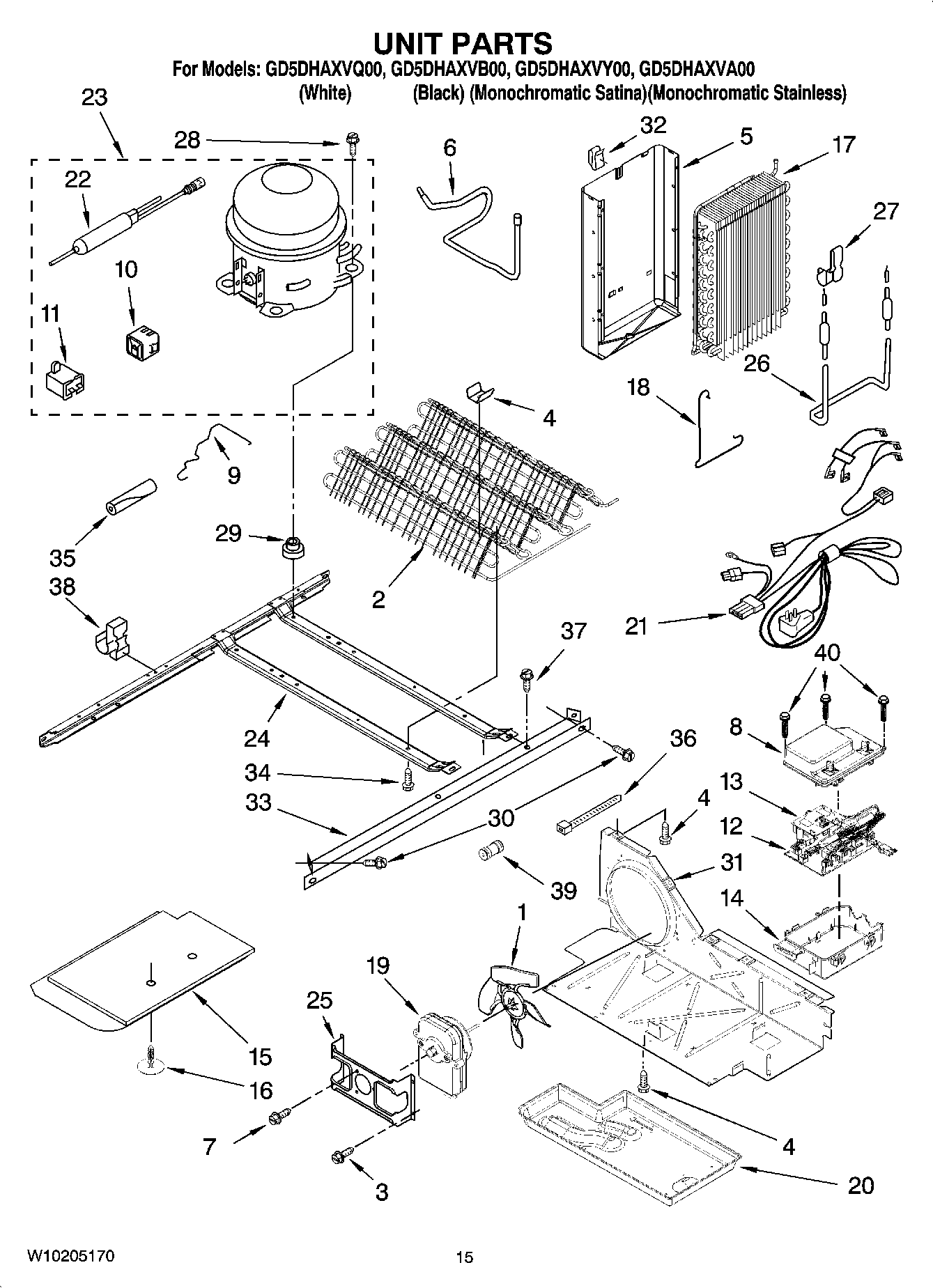

GD5DHAXVB00 09 – UNIT PARTS

Products

Position	Product
	978027 Whirlpool Refrigerator Primary Valve
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	VALVE, ACCESS (5/8“)
	VALVE, ACCESS (1/2“)
1	W10156818 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
3	WP489464 Whirlpool Refrigerator Screw
4	W10683556 Whirlpool Refrigerator Clip
5	Heat Shield
6	WP2205765 Whirlpool Refrigerator Tube
7	WP8533993 Whirlpool Refrigerator Screw
8	2323188 Whirlpool Refrigerator Cover
9	Clip, Retaining
10	W10896198 Whirlpool Refrigerator Start Device
11	WPW10662129 Whirlpool Refrigerator Run Capacitor
12	WPW10120818 Whirlpool Refrigerator Electronic Control Board
13	WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
14	2323186 Whirlpool Refrigerator Housing
15	Unit Cover, Bottom
16	489396 Whirlpool Refrigerator Clip
17	WP2188823 Whirlpool Refrigerator Evaporator
18	Clamp
19	WP2188874 Whirlpool Refrigerator Condenser Motor
20	WPW10614158 Whirlpool Refrigerator Evaporator Tray
21	WPW10291106 Whirlpool Refrigerator Wire Harness
22	WPW10143759 Whirlpool Dryer Filter
23	W10139462 Whirlpool Refrigerator Compressor
24	2304904 Whirlpool Frame Assembly
25	WP2181929 Whirlpool Refrigerator Bracket
26	WP2323198 Whirlpool Refrigerator Heater
27	W11623163 Whirlpool Refrigerator Clip
29	876811 Whirlpool Grommet
29	WP4387558 Whirlpool Refrigerator Compressor Grommet
30	489340 Whirlpool Refrigerator Screw
31	W10896764 Whirlpool Refrigerator Air Baffle
32	Clip, Heat Shield
33	2305374 Whirlpool Refrigerator Unit Rail
34	W11544659 Whirlpool Refrigerator Screw
35	SLEEVE
36	WPW10339879 Whirlpool Wire Tie
37	WP489427 Whirlpool Refrigerator Screw
38	W10169512 Whirlpool Clip
39	WPW10334458 Whirlpool Refrigerator Connector
40	WPW10171469 Whirlpool Refrigerator Screw
