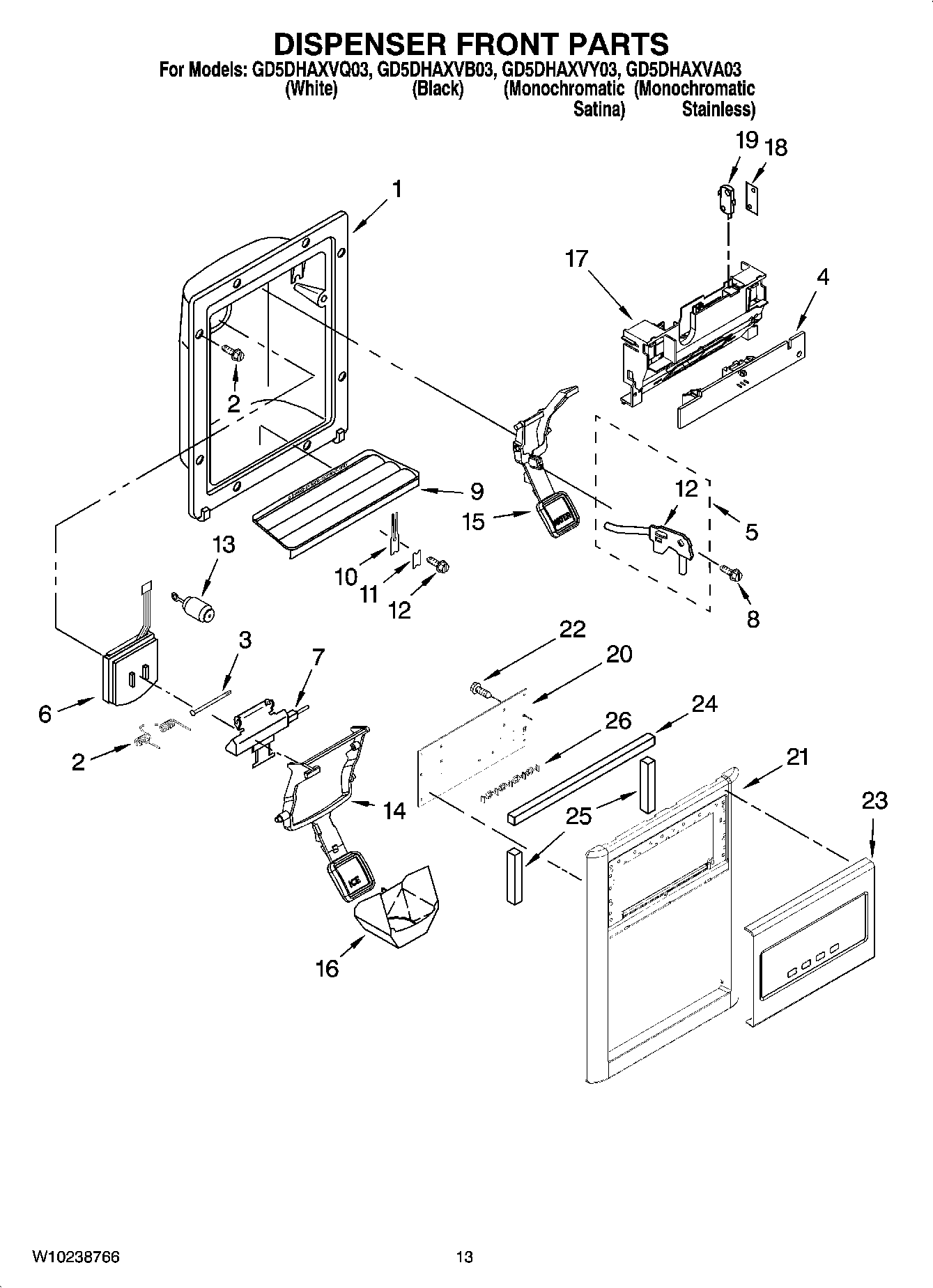

GD5DHAXVB03 08 – DISPENSER FRONT PARTSadmin2025-04-26T10:58:16+00:00GD5DHAXVB03 08 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| 1 | Housing Dispenser (Not Serviced) |
| 2 | WPW10224328 Whirlpool Refrigerator Spring |
| 3 | WP2196195 Whirlpool Refrigerator Door Pin |
| 4 | LED Assy |
| 5 | 8201537 Whirlpool Water Tubing Assembly |
| 6 | WP2180353 Whirlpool Dispenser Door |
| 7 | Door Mechanism Assembly |
| 8 | WP3400906 Whirlpool Refrigerator Screw |
| 9 | WP2206670W Whirlpool Dispenser Tray |
| 9 | WP2206670B Whirlpool Dispenser Tray |
| 10 | WP2194719 Whirlpool Refrigerator Clip |
| 11 | WP2195051 Whirlpool Refrigerator Clip |
| 12 | WP2304673 Whirlpool Refrigerator Bracket |
| 13 | Delay Mechanism |
| 14 | WPW10152853 Whirlpool Refrigerator Dispenser Arm |
| 14 | WPW10152854 Whirlpool Refrigerator Dispenser Arm |
| 14 | W10155161 Whirlpool Refrigerator Dispenser Arm |
| 15 | WPW10152859 Whirlpool Refrigerator Dispenser Arm |
| 15 | WPW10152858 Whirlpool Refrigerator Dispenser Arm |
| 15 | Lever, Water Dispenser (Apollo Grey) |
| 16 | WP2180224 Whirlpool Dispenser Funnel Guide |
| 17 | W10728484 Whirlpool Refrigerator Dispenser Control Bracket |
| 18 | Spacer, Switch (2) |
| 19 | WP2162361 Whirlpool Switch |
| 20 | Control, Elek |
| 21 | Bezel, Disp (Mono Satina (SS)) |
| 21 | Bezel, Disp (Black) |
| 21 | W10171988 Whirlpool Refrigerator Front Cover |
| 21 | W10136850 Whirlpool Refrigerator Front Cover |
| 22 | 2006254 Whirlpool Refrigerator Screw |
| 23 | Fascia, Disp (Black) |
| 23 | Fascia, Disp (Mono Satina) |
| 23 | Fascia, Disp (Mono Stainless) |
| 23 | Fascia, Disp (White) |
| 24 | 2305571 Whirlpool Gasket Assembly |
| 25 | Gasket, Disp (2) |
| 26 | Support, Window |
