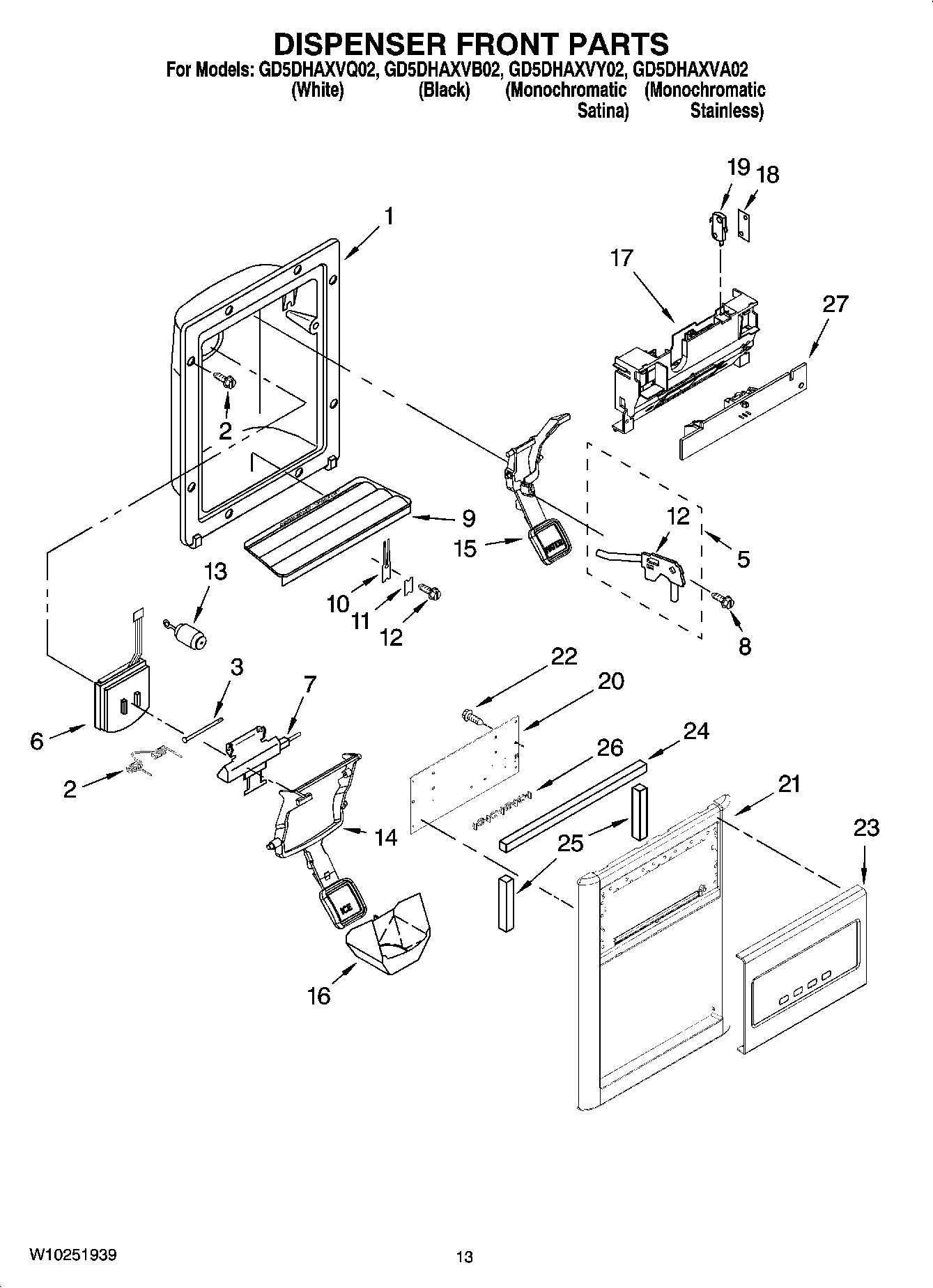

GD5DHAXVY02 08 – DISPENSER FRONT PARTS

GD5DHAXVY02 08 – DISPENSER FRONT PARTS

Written by

in

GD5DHAXVY02 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2WPW10224328 Whirlpool Refrigerator Spring
3WP2196195 Whirlpool Refrigerator Door Pin
58201537 Whirlpool Water Tubing Assembly
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8WP3400906 Whirlpool Refrigerator Screw
9WP2206670W Whirlpool Dispenser Tray
9WP2206670B Whirlpool Dispenser Tray
10WP2194719 Whirlpool Refrigerator Clip
11WP2195051 Whirlpool Refrigerator Clip
12WP2304673 Whirlpool Refrigerator Bracket
13Delay Mechanism
14WPW10152853 Whirlpool Refrigerator Dispenser Arm
14W10155161 Whirlpool Refrigerator Dispenser Arm
14WPW10152854 Whirlpool Refrigerator Dispenser Arm
15WPW10152858 Whirlpool Refrigerator Dispenser Arm
15WPW10152859 Whirlpool Refrigerator Dispenser Arm
15Lever, Water Dispenser (Apollo Grey)
16WP2180224 Whirlpool Dispenser Funnel Guide
17W10728484 Whirlpool Refrigerator Dispenser Control Bracket
18Spacer, Switch (2)
19WP2162361 Whirlpool Switch
20Control, Elek
21Bezel, Disp (Mono Satina (SS))
21Bezel, Disp (Black)
21W10171988 Whirlpool Refrigerator Front Cover
21W10136850 Whirlpool Refrigerator Front Cover
222006254 Whirlpool Refrigerator Screw
23Fascia, Disp (White)
23Fascia, Disp (Black)
23Fascia, Disp (Mono Satina)
23Fascia, Disp (Mono Stainless)
242305571 Whirlpool Gasket Assembly
25Gasket, Disp (2)
26Support, Window
27LED Assy
