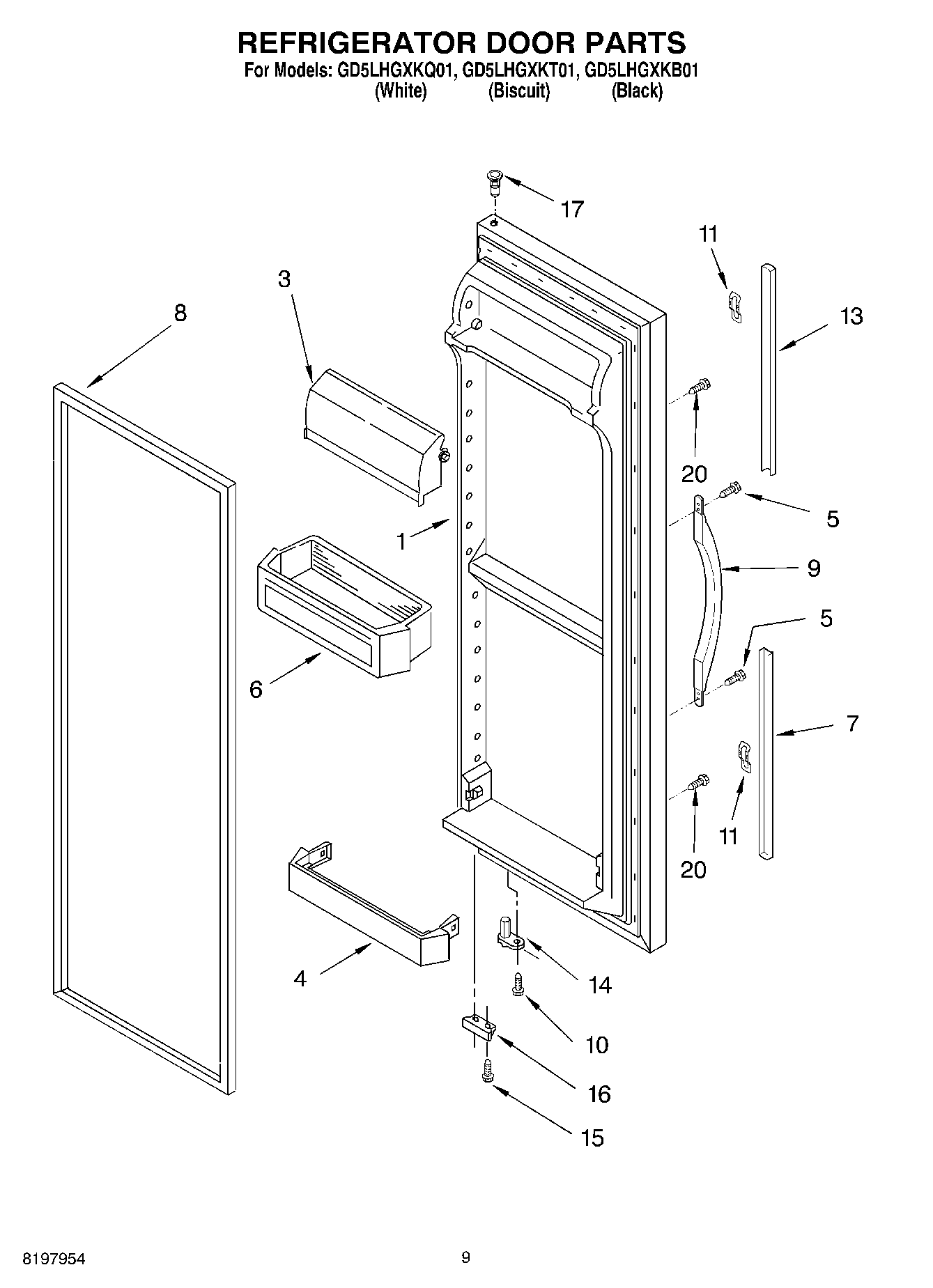

GD5LHGXKT01 06 – REFRIGERATOR DOOR

GD5LHGXKT01 06 – REFRIGERATOR DOOR

Written by

in

GD5LHGXKT01 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
1Refrigerator Door (Includes Item 6) (Biscuit)
1Refrigerator Door (Includes Item 6) (Black)
3WP2256101 Whirlpool Dairy Door
4WP2177962K Whirlpool Refrigerator Door Trim
5WP489491 Whirlpool Refrigerator Screw
6WP2187172 Whirlpool Refrigerator Door Shelf Bin
7Extension, Bottom (White)
7WP2194969B Whirlpool Refrigerator Handle Trim
7Extension, Bottom (Biscuit)
82159083 Whirlpool Gasket Door
82159075 Whirlpool Door Gasket Seal
9WP2186649B Whirlpool Refrigerator Handle
9Handle, Center (Biscuit)
9Handle, Center (White)
10WP3400012 Whirlpool Refrigerator Screw
11WP2195327 Whirlpool Refrigerator Clip
13Extension, Top (Biscuit)
13Extension, Top (Black)
13WP2194973W Whirlpool Door Trim
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16WP2206629B Whirlpool Refrigerator Bracket
17WP2182181 Whirlpool Refrigerator Thimble
20WP3400852 Whirlpool Refrigerator Screw
