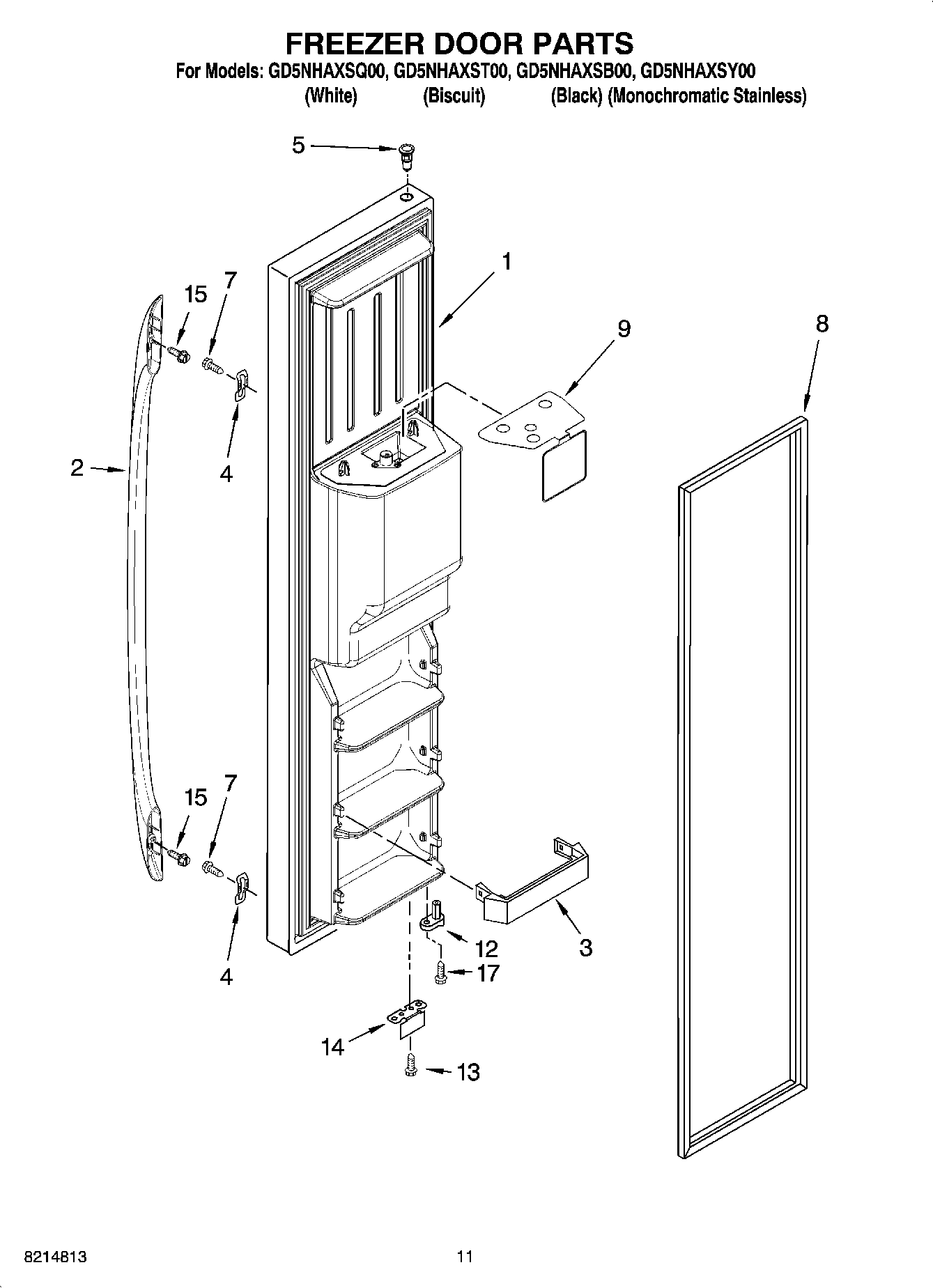

GD5NHAXSY00 07 – FREEZER DOOR PARTS

GD5NHAXSY00 07 – FREEZER DOOR PARTS

Written by

in

GD5NHAXSY00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
2Handle (Biscuit)
2Handle (White)
2Handle (Universal Silver)
2Handle (Black)
3WP2171157 Whirlpool Shelf Trim
4WP2255411 Whirlpool Refrigerator Clip
5WP2182181 Whirlpool Refrigerator Thimble
7WP489491 Whirlpool Refrigerator Screw
82159082 Whirlpool Freezer Door Gasket Black
82159074 Whirlpool Door Gasket Seal
9Safety Barrier
12WP2223752 Whirlpool Refrigerator Door Cam
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Black)
14Bracket, Door Stop (Chrome)
15SCREW
17Wire Assembly, Freezer Door
17Tube, Water Dispenser
17Following Parts Not Illustrated
17WP3400012 Whirlpool Refrigerator Screw
