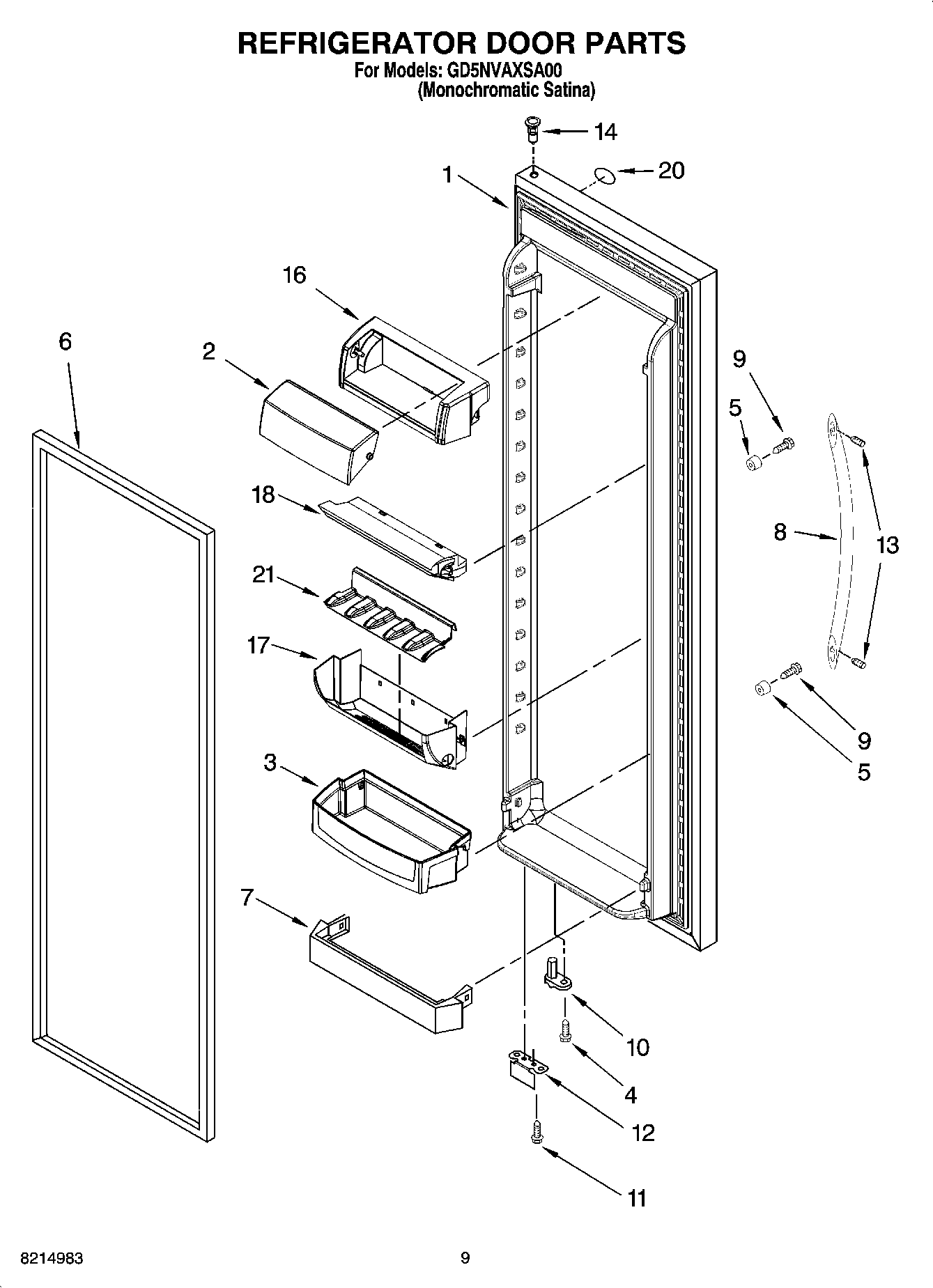

GD5NVAXSA00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Monochromatic Satina)
2	Dairy Door
3	Door Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
5	WPW10170540 Whirlpool Screw
6	2159075 Whirlpool Door Gasket Seal
7	WP2318736 Whirlpool Refrigerator Door Trim
8	Handle (Includes 13) (Stainless)
9	WP488163 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	WP2206629B Whirlpool Refrigerator Bracket
13	SCREW
14	WP2182181 Whirlpool Refrigerator Thimble
16	Door Compartment
17	Frame, Can Rack
18	Air Diffuser Asm
20	Nameplate
21	Floor, Can Rack
