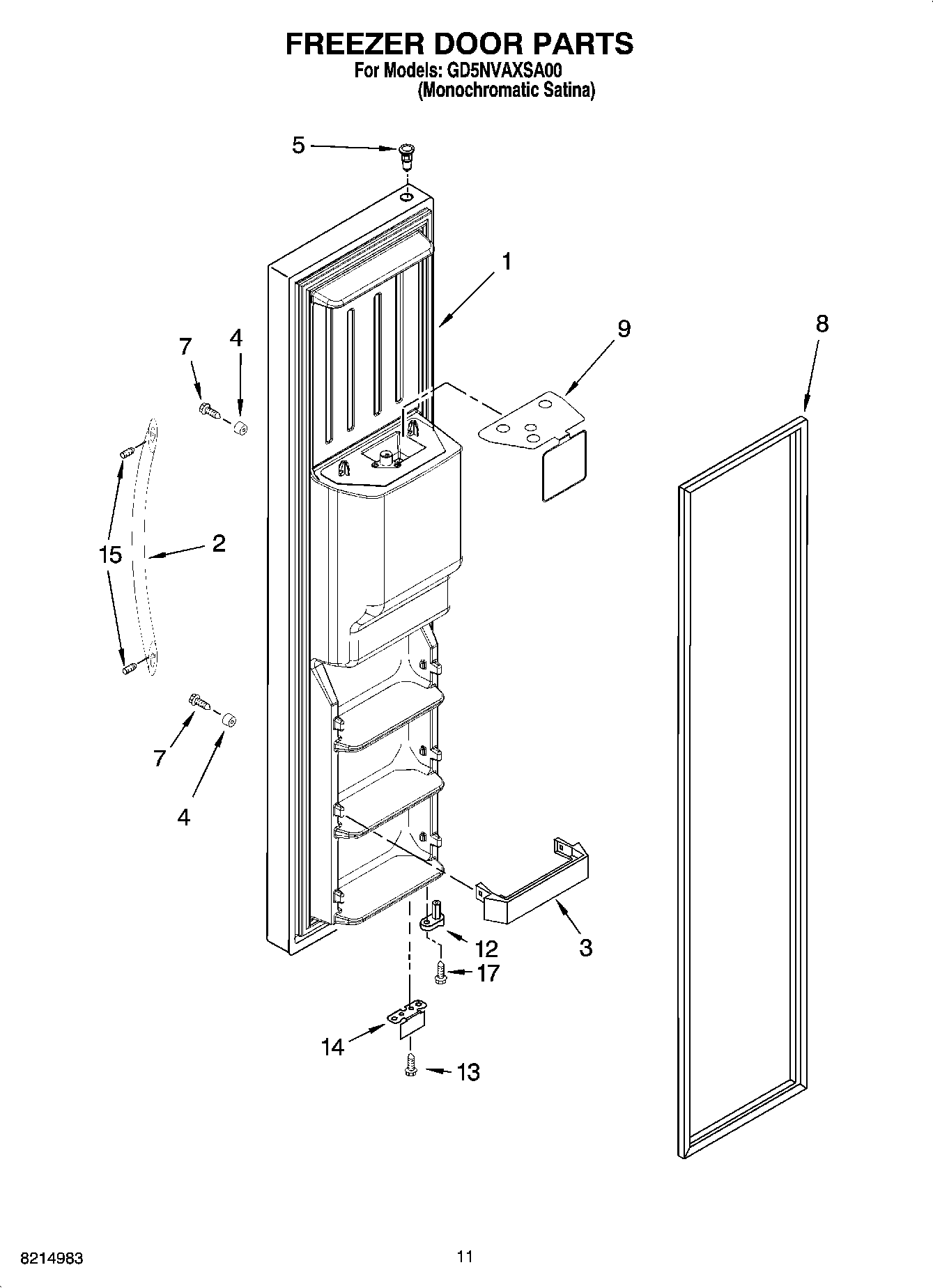

GD5NVAXSA00 07 – FREEZER DOOR PARTS

GD5NVAXSA00 07 – FREEZER DOOR PARTS

Written by

in

GD5NVAXSA00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Satina)
2Handle (Includes 13) (Stainless)
3WP2171157 Whirlpool Shelf Trim
4WPW10170540 Whirlpool Screw
5WP2182181 Whirlpool Refrigerator Thimble
7WP488163 Whirlpool Refrigerator Screw
82159074 Whirlpool Door Gasket Seal
9Safety Barrier
12WP2223752 Whirlpool Refrigerator Door Cam
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Chrome)
15SCREW
17WP3400012 Whirlpool Refrigerator Screw
17Tube, Water Dispenser
17Following Parts Not Illustrated
17Wire Assembly, Freezer Door
