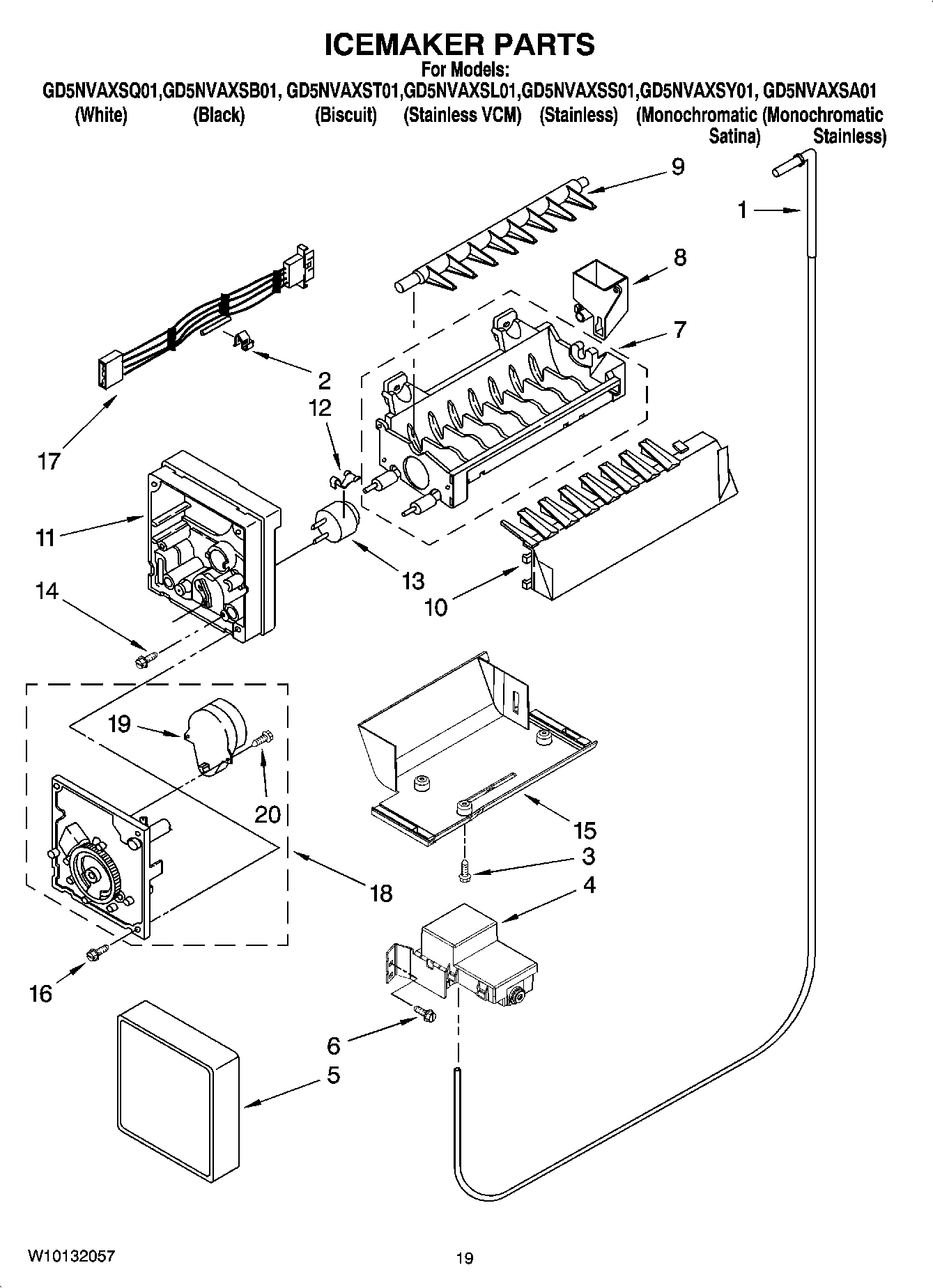

GD5NVAXSA01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

GD5NVAXSA01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GD5NVAXSA01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
285006 Whirlpool Spray
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
350942 Whirlpool Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI63112A6
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL ARI63111A8
WPL ARI63110A5
PAINT, BULK (1 QT. GRAPHITE)
CLEANER, (STAINLESS STEEL)
4210463RW Whirlpool Refrigerator Coil Brush
72032 Whirlpool Touch Up Paint Black
WPL ARI63113A7
1WP2256096 Whirlpool Refrigerator Fitting
2WP628379 Whirlpool Refrigerator Clip
3WP489478 Whirlpool Refrigerator Screw
4WPW10159839 Whirlpool Refrigerator Inlet Valve
5WPW10289690 Whirlpool Ice Maker Cover
6WPW10141625 Whirlpool Refrigerator Screw Assembly
7WPW10190929 Whirlpool Refrigerator Ice Maker Mold
8WP628356 Whirlpool Refrigerator Fill Cup
9WP627843 Whirlpool Refrigerator Ejector Arm
10W10297244 Whirlpool Refrigerator Arm Strip
11WP2195914 Whirlpool Refrigerator Ice Maker Housing
12WP2315522 Whirlpool Refrigerator Clip
13WP627985 Whirlpool Icemaker Cycling Thermostat
148533917 Whirlpool Refrigerator Screw
15BRACKET, ICEMAKER MOUNTING
16WP681249 Whirlpool Screw Assembly
17WP2187467 Whirlpool Refrigerator Wire Harness
198201515 Whirlpool Refrigerator Motor and Gear Module Kit
20489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
