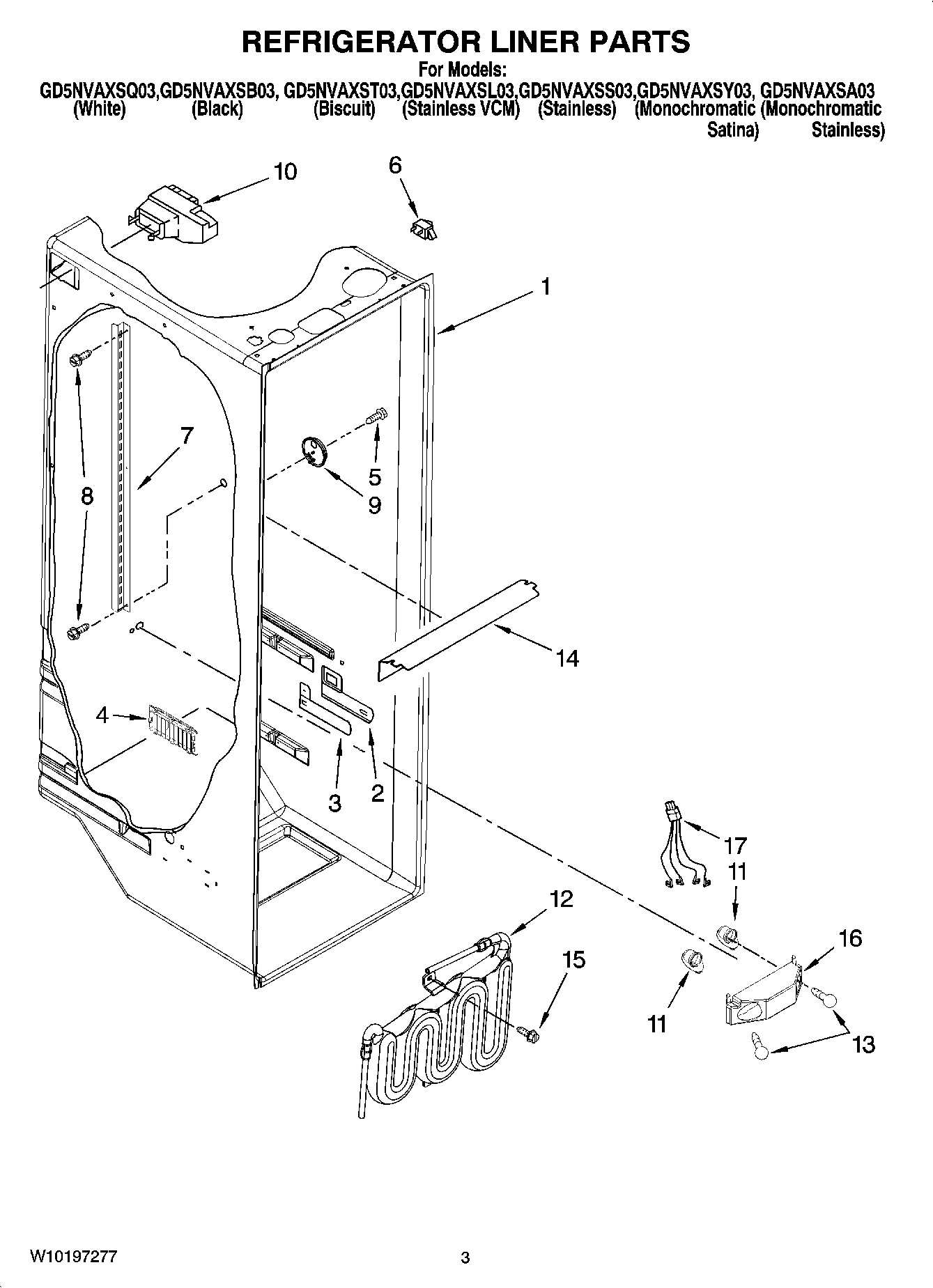

GD5NVAXSA03 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	W10759522 Whirlpool Screw
6	W11384469 Whirlpool Door Switch
7	Shelf Ladder
8	WP489478 Whirlpool Refrigerator Screw
9	Door Control Asm
10	WPW10151374 Whirlpool Refrigerator Diffuser
11	4387478 Whirlpool Refrigerator Light Socket
12	RESERVOIR
13	RANGE ONLY 40W 120V APPL BULB
14	Light Lens
15	Screw (2)
16	Bracket, Dual Crisper Light
17	2311637 Whirlpool Refrigerator Wire Harness
