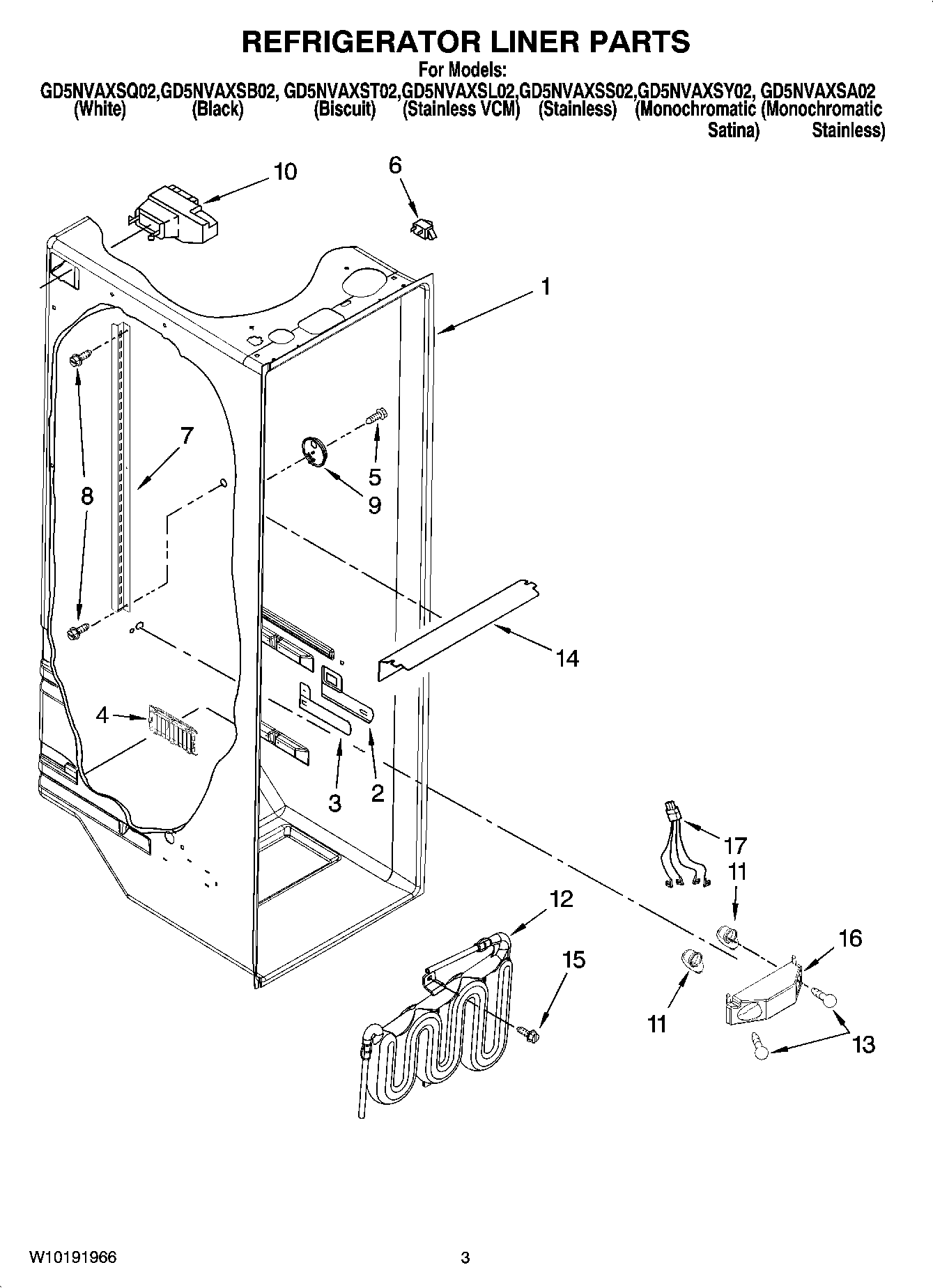

GD5NVAXSB02 02 – REFRIGERATOR LINER PARTS

GD5NVAXSB02 02 – REFRIGERATOR LINER PARTS

Written by

in

GD5NVAXSB02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W10759522 Whirlpool Screw
6W11384469 Whirlpool Door Switch
7Shelf Ladder
8WP489478 Whirlpool Refrigerator Screw
9Door Control Asm
10WPW10151374 Whirlpool Refrigerator Diffuser
114387478 Whirlpool Refrigerator Light Socket
12RESERVOIR
13RANGE ONLY 40W 120V APPL BULB
14Light Lens
15Screw (2)
16Bracket, Dual Crisper Light
172311637 Whirlpool Refrigerator Wire Harness
