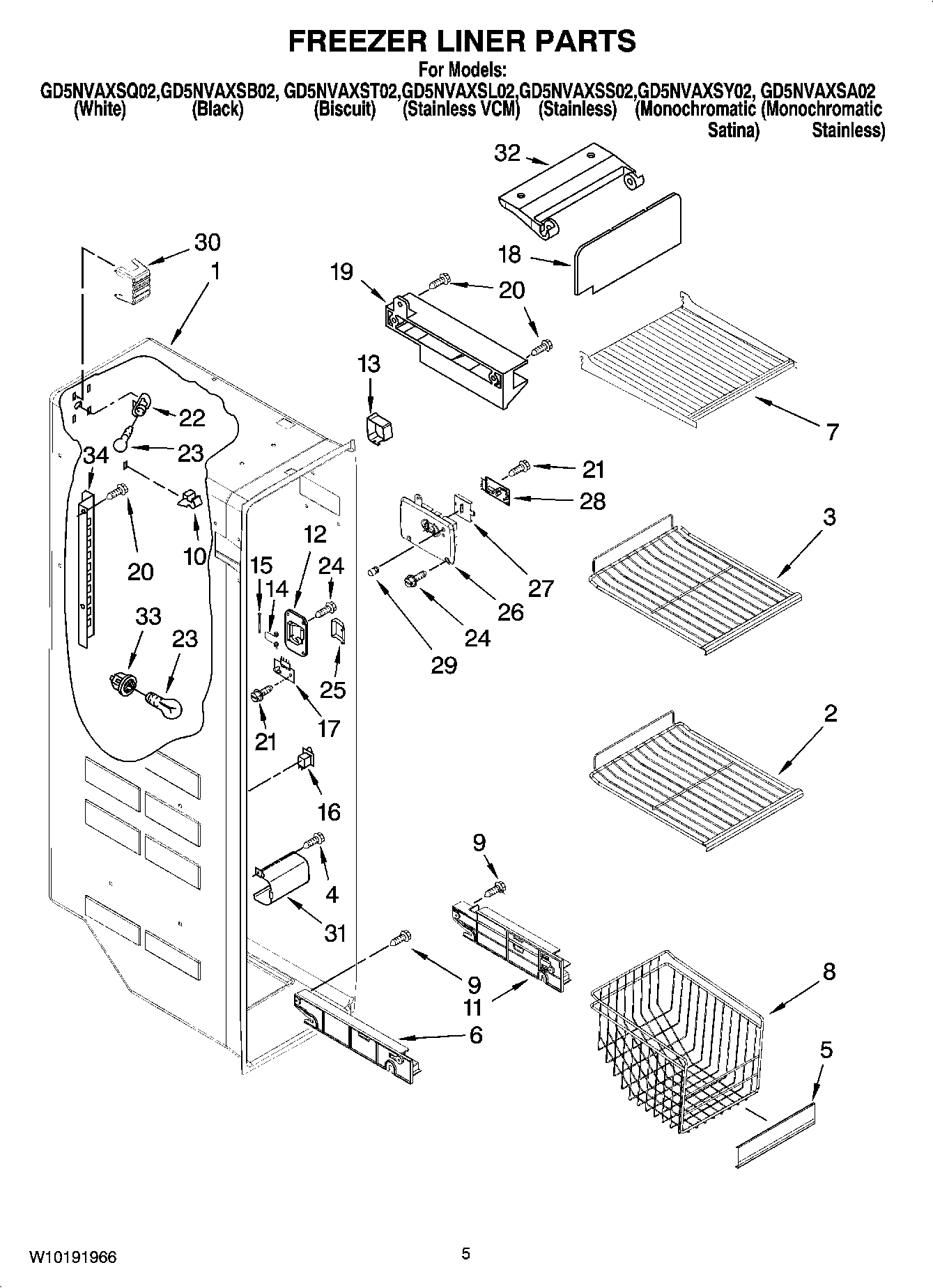

GD5NVAXSB02 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Shelf, Slide Out Upper
3	WPW10317556 Whirlpool Refrigerator Wire Shelf
4	W10142289 Whirlpool Air Conditioner Screw
5	Trim, Basket
6	Shelf Track (Right Side)
6	Shelf Track (Left Side)
7	Shelf (2)
8	Basket, Sloped
9	W10759522 Whirlpool Screw
10	2215823 Whirlpool Refrigerator Clip
11	2301291 Whirlpool Refrigerator Track
11	2301292 Whirlpool Refrigerator Track
12	WP2198587 Whirlpool Refrigerator Cover
13	Shield, Wiring
14	WP2198635 Whirlpool Refrigerator Spring
15	WP2198634 Whirlpool Door Pin
16	W11457217 Whirlpool Refrigerator Rocker Switch Combination
17	W10757851-includeCORE Whirlpool Electronic Control+Core
18	WP2255720 Whirlpool Refrigerator Ice Maker Door
19	Slide, Ice Maker
20	WP489478 Whirlpool Refrigerator Screw
21	2006254 Whirlpool Refrigerator Screw
22	4387478 Whirlpool Refrigerator Light Socket
23	RANGE ONLY 40W 120V APPL BULB
24	WPW10142283 Whirlpool Refrigerator Screw
25	WP2198633 Whirlpool Refrigerator Flipper
26	Cover, Receiver
27	2315398 Whirlpool Refrigerator Slide
29	WP2198643 Whirlpool Refrigerator Lens
30	Light Shield
31	Light Lens
32	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
33	SOCKET
34	Ladder (Left Side)
34	Ladder (Right Side)
